• Condition：New
• Dimension:4180X850X1700：Weight:2500kg
• Transport Package：Wooden Cases
• Specification：GMP
• Trademark：sunway
• Origin：Shanghai, China
• Production Capacity：120-150PCS,Min

Basic Info.

Condition New Dimension:4180X850X1700 Weight:2500kg Transport Package Wooden Cases Specification GMP Trademark sunway Origin Shanghai, China Production Capacity 120-150PCS/Min

Product Description

B.GLS-III Automatic Aluminum -Plastic Laminated Tube Making Machine

(Suitable for both ABL and PBL)

Mould Size Diameter (mm): 12.7, 16, 19, 22, 25, 28, 30, 32, 35, 38, 50, 60

Introduction:

BGLS-III Tube Machine is successfully researched, designed and manufactured by our company with the advanced technologies home and abroad on our tube machine of the second generation. Together with mechanical, electronic and pneumatic technologies, the BGLS-III is high automatic. Compared with the machines of the same kind home and abroad, it boasts of lower investment, higher productivity, lower consumption, easier operation, automatic warning on failures, non-stopping roll re-feeding, accurate position of rotary cutting, easier maintenance and more stable performance. With the high frequency welding and the aluminium-plastic laminated material, it can produce laminated tubes of all specifications with smooth and firm welded seam. Its accurate cutting makes the tubes the same length.

This machine is mainly composed of automatic roll-releasing device, connecting platform, storing case, automatic margin-cutting mechanism, automatic tube-forming device, high frequency welding mechanism, vertical and level traction devices, automatic tube-feeding mechanism, automatic synchronous revelling cutting mechanism and computer control system. It has awarded the national patent, and the patent number is 02219950.0. And the patent number of its high frequency welding device is 002119963.7.

Main Parameters:



Power of The Main Machine	2 .2KW
Power of The Cutting Device	1.0KW
Power of High Frequency Welding	15.0KW
Power of Other Welding	0.50KW
Power Supply	380V/50HZ
Most Productivity	150pcs/min
Dimension	4810×850×1700mm
Weight	3000kg

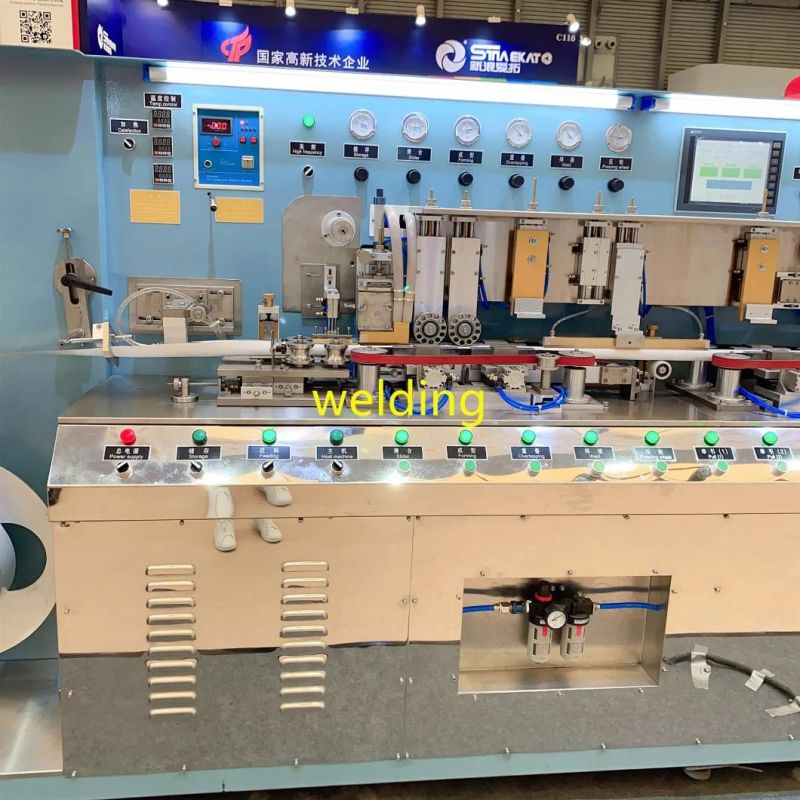

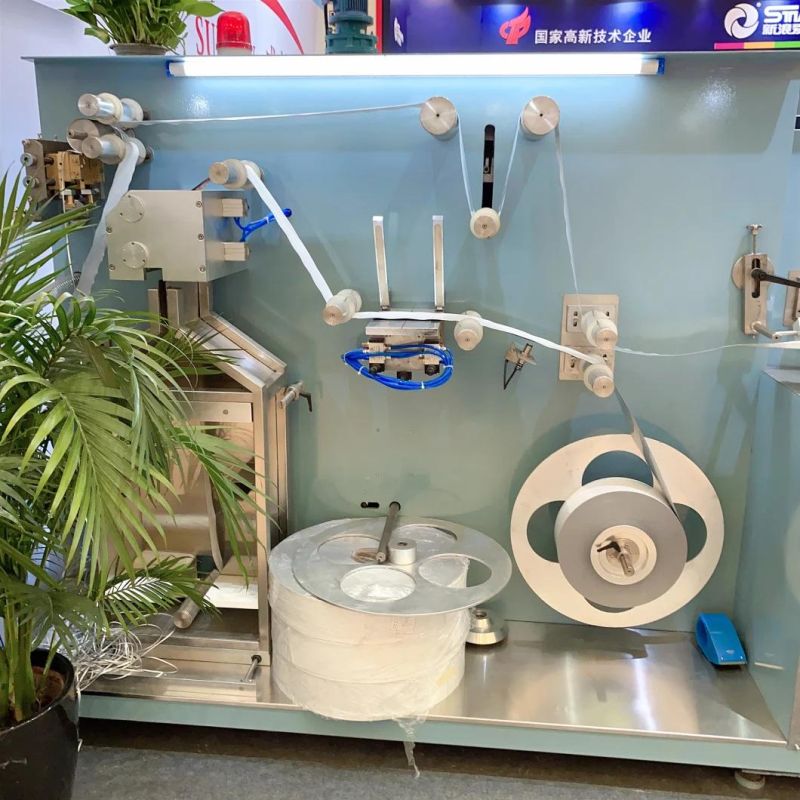

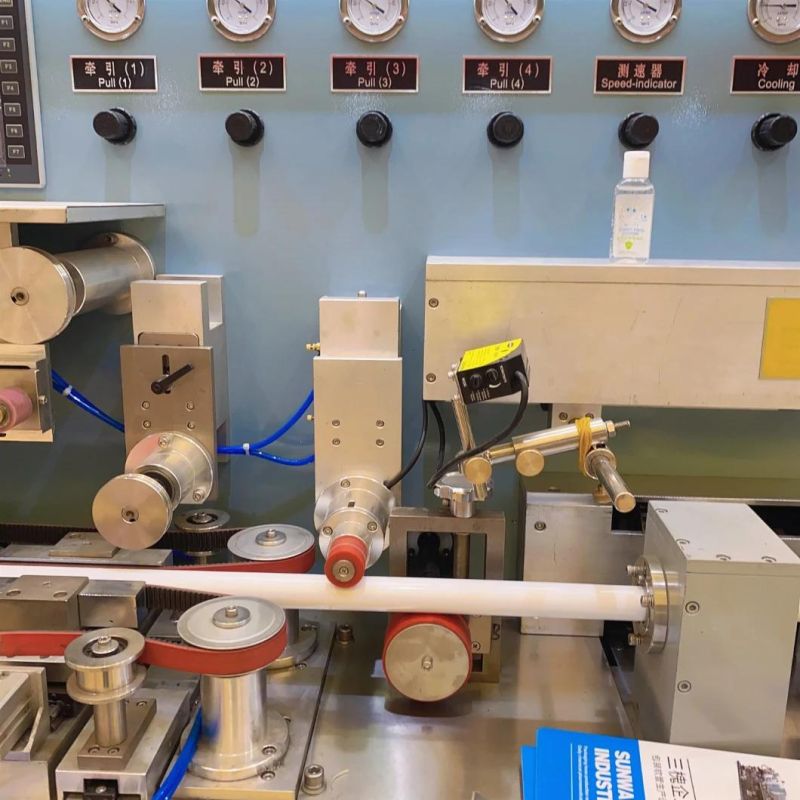

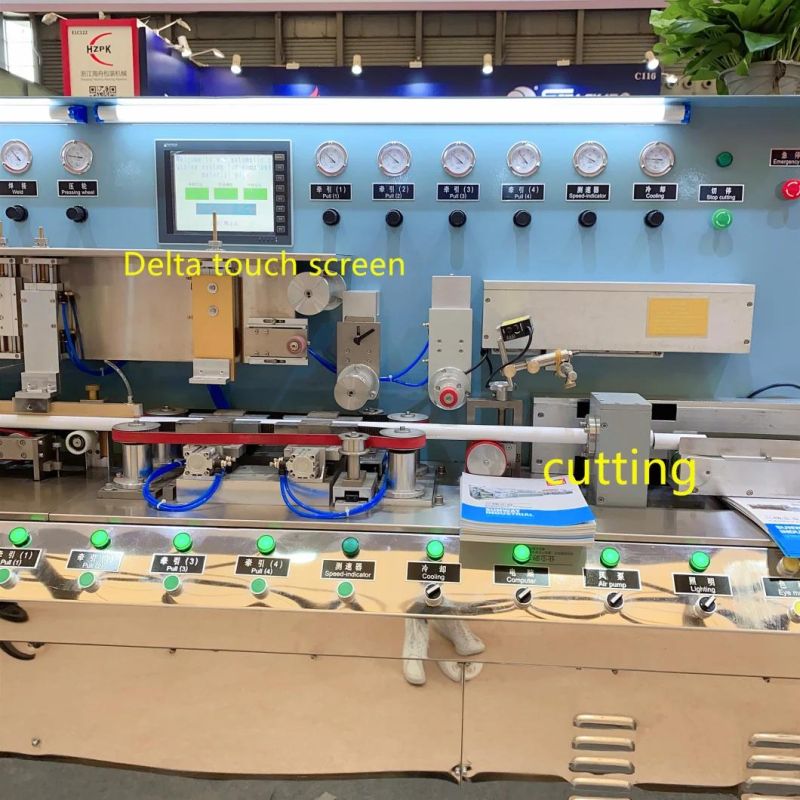

Machine Main parts showing:

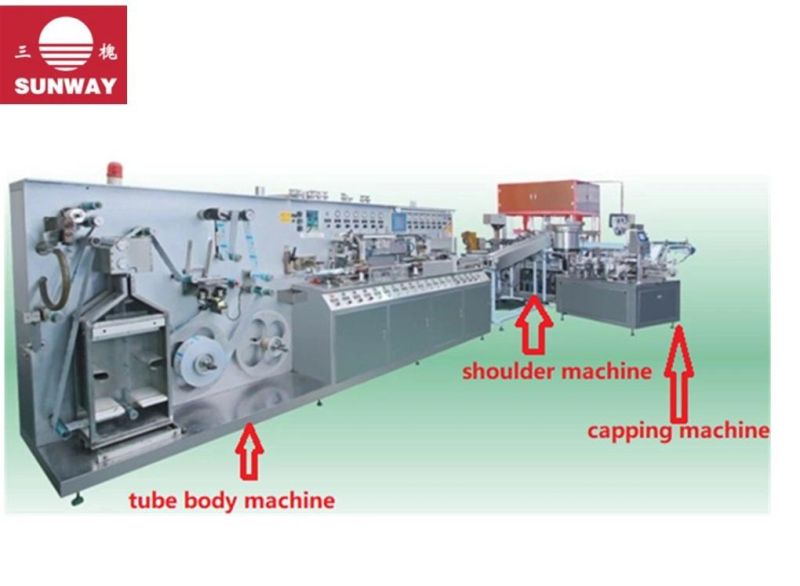

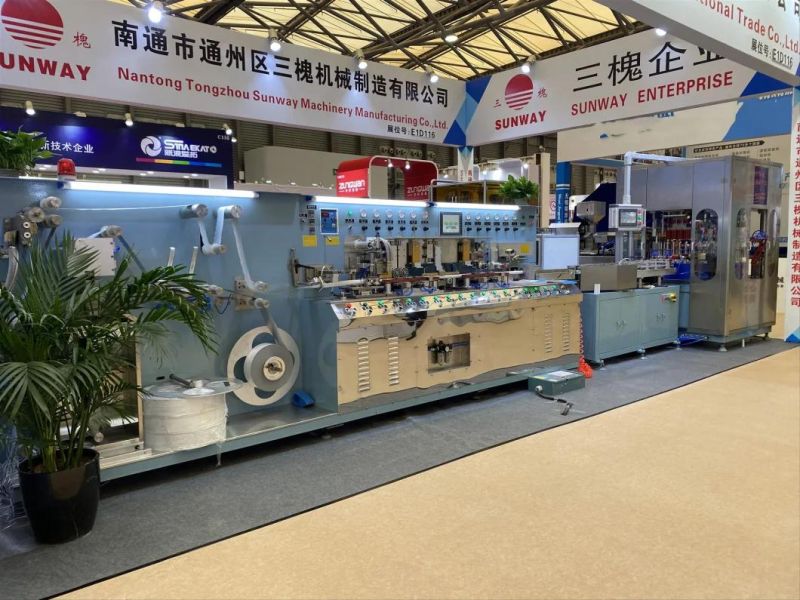

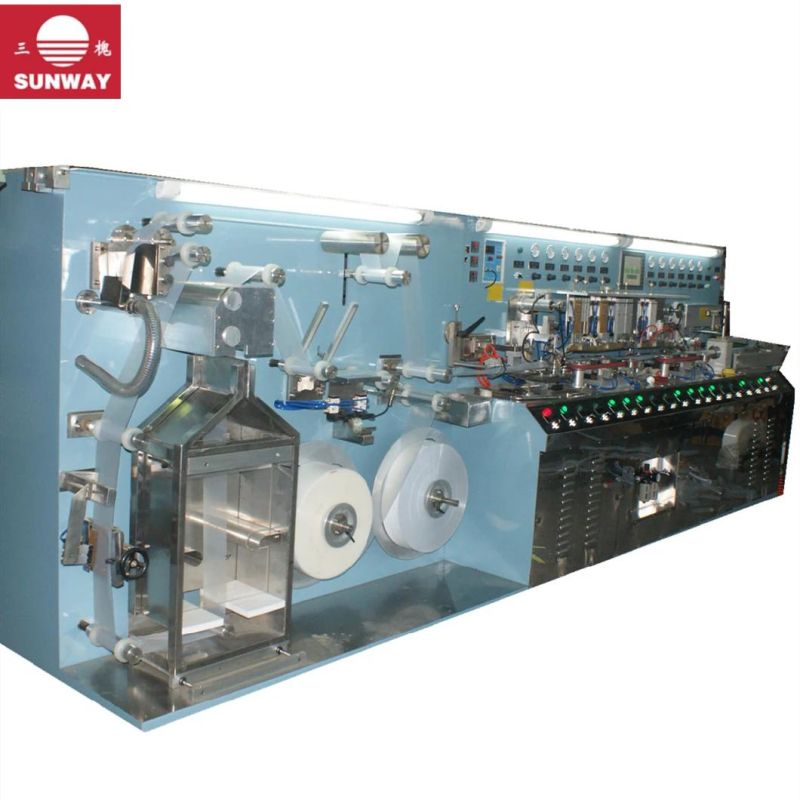

Automatic tube making machine showing:
