• Model NO.：SRQJ-450
• Condition：New
• Dimension：43.0*3.02*3.0
• Weight：27.5 Tons
• Extrusion Capacity：600kg,H
• Pipe Range：160-450mm
• Transport Package：Wooden Cases and Pallets
• Specification：ISO9001: 2008, CE
• Trademark：Huashida
• Origin：Qingdao, China
• HS Code：8477209000
• Production Capacity：50 Sets,Year

Basic Info.

Model NO. SRQJ-450 Condition New Dimension 43.0*3.02*3.0 Weight 27.5 Tons Extrusion Capacity 600kg/H Pipe Range 160-450mm Transport Package Wooden Cases and Pallets Specification ISO9001: 2008, CE Trademark Huashida Origin Qingdao, China HS Code 8477209000 Production Capacity 50 Sets/Year

Product Description

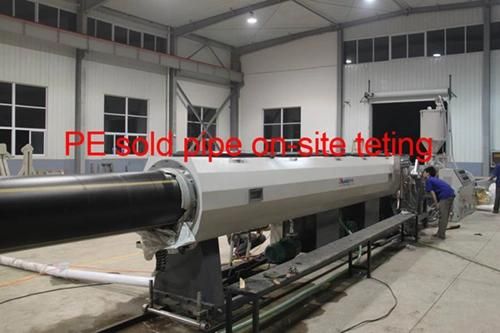

HDPE Solid Pipe for Agriculture Irrigation Extrusion Line (160-450mm)
HDPE pressure Pipe/ HDPE solid pipe  Extrusion Line is a pipe extrusion line developed by HSD company through assimilate and master technology introduced from abroad. It is applicable for extrusion of PE, PP, PB, PERT, ABS etc. This PE pipe production line can instead extrusion line imported from abroad.
This pipe extrusion line mainly includes single screw extruder, molds, vacuum calibrating water tank, spray water cooling tank, haul-off machine, cutting machine and bracket.
Plastic Pipes produced by this line have excellent stiffness, flexibility, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage and so on. It has become the first choice for the city gas pipe, water supply pipe, foundation pipe, landfill collection pipe, watermain, geothermal heating etc.


1	Automatic Vacuum Feeder and dryer	1 set
2	SJ-90/33 high efficiency Single Screw  extruder	1 set

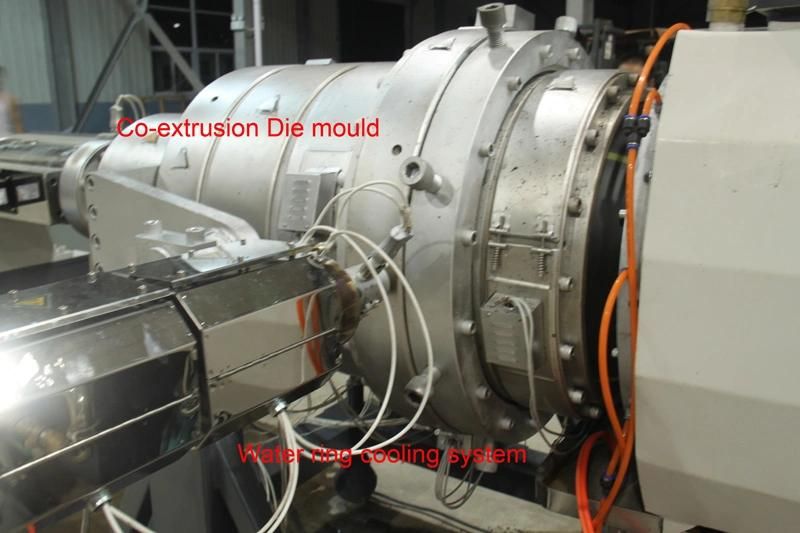

3.	Co-extrusion die mould(160,200,250,315,400,450 mm)	6 sets
4	SJ-25/25 marking line extruder	1 set
5	SRQJ-450 6m vacuum calibrating stand	1 set
6	SRQJ-450 6m spray cooling flume	2 sets
7	SRQJ-450 6 caterpillar pulling machine	1 set

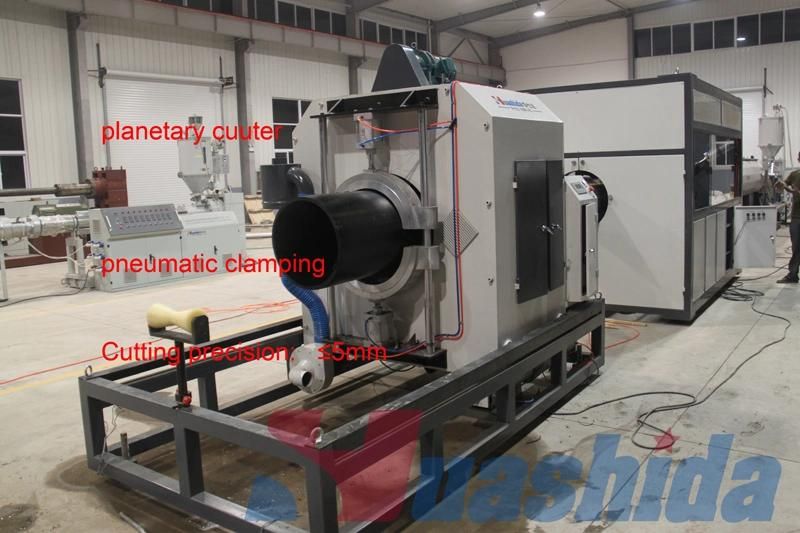

8	SRQJ-450 planetary cutting machine	1 set
9	SRQJ-450 stacker	1 set
10	PLC (Siemens ) central control system	1 set
