• Model NO.：GM-2C
• Bottle Size：100ml-2000ml
• PLC：Mitsubishi
• Raw Material：Pet
• Making Method of Parison：Stretch Blow
• Automation：Automatic
• Computerized：Computerized
• Transport Package：Wooden Case
• Specification：2000bph
• Trademark：GM
• Origin：China
• HS Code：8477301000
• Production Capacity：100sets,Year

Basic Info.

Model NO. GM-2C Bottle Size 100ml-2000ml PLC Mitsubishi Raw Material Pet Making Method of Parison Stretch Blow Automation Automatic Computerized Computerized Transport Package Wooden Case Specification 2000bph Trademark GM Origin China HS Code 8477301000 Production Capacity 100sets/Year

Product Description

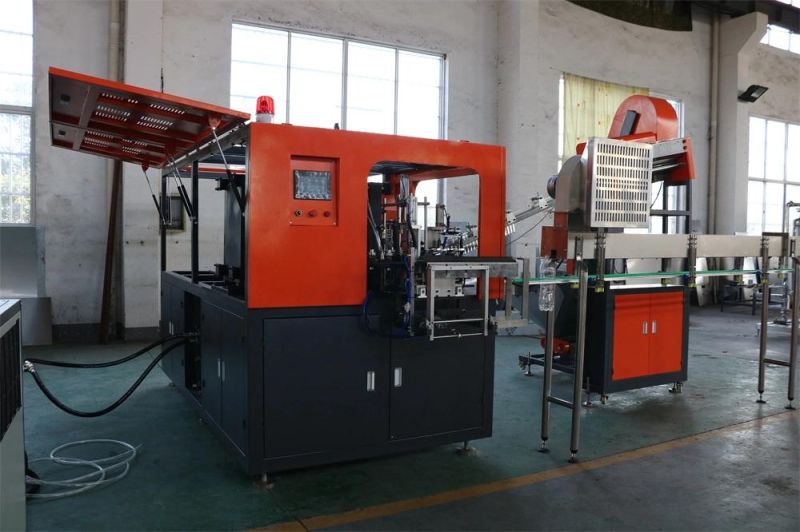

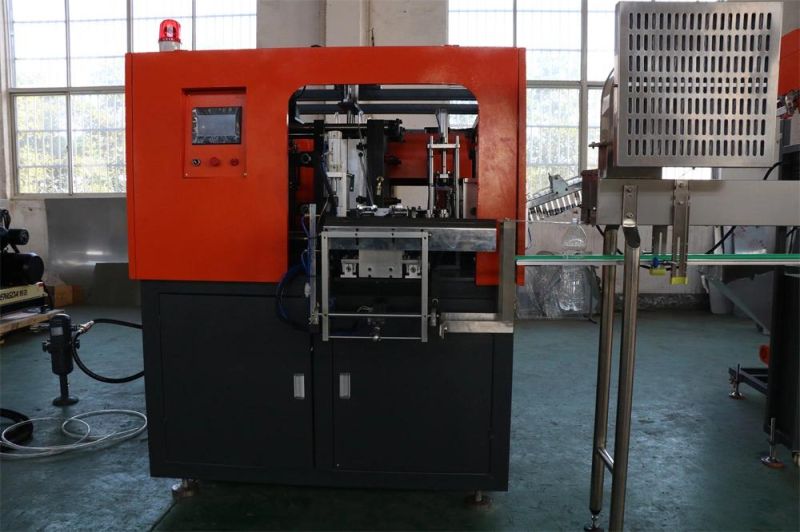

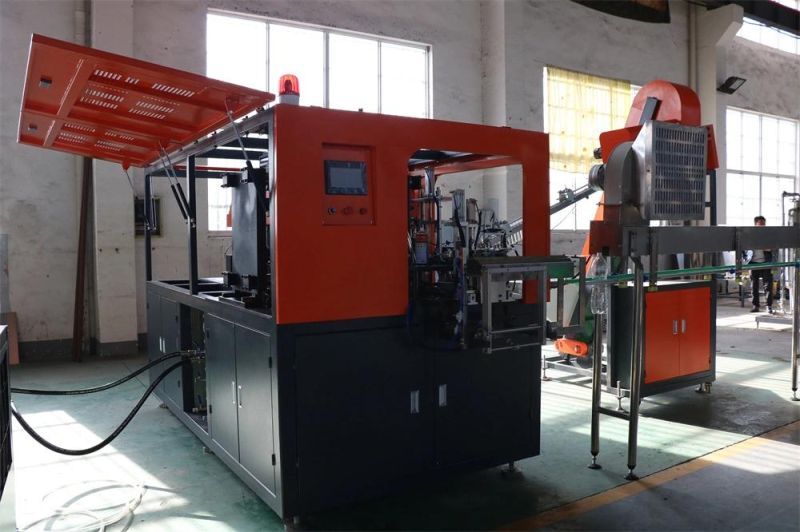

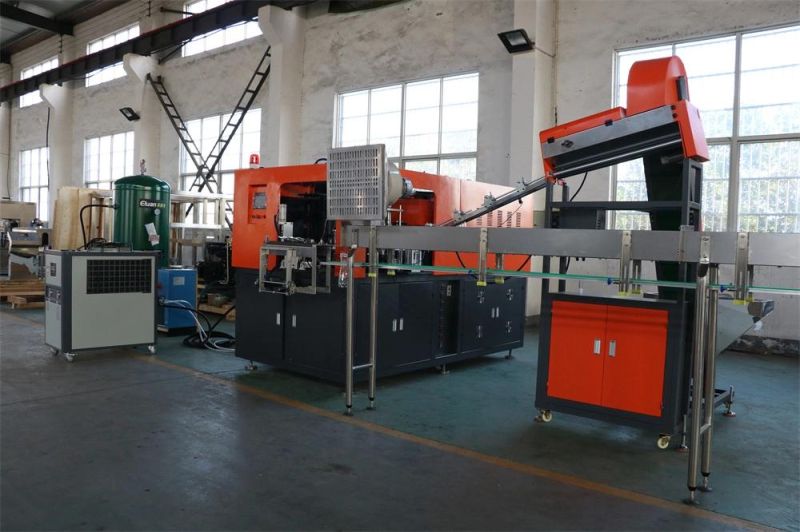

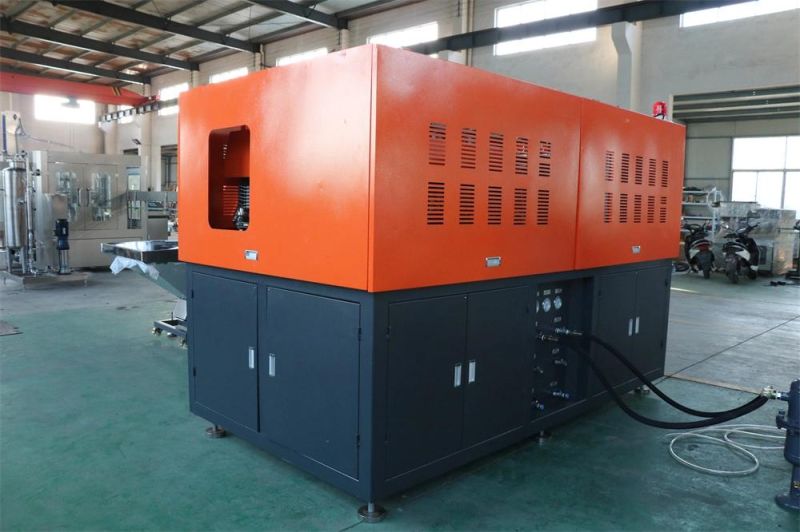

bottle blowing machine  for  water bottles .

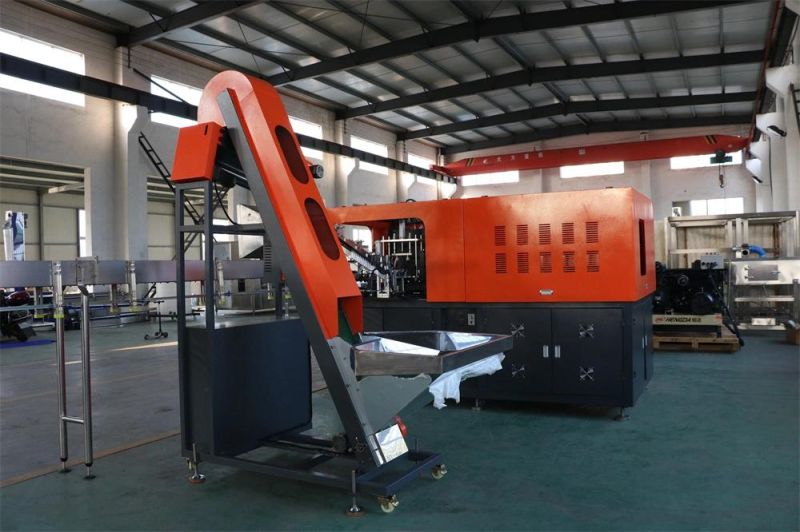

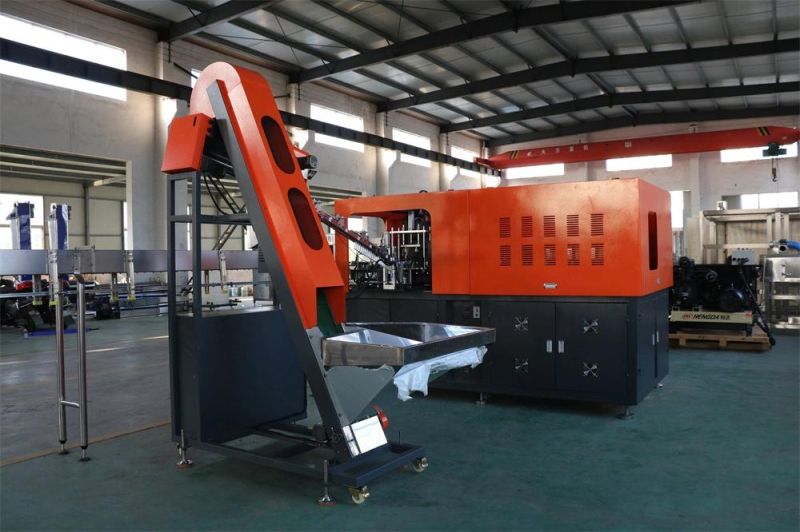

Computer control system ,stable performance; Preform feeding system; Infrared heating uniform and quick; Each movement has self-locking system ,if one of the processes has problem, the procedure will success safe mode; All of the movements are driven by cylinders, clean and no noise; High pressure clamping;  Easy to set up, operate and repair, safe, health high efficiency and yield. PREFORM LOADING
Performs put into loading hopper, then the conveyor raise the performs to perform unsbreller, hence the performs will be arranged well on the guider. The performs will go into equipment automatically. This type of loading complete automatic control, high efficiency without damage to performs.

HEATING ADJUST

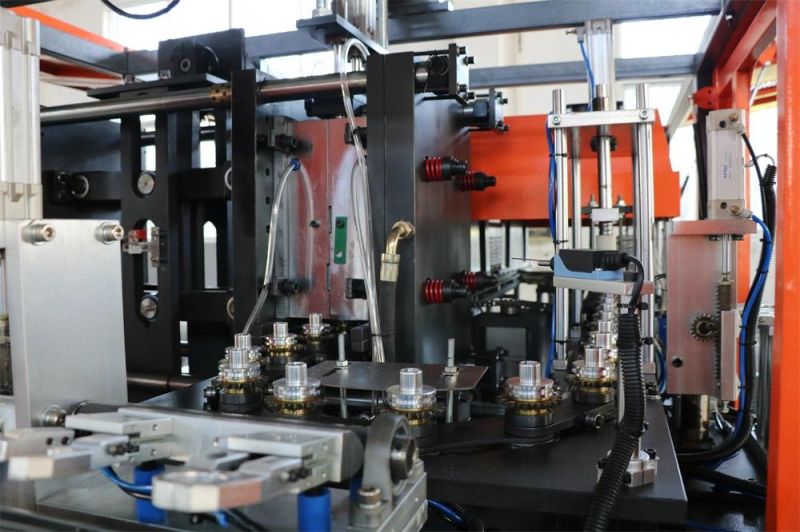

The heating head will receive performs automaticly and continuously, and performs average round self running, can get suitable reasonable heating when moving through heating area. Blowing machine adopts to far infrared heating controlled by silicon, every line of the lamps can control temperature independently. If lamp no electric, machine will alarm test automaticly. The air flow in heating area, and the perform neck protection device both designed precisely, in this case, perform can get ideal temperature heating, also bottle neck no influence. If necessary, temperature testing device can help adjust temperature automaticly. Each class of the heating temperature showed on the meter, easy look, easy operate.

 STRECH BLOWING

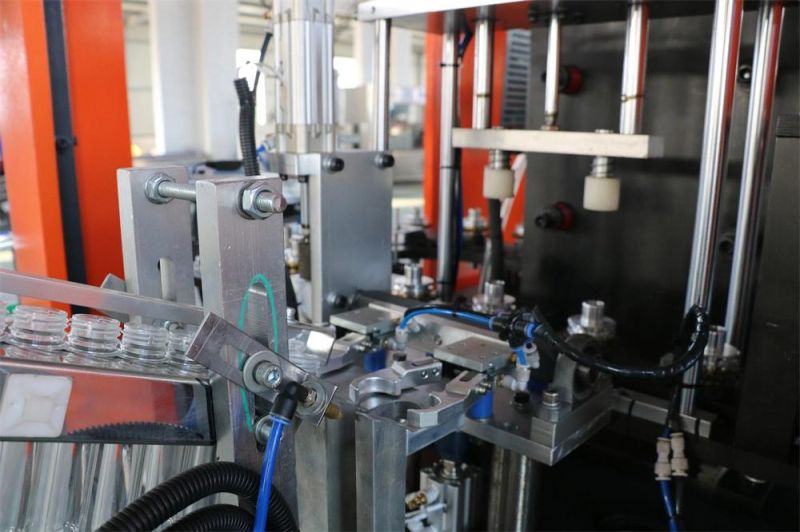

PLC can control the mould frame open and close precisely. Easy and stable mould frame structure, lead to easier mould changing. Mould locking and pressure enlarging system is special. Blowing data of each cavity is controlled by touch screen very easier, it has good testing function. The special structure of the blow mouth ensures stable sealing no matter different blowing pressure, and also ensures finished bottle rate.

 BOTTLES EJECTING
After blowing, robot hand will take finished bottles automatically and test bottles, if bottles not well automatically knick out.
This ensures the continuously production. The bottles convey to filling machine by air conveyor.

Cavity :	2
Capacity :	1800BPH
Volume	0.1-2L
Neck size :	20-45mm
Power:	30kw
Mould thickness:	200-250mm
Movement pressure:	0.75Mpa
Blowing pressure:	3.0Mpa
