Plastic Machinery

880mm PVC Plastic Glazed Roof Tiles Making Machine

Qingdao Weier Plastic Machinery Co., Ltd.
  • Board Layers:Multilayer
  • Product Type:PVC Board
  • Automation:Automatic
  • Computerized:Computerized
  • Certification:CE, ISO9001:2008
  • Usage:Bamboo Type (UPVC and Asa or PMMA Composite Roof )

Base Info

  • Model NO.:SJSZ-80,156
  • Roof Tile Width:880mm
  • Roof Tile Thickness:3-4mm
  • Capacity:250-400kg,Hr
  • Center Height:1000mm
  • Line Speed:0.3-2m,Min
  • Daily Output:1000m2,24hrs
  • 0.3m3/Min,>0.5mpa:~3t,H
  • Compressed Air:0.3m3,Min, >0.5mpa
  • Total Power:157kw
  • Transport Package:Machine Covered by PE Film; Mould in Wooden Case
  • Specification:As per customer′s request
  • Trademark:Weier
  • Origin:Qingdao City, Shandong Province, China
  • HS Code:84772090
  • Production Capacity:100sets,Year

Description

Basic Info.

Model NO. SJSZ-80/156 Roof Tile Width 880mm Roof Tile Thickness 3-4mm Capacity 250-400kg/Hr Center Height 1000mm Line Speed 0.3-2m/Min Daily Output 1000m2/24hrs 0.3m3/Min,>0.5mpa ~3t/H Compressed Air 0.3m3/Min, >0.5mpa Total Power 157kw Transport Package Machine Covered by PE Film; Mould in Wooden Case Specification As per customer′s request Trademark Weier Origin Qingdao City, Shandong Province, China HS Code 84772090 Production Capacity 100sets/Year

Product Description

PVC glazed roof tile extrusion line

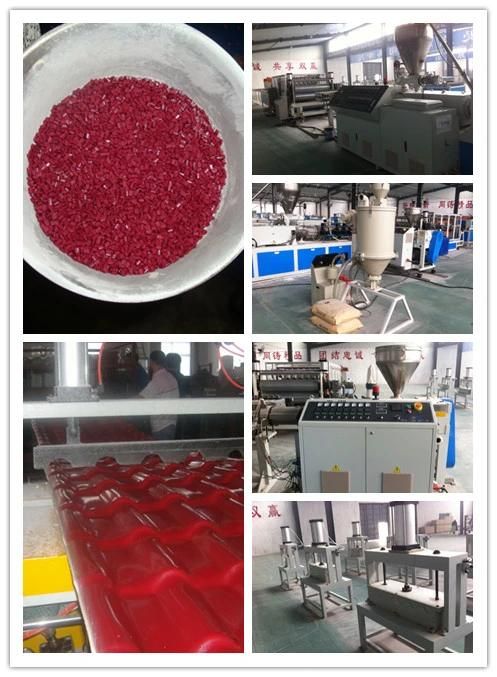

Photos of  PVC glazed roof tile production line
880mm PVC Plastic Glazed Roof Tiles Making Machine

Discreption of  PVC glazed roof tile production line

  • PVC single layer roof tile production line
  • PVC and ASA or PMMA compound roof tile production line
  • Technology for single layer or multi- layers available

Raw material & formulation

PVC resin, Caco3, lubricant, stabilizing agent, pigment, anti-ultraviolet agent, Pigment etc

Central height:

1000mm

Max. Haul-off speed:

0.3-4m /min

Operation direction

From right to left (face to the operation panel)

Machine color

Blue or as per your request

Description final product & Output capacity

Single layers UPVC Roofing tile;

Width:880 or 1050mm,Thickness: 2 ~4.0mm;

Wave distance:180mm; Wave height:30mm;

Output:200-350kg/h(Depending on CaCO3 proportion)
