• Model NO.：OD: 35--150mm
• The Strip Width：B=36mm
• The Thickness of The Steel Strip：0.25-0.3m
• Transport Package：Wooden Packing
• Specification：OD: 35--150mm
• Trademark：MH
• Origin：China
• Production Capacity：100

Basic Info.

Model NO. OD: 35--150mm The Strip Width B=36mm The Thickness of The Steel Strip 0.25-0.3m Transport Package Wooden Packing Specification OD: 35--150mm Trademark MH Origin China Production Capacity 100

Product Description

Technical annex

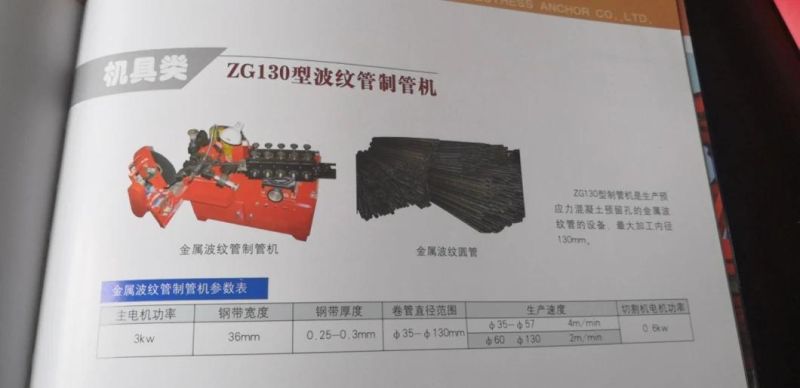

A .Machine Picture




B .Technical Parameters
strip width: 36mm (±1mm)
motor power(constant speed motor): 4kw for roll forming
material: galvanized steel, Q195
producing speed: Φ35-Φ65: 4m/min,   Φ70-Φ150: 2m/min
thickness: 0.25--0.40mm,    spiral duct OD: 35--150mm
cutting motor: 0.75kw             cooling pump motor: 90W
powerless uncoiler: as above photo
electric: 380v,50hz,3ph
machine dimension: approximate 1350mm x 1450mm x 1550mm
Machine weight:  approximate 650kg(not include molds)
machine includes electrical parts:
buttons, power light, AC contactor, transformer, air switch and travel switch
electrical parts brand: DELIXI or CHINT
machine color: based on buyer requirement
 Scope of supplying: QTY: 1
Powerless uncoiler x 1, forming machine x 1, cutter x 1, spare saw blade x 1, spare electrical parts: 1set(brand: DELIXI or CHINT)
