• Model NO.：SJSZ-65,132
• Motor Brand：Siemens
• Output Capacity：150-180kg,H
• Line Speed：0.5-5m,Min
• Suitable Material：PVC,UPVC,WPC
• Electric Components：ABB,Omron,Siemens etc
• Transport Package：as Exported Standard
• Specification：15T
• Trademark：QINGDAO TONGSAN
• Origin：Qingdao, China
• HS Code：84772090
• Production Capacity：50 Sets One Year

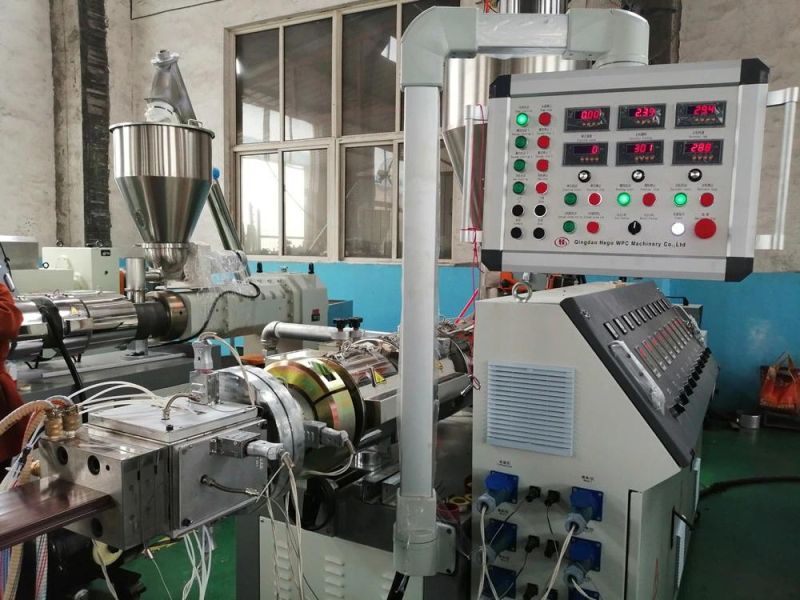

ItemEquipment Notesmain machineScrew feederAutomatic feedingExtruderConical double screw extruderDie head and moldCustomizedCalibrating machine6m/8m/10m/12mHaul off machinedouble caterpillarCutting machineAuto fixed length cuttingProduct stackerAuto stackerauxilary machinemixer mix all material crusherfor recycle wastagemiller air compressorprovide compressed airlaminating/hot stamping machinesurface treatmentwater chillerprovide chilling water(1)SJSZ-65/132 Twin conical screw extruder and electric cabinet
According to different size of product, equipped with differnt model extruder. SJSZ-51/105, SJSZ-55/110,SJSZ-65/132,SJSZ-80/156
Motor brand:Siemens
Electric component:ABB,Omorn,Siemens
Heating circle:ceramics heating circle.

(2)PVC/UPVC mould
material: 3Cr17, tempering HRC28-32, ensure anti-rust, hardness and service life
Calibrator size: 240mm or 320mm
Quantity of calibrator section:1 or 2 or 3 or 4 sets according to product size shape
Water tank length: 2000mm or 4000mm, fiber glass board, accessories are made of stainless steel

(3)Calibrating table
According to the product size, the calibrating table can be designed in differnet length, 4m/6m/8m etc. The part which connect with water is made of 304 stainless steel.

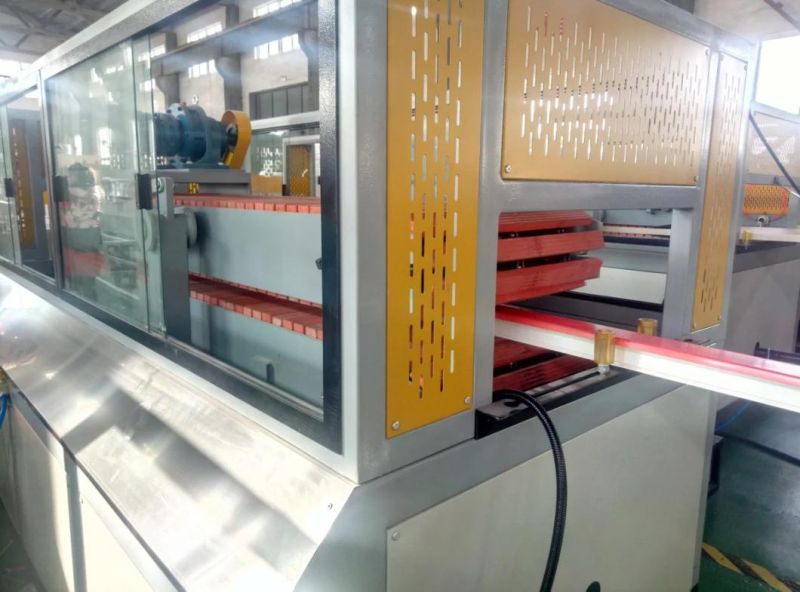

(4)Haul off and cutting machine.
Equipped with dust collection device
