170ton Medical/Syringe/Infusion Set Injection Molding Machine (stable performance, ...

Ningbo Zhen Yue Machinery Co.,Ltd.
  • Type：Preform Injection
  • Structure：Horizontal
  • Plastic Type：Thermoplastic
  • Plasticizing Way：Screw Type
  • Clamping Way：Hydraulic
  • Automation：Automatic

Base Info

  • Model NO.：ZX-170M Injection Molding Machine
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008
  • Motor Type：Servo Motor
  • Space Between Tie Bars：475mm*475mm
  • Products：Medical, Healthcare, Infusion Set, Syringe, Vagina
  • Transport Package：Plastic Film Cover, Wood Pad, Wrapped Film
  • Specification：7.2m*1.7m*2.6m
  • Trademark：Customized
  • Origin：China
  • HS Code：8477101090
  • Production Capacity：100 PCS,Month

Description

    4.7

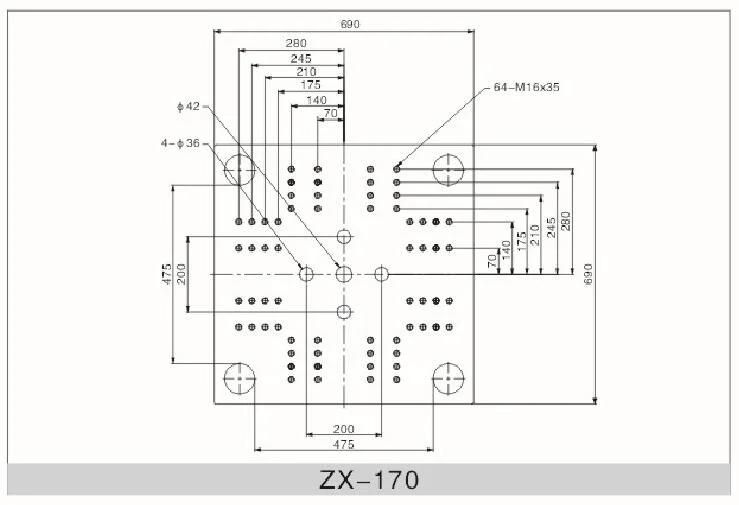

                                  3, Platen Dimension
170ton Medical/Syringe/Infusion Set Injection Molding Machine (stable performance, competitive cost, save energy, high quality)

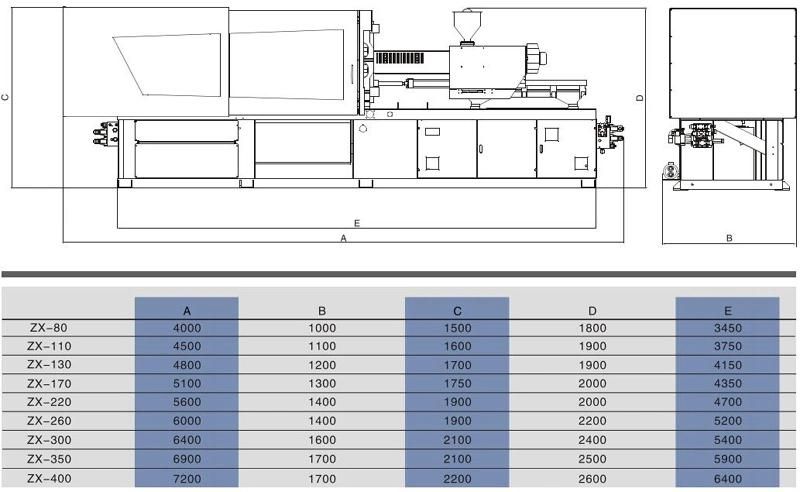

                        4, Machine Dimension (ZX-170)



170ton Medical/Syringe/Infusion Set Injection Molding Machine (stable performance, competitive cost, save energy, high quality)

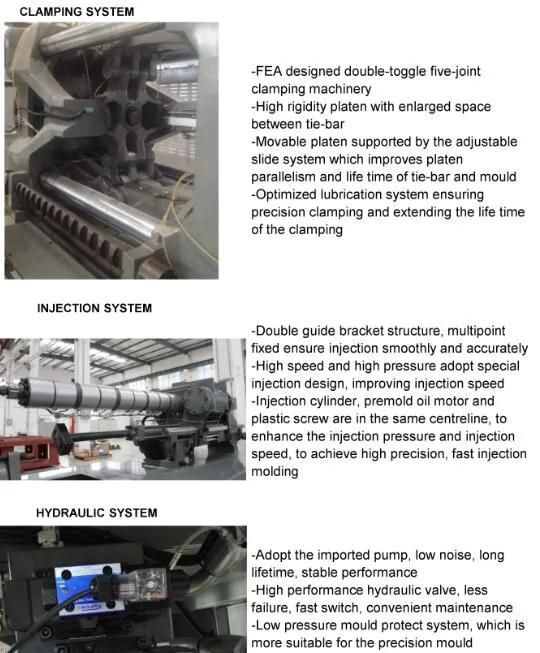

                               5, Technical Characteristics
170ton Medical/Syringe/Infusion Set Injection Molding Machine (stable performance, competitive cost, save energy, high quality)

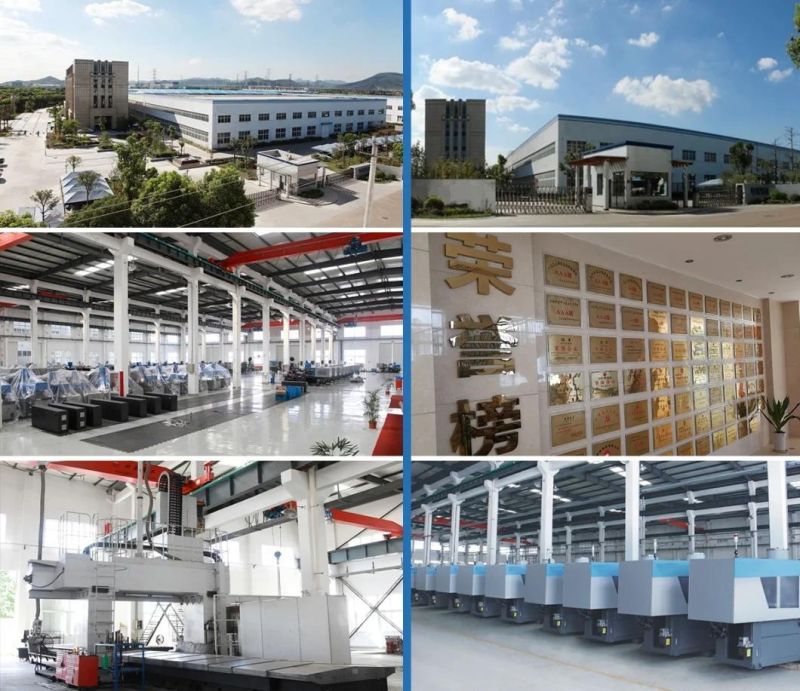

                                     6, Machine Factory
170ton Medical/Syringe/Infusion Set Injection Molding Machine (stable performance, competitive cost, save energy, high quality)



                                   7, Contact Information
Contact Person: Mr. Tony
Comapny: Ningbo Zhen Yue Machinery Co., Ltd.
Address: No. 39, Lane 158, Huangcheng West Road, Ningbo, China.
Zip Code: 315012
Website: Www. Zhenyue-machinery. COM

Remark:
1, the company reserves the right to revise all information (including word, photo) above.
2, due to technology development, the machine design or specification would be changed without any prior notice.
3, if you need CE machine, please tell us in advance of order. Otherwise, we provide normal machine (not CE machine). CE machine is special and expensive.
