400ton Crate/Basket/Barrel Injection Molding Machine (stable performance, competitive ...

Ningbo Zhen Yue Machinery Co.,Ltd.
  • Motor Type：Servo Motor
  • Space Between Tie Bars：735 X 735mm
  • Product：Crate, Basket, Barrel
  • Transport Package：Plastic Film Cover, Wood Pad, Wrapped Film
  • Specification：7.2 x 1.7 x 2.6 M
  • Trademark：Customized

Base Info

  • Model NO.：ZX-400 Crate,Basket,Barrel Injection Machine
  • Origin：China
  • HS Code：8477101090
  • Production Capacity：50PCS,Month

Description

    13.6

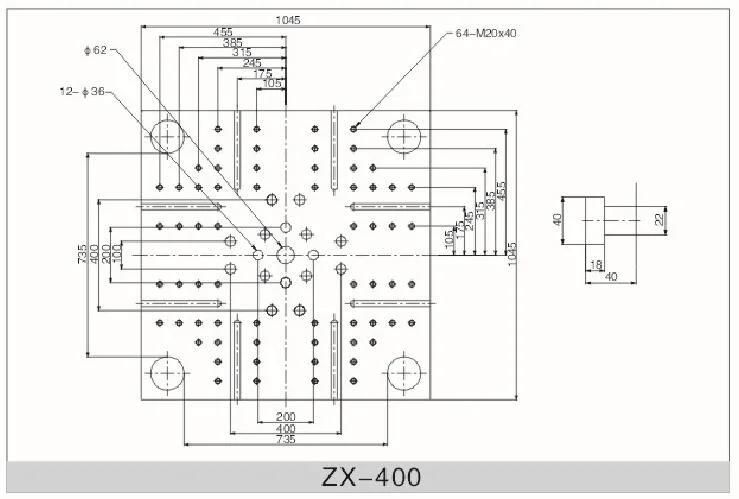

                                   3, Platen Dimension
400ton Crate/Basket/Barrel Injection Molding Machine (stable performance, competitive cost, save energy, high quality)

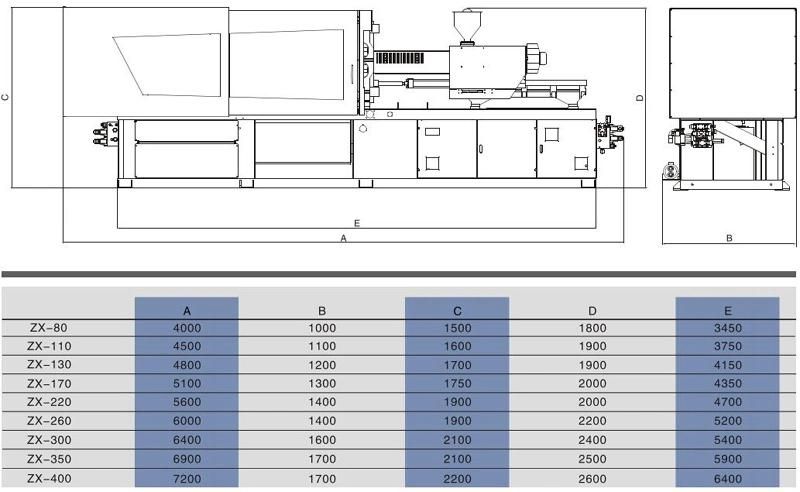

               4, Machine Dimension (ZX-400)

400ton Crate/Basket/Barrel Injection Molding Machine (stable performance, competitive cost, save energy, high quality)


                      5, Technical Characteristics

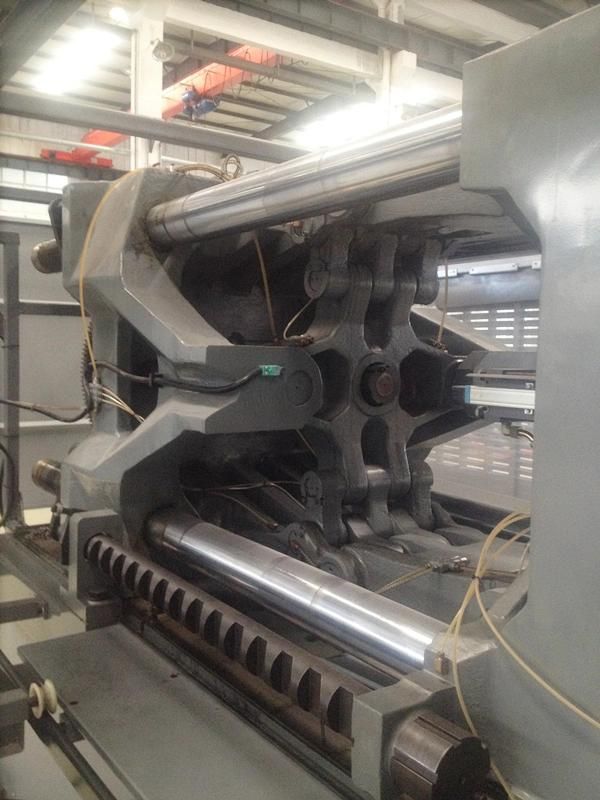

              CLAMPING SYSTEM

400ton Crate/Basket/Barrel Injection Molding Machine (stable performance, competitive cost, save energy, high quality)
                		-FEA designed double-toggle five-joint clamping machinery
-High rigidity platen with enlarged space between tie-bar
-Movable platen supported by the adjustable slide system which improves platen parallelism and life time of tie-bar and mould
-Optimized lubrication system ensuring precision clamping and extending the life time of the clamping

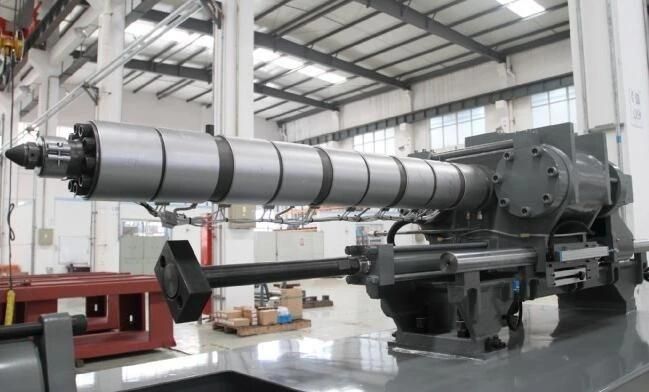

                   INJECTION SYSTEM

400ton Crate/Basket/Barrel Injection Molding Machine (stable performance, competitive cost, save energy, high quality)
      		-Double guide bracket structure, multipoint fixed ensure injection smoothly and accurately
-High speed and high pressure adopt special injection design, improving injection speed
-Injection cylinder, premold oil motor and plastic screw are in the same centreline, to enhance the injection pressure and injection speed, to achieve high precision, fast injection molding

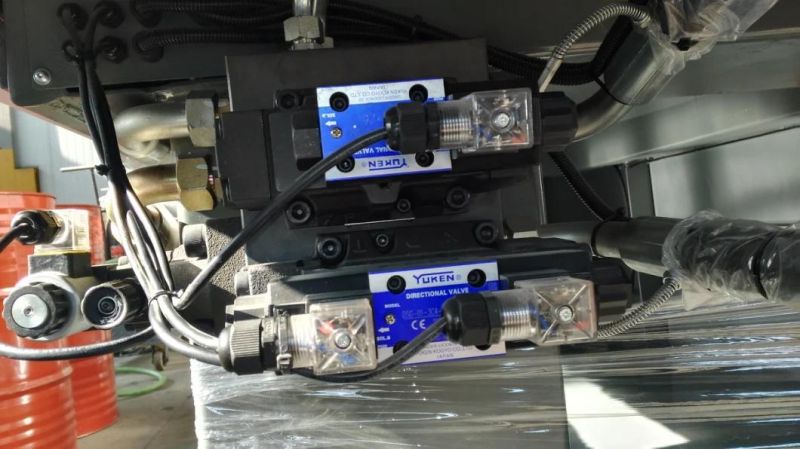

                   HYDRAULIC SYSTEM

400ton Crate/Basket/Barrel Injection Molding Machine (stable performance, competitive cost, save energy, high quality)
    		-Adopt the imported pump, low noise, long lifetime, stable performance
-High performance hydraulic valve, less failure, fast switch, convenient maintenance
-Low pressure mould protect system, which is more suitable for the precision mould
-Lubrication oil in dependent lubrication system can lubricate everywhere in the best situation

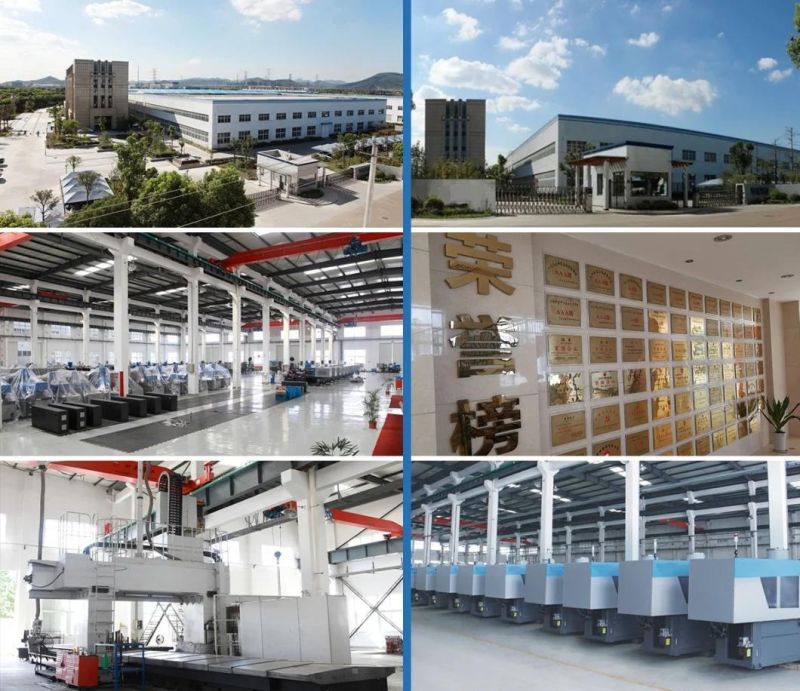

                             6, Machine Factory
400ton Crate/Basket/Barrel Injection Molding Machine (stable performance, competitive cost, save energy, high quality)



                       7, Contact Information
Contact Person: Mr. Tony
Comapny: Ningbo Zhen Yue Machinery Co.,Ltd.
Address: No.39, Lane 158, Huangcheng West Road, Ningbo, China.
Zip Code: 315012
Website: zhenyuemachinery.en.made-in-china.com

Remark:
1, the company reserves the right to revise all information (including word, photo) above.
2, due to technology development, the machine design or specification would be changed without any prior notice.
3, if you need CE machine, please tell us in advance of order. Otherwise, we provide normal machine (not CE machine). CE machine is special and expensive.
4, all photos are only for visual reference.
