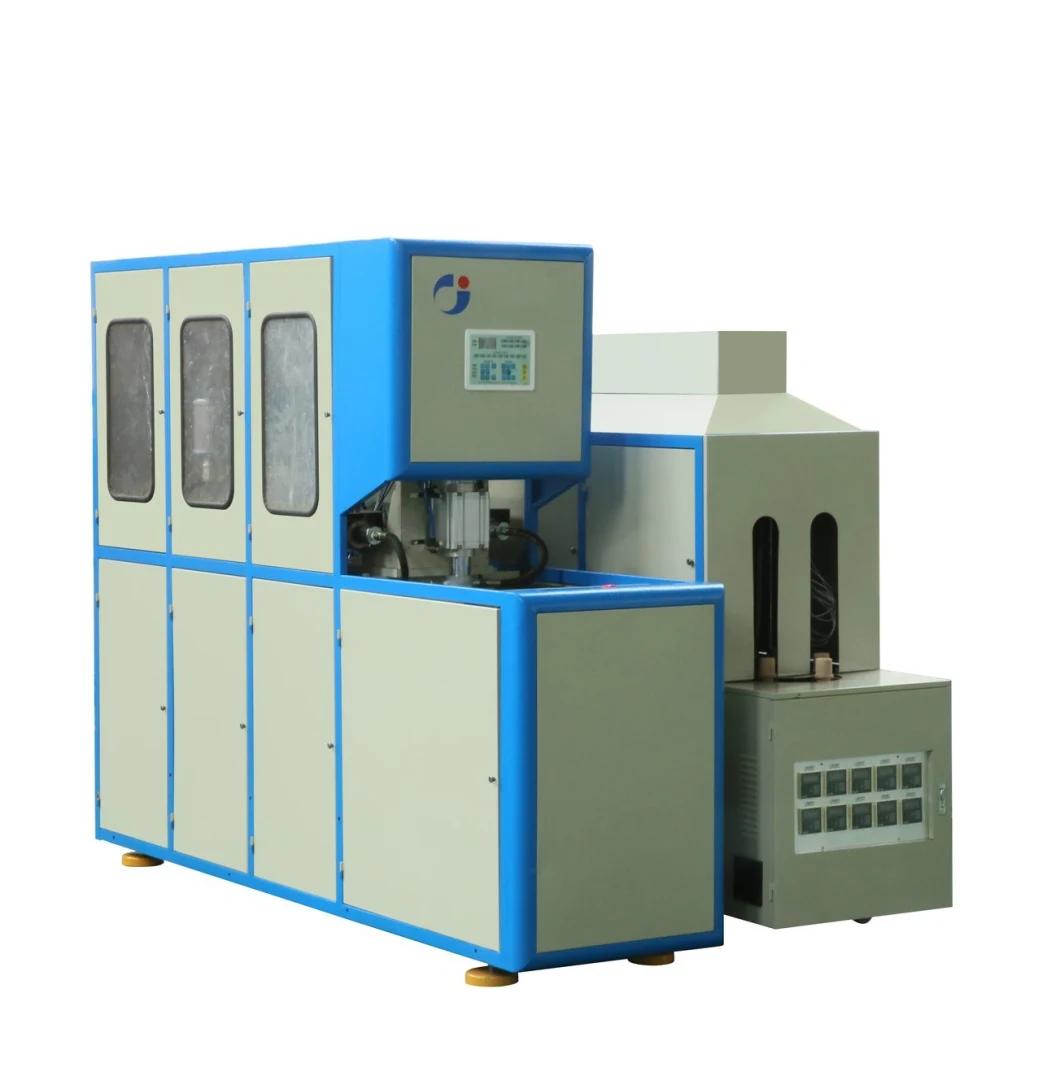

Semi Automatic Blow Molding Machine (JS-2II) with CE Approved
Taizhou Jiansheng Machine Co., Ltd.- Making Method of Parison:Stretch Blow
- Raw Material:PET
- Automation:Automatic
- Computerized:Computerized
- Certification:CE, ISO9001:2008
- Semi Automatic Blow Molding Machine:2cavity for 1 Blower 4cavities for 2 Blowers
Base Info
- Model NO.:JS-2A,JS-2
- Transport Package:Wooden Case
- Specification:Semi Automatic blow molding machine
- Trademark:JS-2II
- Origin:Huangyan, Taizhou, Zhejiang, Pr. China
- HS Code:84773090
- Production Capacity:1700bph for 2 Blower and 850bph for 1 Blower
Description
Semi-Automatic Blow Moulding Machine blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottles, mineral water, pesticide bottles, oil bottles, cosmetic bottles, and wide-mouth bottles.

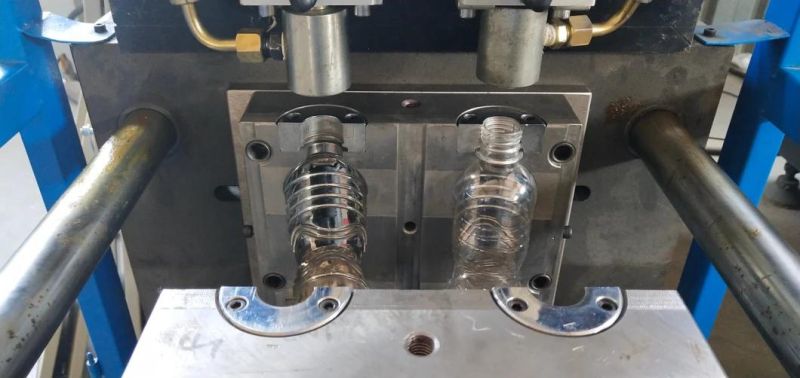

Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt

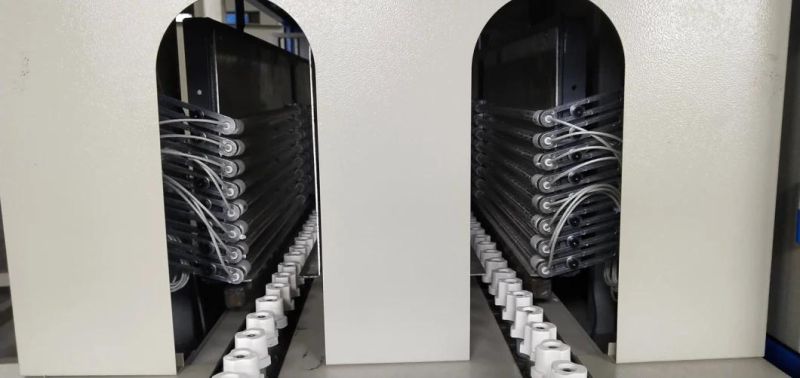

Infrared oven to heat the perform, the perform rotated and heated equally.

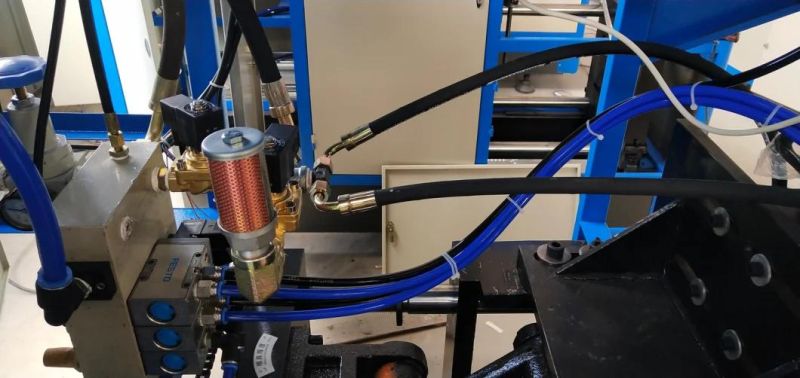

The air system has been divided into two parts: Pneumatic action part and bottle
Blow part to meet the different requirements for the action and blow. It can provide
Sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi- auto mode.
The machine is small with low investment, easy and safe to operate by one person.Mold gathering strength (kN) 60 Mold traveling distance (mm) 135 Pulling rising traveling distance (mm) 360 Bottle spacing 120-150 Mold hole number (cavity) 2 Max. Bottle capacity (L) 2 Max. Tooth part size (mm) 40 Max. Bottle diameter (mm) 95 Max. Bottle body height (mm) 360 Theoretic production capacity (bph) 700-900 Total power consumption (kW) 14 Thermal rating (kW) 12.8 Operating pressure (kg/cm2) 8 Low pressure gas consumption (L/min) 300 Bottle blowing pressure (kg/cm2): 25 High-pressured gas consumption (L/min) 350

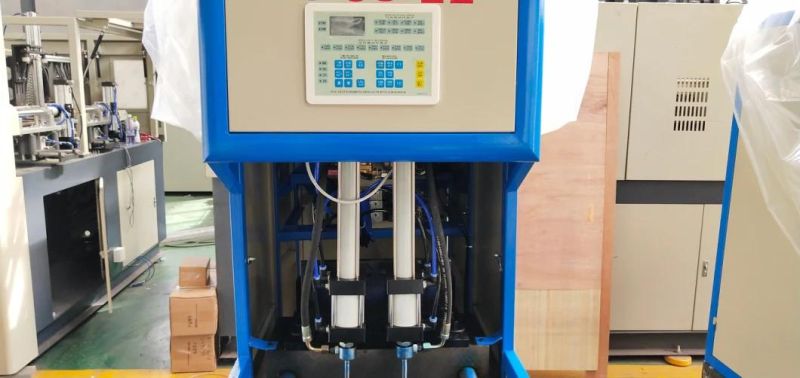

Internal details of the Machine
Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt
Infrared oven to heat the perform, the perform rotated and heated equally.
The air system has been divided into two parts: Pneumatic action part and bottle
Blow part to meet the different requirements for the action and blow. It can provide
Sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi- auto mode.
The machine is small with low investment, easy and safe to operate by one person.
