Small FRP Pipe or Tank Making Machine - Portal Type

Beijing Hong Yun Xi International Trade Company Limited
  • Transport Package：Standard Export Package
  • Specification：DN20-DN600
  • Trademark：HYX
  • Origin：China

Base Info

  • HS Code：847780000
  • Production Capacity：10sets,Year

Description

Portal Type Filament Winding MachineEquipment No
Item NameLMFW600-1LMFW300-3LMFW500-2Product diameter ,( ID )mmDN50-DN600DN20-DN300DN50-DN500Number of winding shaft,(product number manufactured in one time)132Winding angle10 º-90 º10 º-90 º10 º-90 ºProduct length ,mm≤3200 or according to customer's requirements≤3200 or according to customer's requirements≤3200 or according to customer's requirementsRotating speed of main shaft ,r/min≤120≤120≤120Transmission methodPinion, rack + linear guide railPinion, rack + linear guide railPinion, rack + linear guide railControl methodmanual,semi automatic,automaticmanual,semi automatic,automaticmanual,semi automatic,automaticCoordinate speed of vehicle,m/min606060Precision of lining up yarn ,mm±0.2±0.2±0.2Repositioning accuracy ,mm0.020.020.02Max speed of pulling yarn ,m/min757575Max width of yarn tape ,mm505050Winding typeReciprocating cross, hoop directionReciprocating cross, hoop directionReciprocating cross, hoop directionWinding roving capacity,each153630Resin typeUnsaturated polyester, epoxy resinUnsaturated polyester, epoxy resinUnsaturated polyester, epoxy resinYarn frame(choose one from inner pulling or outer taking)Tension adjustable yarn frame of mechanical typeTension adjustable yarn frame of mechanical typeTension adjustable yarn frame of mechanical typeImpregnation groove,(stainless steel)Roller impregnation with heating systemRoller impregnation with heating systemRoller impregnation with heating systemProduction capacity ,kg/h100150200Total installed capacity , kw9.5( not contain the heating cure station )10.5( not contain the heating cure station )11.5( not contain the heating cure station )Areas covered by production line(length × width × height)m7.5×9×2.57.5×9×2.57.5×9×2.5
Small FRP Pipe or Tank Making Machine - Portal Type






















 Performance Characteristics:

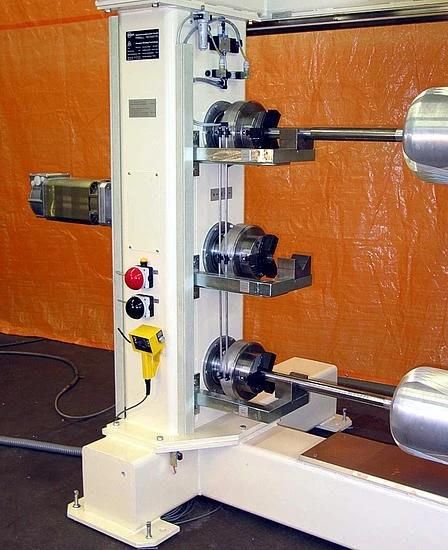

Series portal type filament winding machine of LMFW type is mainly used to produce and manufacture the small pipe of fiber reinforced composite and the tank winding molded products, such as composite insulator, epoxy sleeve, CNG compressed gas cylinder, gas cylinder of respirator, putamina for water treatment, FRP tank for water treatment and etc. This production line is characterized by the high precision of winding line, high productivity, low energy-consuming, easy installation, adjustment and maintenance. It adopts the industrial computer control, so the usage and operation are very convenient.
