1700mm PE Shrinkable Film Blowing Machine with Rotary Die Head and Double Friction Winder
Xiongqiu Plastic Machinery Co., Ltd.- Type：Multi-Layer Co-extrusion Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：1500mm
- Screw Diameter：55mm*3
- Automation：Non-Automatic
- Computerized：Computerized
Base Info
- Model NO.：FM3-1700
- Machine Weight：6t
- Certification：CE, ISO9001:2008
- Model：FM3-1700
- Voltage：380V 50Hz 3phase
- Transport Package：Plastic Warp Film for Container Shipment
- Trademark：Xiongqiu Plastic Machinery Co., Ltd.
- Origin：Foshan, Guangdong Province
- HS Code：8477300000
Description
LDPE / LLDPE / HDPEthickness 0.02---0.20mm film width 750mm 1000mm 1200mm 1500mm 1700mm 2000m max output 65kgs/hr 85kgs/hr 125kgs/hr 150kgs/hr 175kgs/hr 250kgs/hr screw diameter Φ45mm*2 Φ50mm*2 Φ55mm*2 Φ65mm*2 Φ70mm*2 Φ75mm*2 L/D rate 30:1 temp. controller 10 zone 10 zone 10 zone 12 zone 12 zone 13 zone barrel cooling 120w*4 120w*4 120w*4 120w*4 250w*6 250w*6 driving motor 11kw*2 15kw*2 18.5kw*2 22kw*2 30kw*2 30kw*2 die diameter Φ180mm Φ250mm Φ250mm Φ350mm Φ450mm Φ630mm air ring diameter Φ280mm Φ350mm Φ350mm Φ450mm Φ550mm Φ900mm die structrue Spiral mandrel die chrome plated surface 40Cr cooling fan 1.5kw 1.5kw 2.2kw 3kw 4kw 4kw take up width 800mm 1100mm 1300mm 1700mm 1800mm 2200mm effective width 700mm 1000mm 1200mm 1600mm 1700mm 2100mm take up motor 1.5kw 1.5kw 1.5kw 2.2kw 2.2kw 3.7kw winder width 800mm 1100mm 1300mm 1700mm 1800mm 2200mm effective width 700mm 1000mm 1200mm 1600mm 1700mm 2100mm winder motor 30kg 30kg 50kg 50kg 80kg 100kg optional equipment auto-loader, film surface treater, air compressor,fast change net, double-center rewinder/auto rewinder, flat winder with row roller, rotary die head and double-wind air ring.

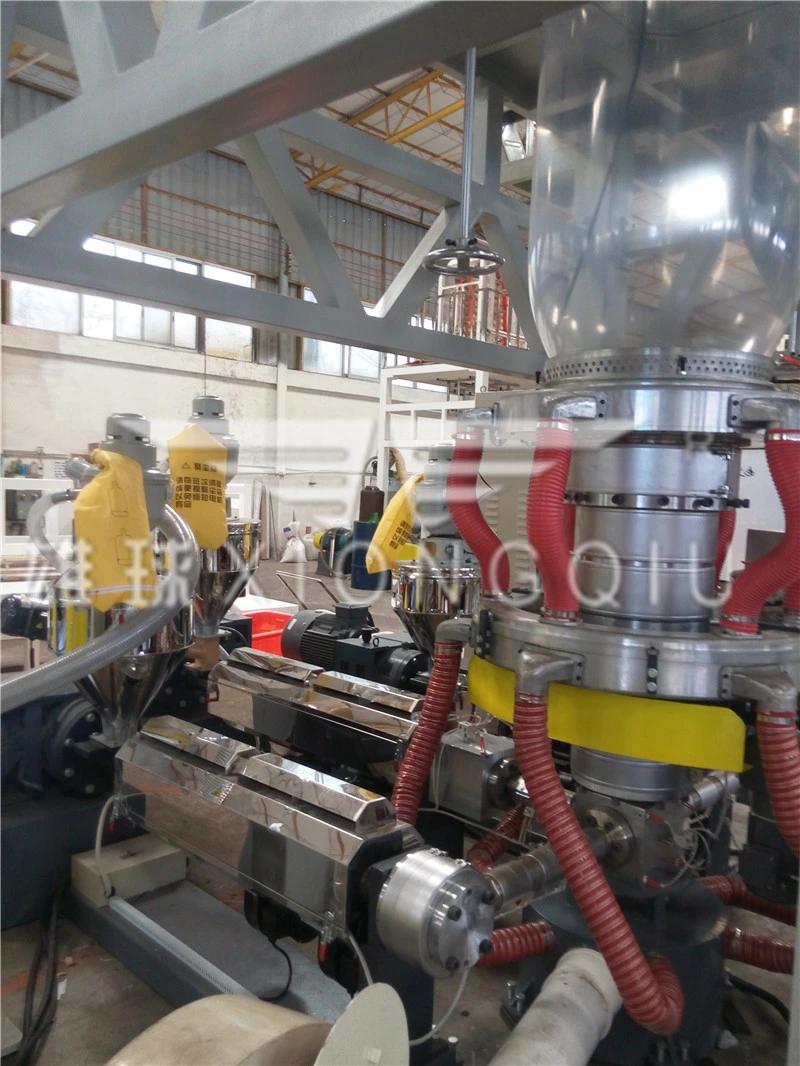

PICTURES FOR REFERENCE:

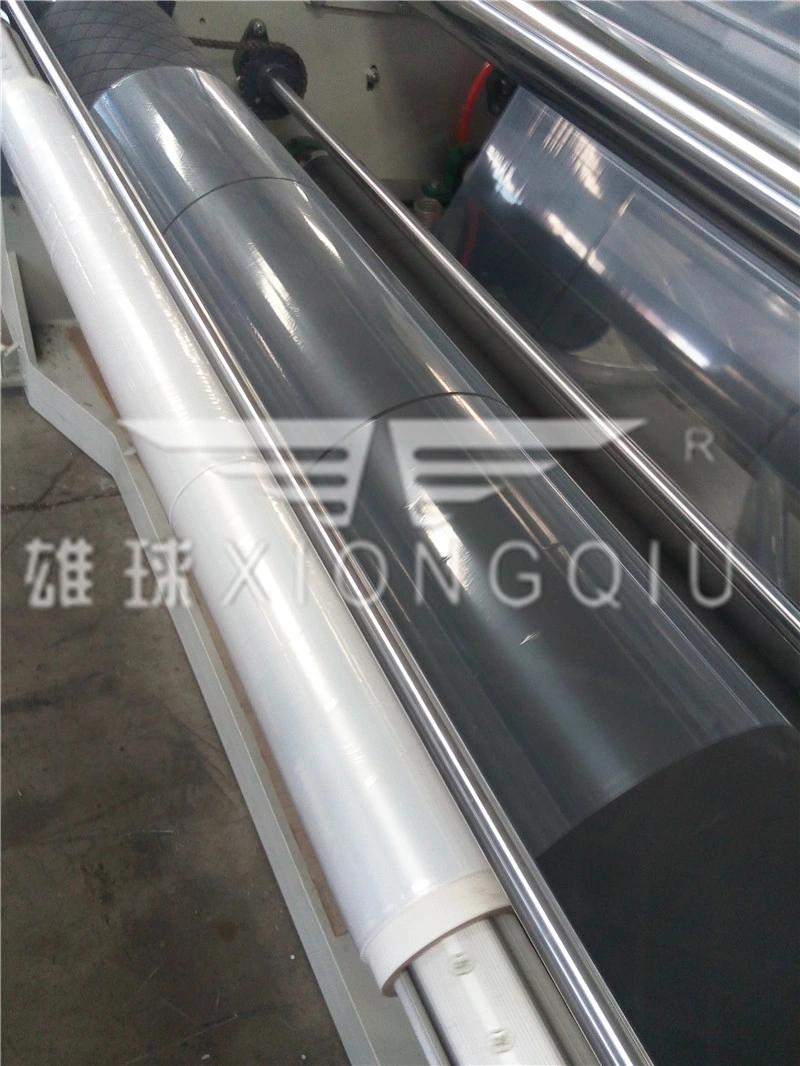

PICTURES FOR REFERENCE:
