• Model NO.：SYS-209ABR-W

Basic Info.

Model NO. SYS-209ABR-W

Product Description

1.Rope Buckle Type

The rope buckle type PP document bag produced by this machine is convenient to open and close, and the seal is firm to prevent the loss of documents.

2. Equipment process

PP roll material-bronzing logo-punching rivets-punching plastic frisbee, automatic threading-bag lid forming-cutting-file bag thermoforming.

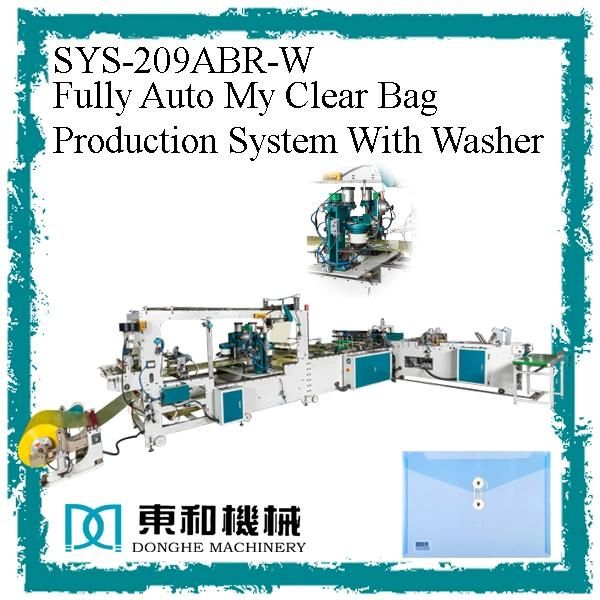

3.Machine Picture


4.Mechanical properties

(1) This machine is specially designed for corded PP document bags. From PP roll to finished product, it can be completed on a fully automatic production line, saving labor costs and increasing production capacity.

(2) This machine adopts high-quality, high-efficiency parts, and cooperates with various control and monitoring systems. It can automatically stop and send an alarm when there is any problem in operation, which can avoid waste of raw materials and protect the machine.

(3) This machine is equipped with a printing electric eye, which can be used as a printing original bag.

(4) The feeding rack adopts automatic edge-aligning device and tension control, which is simple and convenient to operate.

5.Mechanical parameters


Model	SYS-209ABR-W
Product size	A4/FC
Output	35+pcs/min
Power	380V 3PH 50HZ

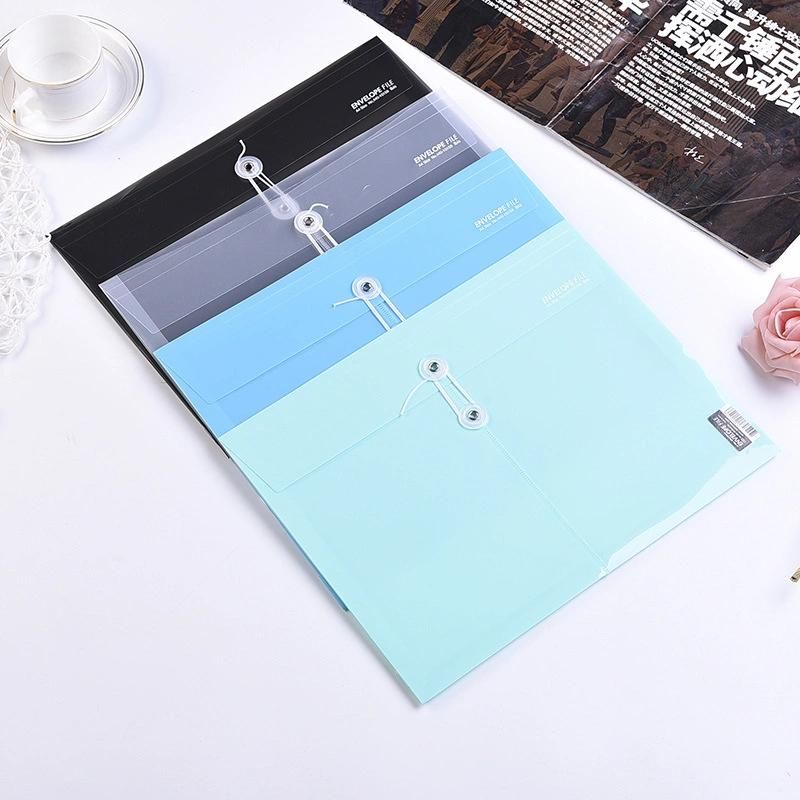

6.Final Product


7.Process Display

(1) Drawstring device:
Features: winding and fixing the opening and closing, rivets to fix the flying disc, strong and firm, and the documents are not easy to fall.

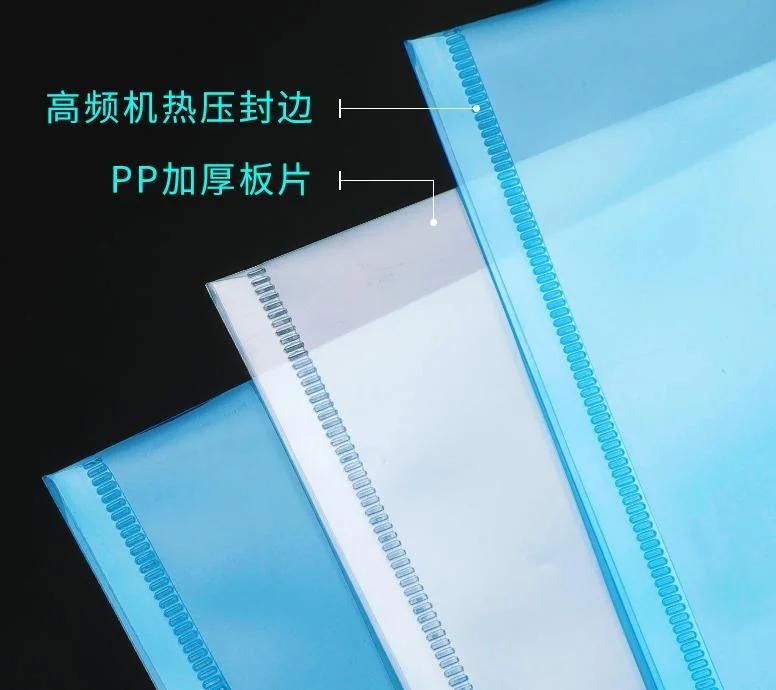

(2) Hot  sealing device:
Features: firm sealing, waterproof and durable, not easy to crack.
