Horizontal-Blown Vertical-Blown Hot Shrink PVC Heat-Shrinkable Tubular Film Blowing ...

Xiongqiu Plastic Machinery Co., Ltd.
  • Type：PVC Film Blowing Machine
  • Raw Material：PVC
  • Maximum Folding Width of Film：1000mm
  • Screw Diameter：65mm*1
  • Automation：Automatic & Manual
  • Computerized：Computerized

Base Info

  • Model NO.：FMC-1300
  • Machine Weight：8T
  • Certification：CE, ISO9001:2008
  • Fmc-1300：L*W*H: 6.5m * 3.5m * 4.5m
  • Voltage：380V 50Hz 3phase
  • Color：as Request
  • Max.Output：55kg,H
  • Warranty：1 Year
  • Film Width：1000mm
  • After-Sales Service：Engineers Available to Service
  • Power(W)：37kw
  • L/D：30:1
  • Weight：6000kg
  • Transport Package：Plastic Film for Container Shipment
  • Specification：single layer
  • Trademark：Xiongqiu Plastic Machinery Co., Ltd.
  • Origin：Foshan, Guangdong Province
  • HS Code：8477300000

Description

PVCthickness0.02--0.10mfilm width400mm500mm600mm700mm1000mm1450mmscrew diameter Φ35mm Φ40mm Φ45mm Φ50mm Φ55mm Φ65mmL/D ratio28:1die diameter Φ40mm Φ50mm Φ60mm Φ70mm Φ80mm Φ120mmmain power11kw15kw15kw18.5kw22kw30kwmax output30kg/h40kg/h50kg/h60kg/h75kg/h95kg/hrewinder wayTorque motor winder
optional equipmentrotary die head / auto up and down

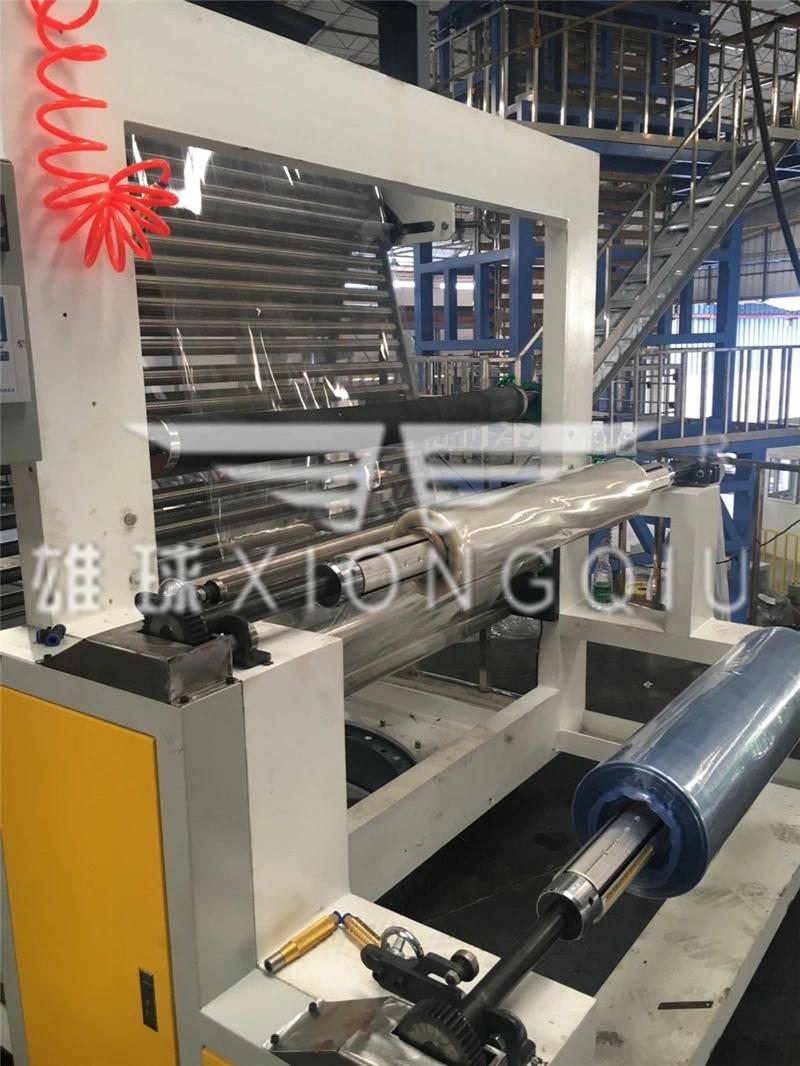

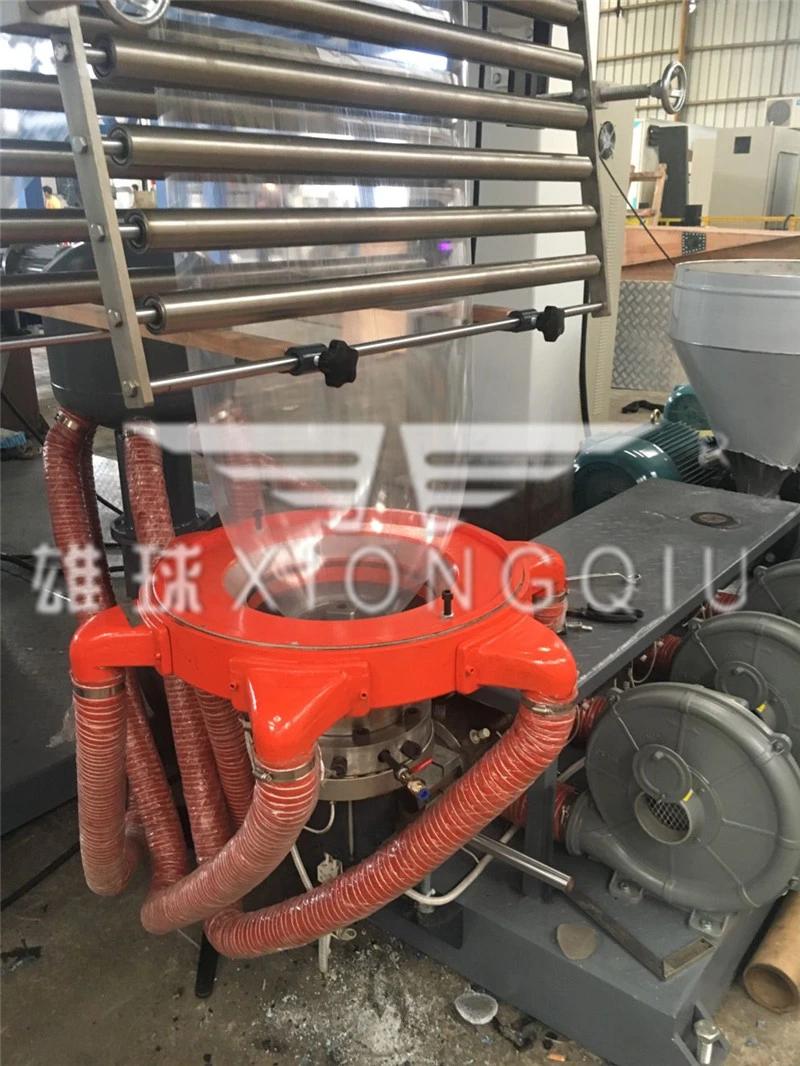

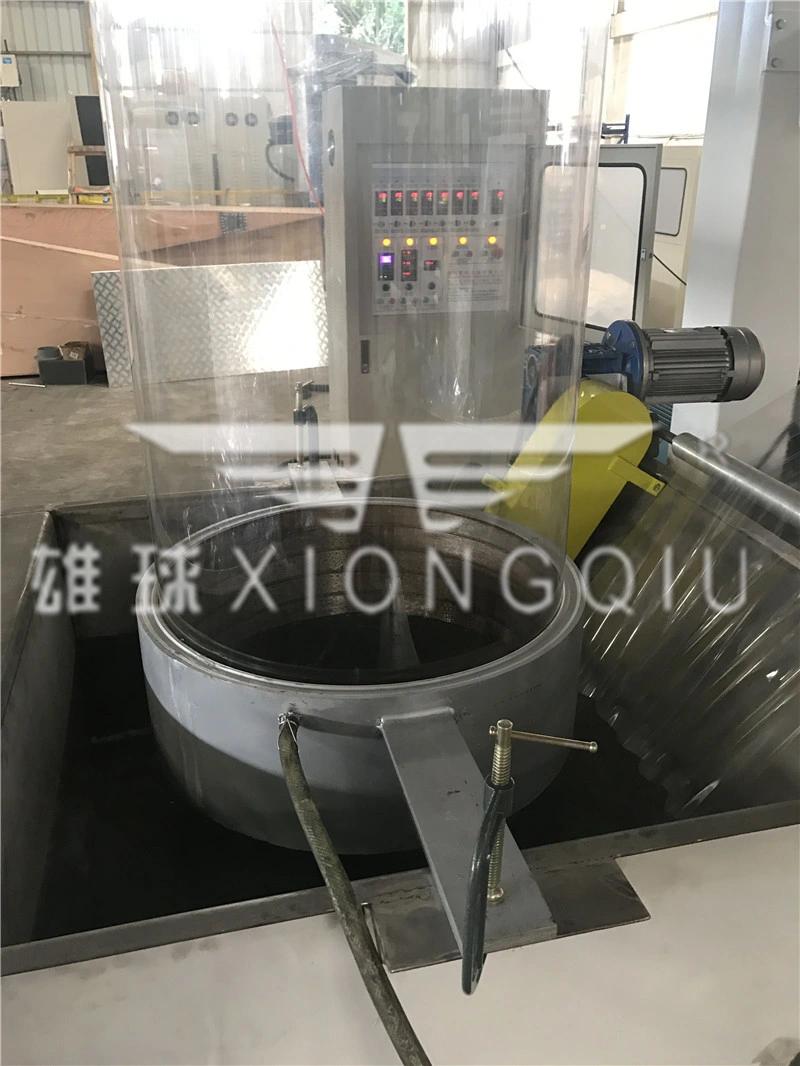

Pictures for reference:


Horizontal-Blown Vertical-Blown Hot Shrink PVC Heat-Shrinkable Tubular Film Blowing Extruder Machine
Horizontal-Blown Vertical-Blown Hot Shrink PVC Heat-Shrinkable Tubular Film Blowing Extruder Machine
Horizontal-Blown Vertical-Blown Hot Shrink PVC Heat-Shrinkable Tubular Film Blowing Extruder Machine
Horizontal-Blown Vertical-Blown Hot Shrink PVC Heat-Shrinkable Tubular Film Blowing Extruder Machine
Horizontal-Blown Vertical-Blown Hot Shrink PVC Heat-Shrinkable Tubular Film Blowing Extruder Machine
Horizontal-Blown Vertical-Blown Hot Shrink PVC Heat-Shrinkable Tubular Film Blowing Extruder Machine
