• Model NO.：AGX,AGS,AGR
• Transport Package：Wooden Pallets
• Specification：AGS850-1200-1500-2000
• Trademark：ACEEXTECH
• Origin：China
• HS Code：84778000
• Production Capacity：10-30 Sets, Year

Basic Info.

Model NO. AGX/AGS/AGR Transport Package Wooden Pallets Specification AGS850-1200-1500-2000 Trademark ACEEXTECH Origin China HS Code 84778000 Production Capacity 10-30 Sets/ Year

Product Description

Waste Plastic Woven Bags PP Jumbo Bag with Shredder machine on Sale

Material of AGX/AGS/AGR Shredder are able to process:


Basic data of ACEEXTECH shredder:

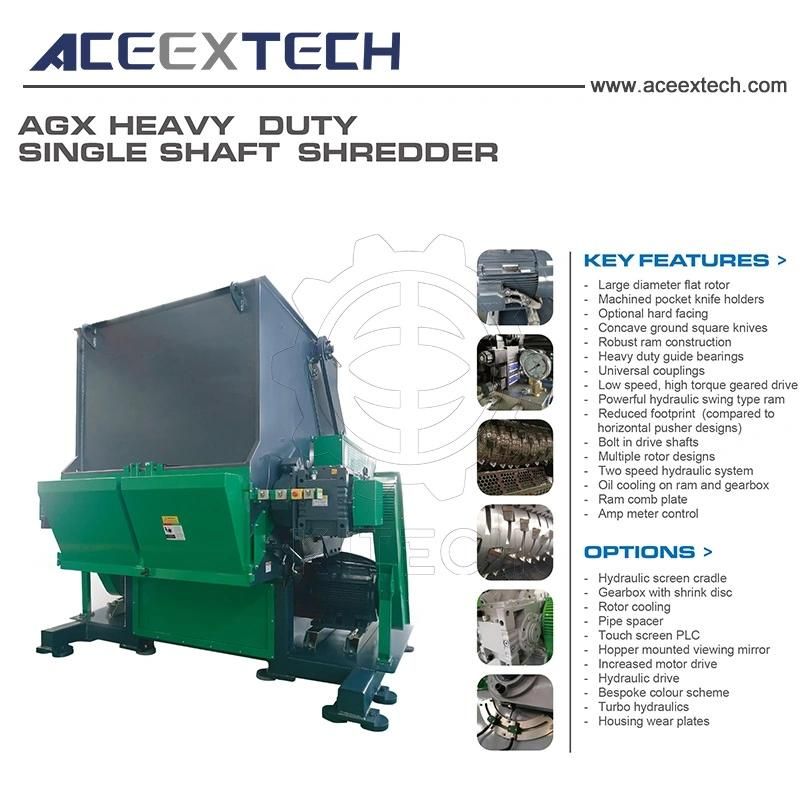

AGX single shaft shredders have been designed with a wide ranges of application and industris in mind such as palstics/rubber/biomass/papper/domestic waste/commercial waste

Item	Unit	AGX1500	AGX2000	AGX3000
Cutting Chamber	mm	2540*1620	2540*2020	2540*2820
Rotor Diameter	mm	750	750	750
Rotor Speed	rpm	52	52	52
Motor Power	kw	2*75	2*90/2*110	2*132
Rotor Knives	pcs	76	96	136
Stator Knives	Row	4	5	7
Hydraulic Ram Power	kw	11	11	11
Screen Size	mm	40-100	40-100	40-100
Shredding Chamber Sizer	mm	1500*1490	1500*1900	1500*2700

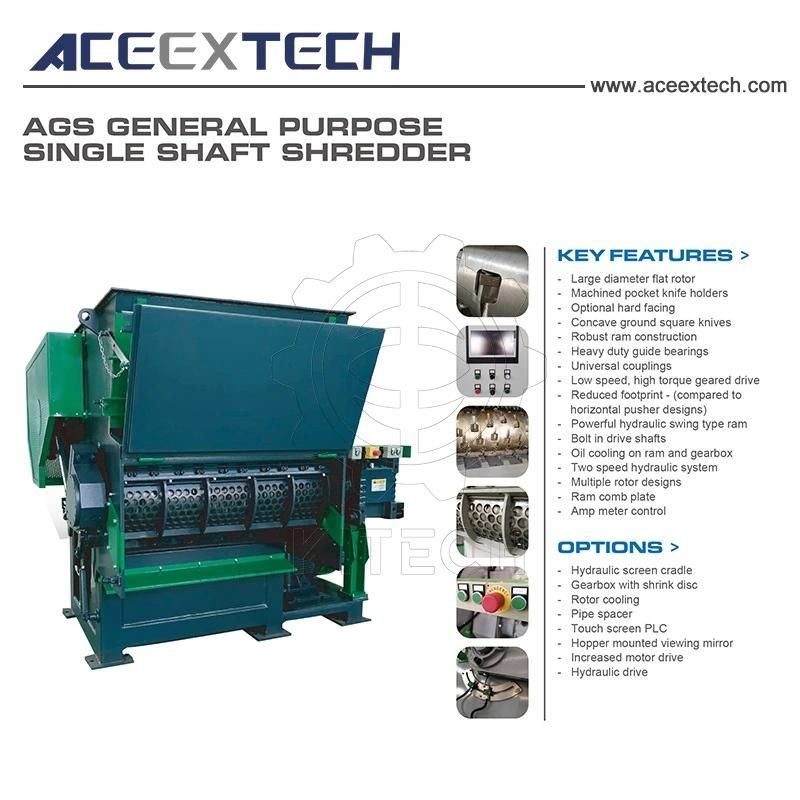

AGS single shaft shredders have been designed with a wide ranges of application and industris in mind such as palstics/rubber/biomass/papper/domestic waste/commercial waste

Item	Unit	AGS850	AGS1200	AGS1500	AGS2000
Cutting Chamber	mm	840*1570	1120*1570	1400*1570	1960*1570
Rotor Diameter	mm	457	457	457	457
Rotor Speed	rpm	74	74	74	74
Motor Power	kw	37/45/55	55	75	2855/2*75
Rotor Knives	pcs	60	81	102	144
Stator Knives	pcs	2*3	2*4	2*5	2*7
Hydraulic Ram Power	kw	3.75	5.6	5.6	5.6
Screen Size	mm	40-100	40-100	40-100	40-100
Shredding Chamber Sizer	mm	800*730	800*1000	800*1290	800*1860

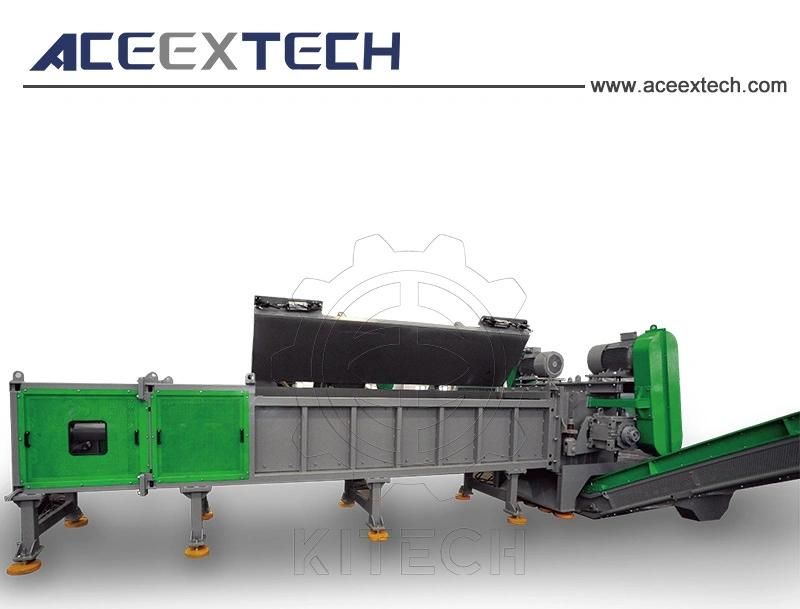

AGR large diameter shredder designed for PE, PP, PVC, double walls corrugated pipe, bundled small caliber pipe and profile

Item	Unit	AGR800	AGR1000	AGR1200
Cutting Chamber	mm	6700*700	6700*870	6700*1300
Rotor Diameter	mm	800	980	1430
Rotor Speed	rpm	40	36	23
Motor Power	kw	2*37	2*45	2*55
Rotor Knives	pcs	60	108	204
Stator Knives	pcs	3	4	5
Hydraulic Ram Power	kw	11	15	15
Machine Weight	mm	11000	20000	25000

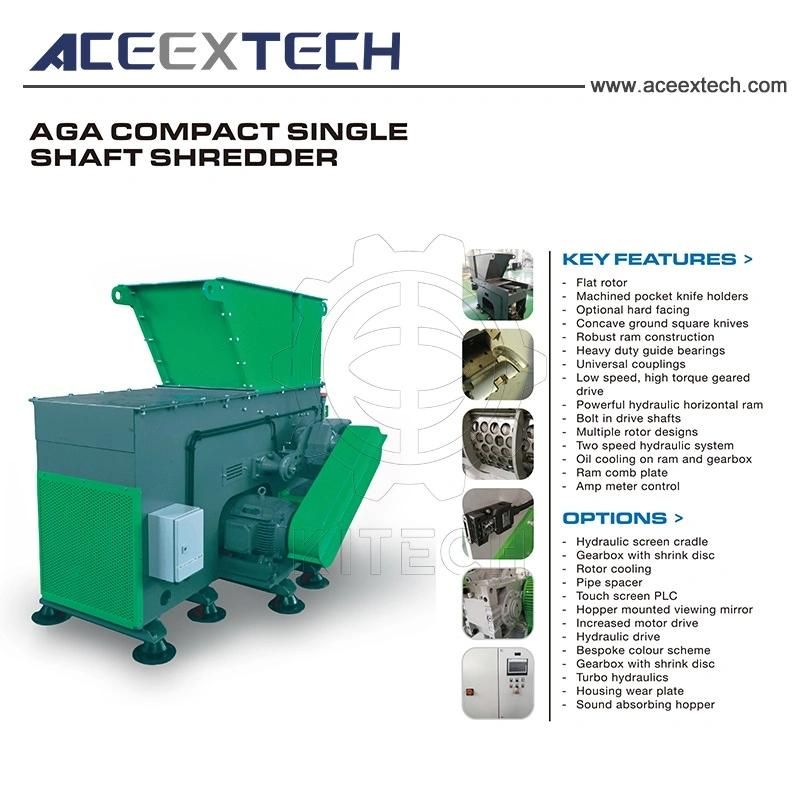

AGA compact single shaft shredders have been designed with a wide range of application and industris in mind such as palstics/rubber/wood/biomass/papper/domestic waste/alterntive fuels(RDF/SRF)

Item	Unit	AGR800	AGR1000
Cutting Chamber	mm	580*900	880*900
Rotor Diameter	mm	251	251
Rotor Speed	rpm	90	90
Motor Power	kw	18.5-22	30
Rotor Knives	pcs	13/26	20/40
Stator Knives	pcs	2	2
Screen Size	mm	15-100	15-100

Machinery configuration:
-Electric cabinet: Rital brand(Germany)
-Motor: Marathon (Joint-venture, USA)
-Gear reducer: SEW brand(Germany)
-Belt: Optibelt(Germany)
-Electric component: Kloeckner Moeller(Germany)
-Safty dwitch: Schmersal (Germany)
-PLC controlling system: Siemens

Main features:
Feeding hopper: Special designed hopper to avoid material flying out. The machine is fitted with a large filling hopper and can be loaded by conveyor belt, fork lift, crane or wheel-loader. This funnel can be adapted to suit individual requirements and guarantees a continuous and economical supply of material without any need for manual assistance.
Hydraulic pusher system: The hydraulically operated pusher feeds the material to be shredded automatically
into the rotor's cutting chamber by load-related controls. The hydraulic system is equipped with high-pressure valves and volumetric flow controls, which can be both set according to the demands of the input materials.

Main drive: Power is transmitted from the electromotors by a belt drive via an oversized gearbox which is located on the shaft end on one side of the rotor.

Rotor: The profiled rotor made of full solid steel has a diameter of 251-1430mm and operates at a speed of
23-90rpm. The concave ground, aggressive and 4-way rotating knives are mounted in the grooves of the profiled rotor with special knife holders. This enables a reduction of the cutting gap between the counter knives and the rotor and guarantees a high flow rate, low power consumption and maximum output of ground material.

Rotor bearing: The extremely robust pedestal bearing housings are mounted outside the machine and separate from the cutting chamber to prevent dust and dirt penetrating into the oversized bearings. This ensures a long life and minimum maintenance.

Motor: AC-motor, three phase, degree of protection IP-54.


Why choose us?

Safety:
Safety cover
All welded steel construction

Humanity:
Automatic PLC control
Hydraulic control for maintenance

EFFICIENCY
Blade with special design which changes three angles to use
Repairing door was designed on the the chamber, Easily to change the blades

Other advantages:
Lower investment cost for a high quality and durable machine;
Low energy consumption with high production output;
Fast machine delivery and installation:
Aceextech produces on an average of 10 sets of plastic machine per month and can deliver the machine faster than most manufacturers.
The regular delivery time of an Aceextech recycling machine is 90 working days.
