Automatic 120PCS/Min Cream/Toothpaste/Medical Oinment Laminate Tube Producing Line-2017
Nantong Sunway Co., Ltd.- Product Type：Plastic Composite Pipe
- Screw No.：Not Screw Type
- Automation：Automatic
- Computerized：Computerized
- Certification：ISO9001:2008
- Customized：Customized
Base Info
- Model NO.：B. GLS-III
- Condition：New
- Welding Type：Hot Temperature
- Speed：Changing According with Tube Diameter and Length
- Transport Package：Wooden Case
- Specification：4810*850*1700mm
- Trademark：Sunway
- Origin：Jiangsu, China
- Production Capacity：30 PCS,Month
Description
VTV Motor manufacture Co.,LTDAdjustable speed motor YN90-20, 20W, 220V (Vertical) Touch screen DOP-A57BSTD Globoidal cam protractor RHH110F-8-120 left-handed Shandong Sakers Custom made Shanghai Qigang The main pneumatic components

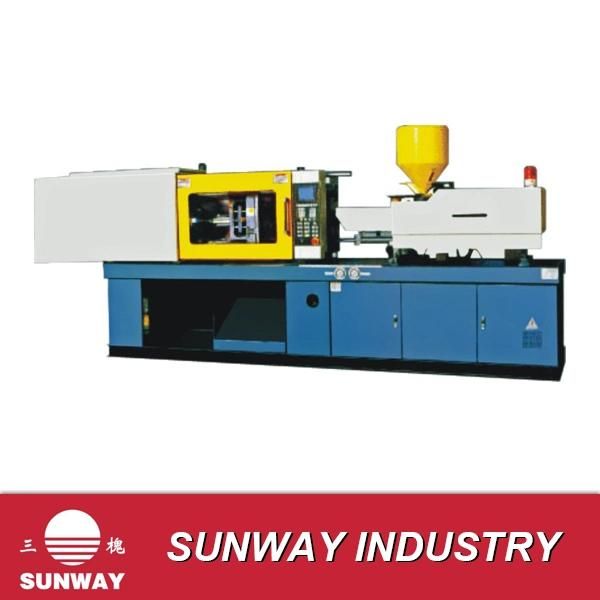

6. B.SJ-1080 Cap Making Machine (160g)
Mould Size Diameter (mm): 12.7, 16, 19, 22, 25, 28, 30, 32, 35, 38, 50, and 60 (Conical, nail, stand-up and flip top cap for choice)
6.1 Introduction
Injection moulding machine applies high responsive proportional variable pump system to replace the traditional 3-way proportional valve control mode , thus to enable the high match of power between hydraulic out put and machine effective operation which avoids energy loss from high pressure throttle , flow , compared with normal constant pump drive machine the variable pump drive machine is able to save . In addition , the machine less heating enables save of cooling water by 30% , debasing peripheral noise and extension of service life hydraulic sealing part sand oil to minimize operation and maintenance cost and meanwhile to meet the strict international environment protective policy finally , the amount of the output increases obviously.
6.2 Main Parameters
Final Product
Empty lami-tubes mainly used for packing toothpaste, medicine, body lotion and cream-like daily goods.
6. B.SJ-1080 Cap Making Machine (160g)
Mould Size Diameter (mm): 12.7, 16, 19, 22, 25, 28, 30, 32, 35, 38, 50, and 60 (Conical, nail, stand-up and flip top cap for choice)
6.1 Introduction
Injection moulding machine applies high responsive proportional variable pump system to replace the traditional 3-way proportional valve control mode , thus to enable the high match of power between hydraulic out put and machine effective operation which avoids energy loss from high pressure throttle , flow , compared with normal constant pump drive machine the variable pump drive machine is able to save . In addition , the machine less heating enables save of cooling water by 30% , debasing peripheral noise and extension of service life hydraulic sealing part sand oil to minimize operation and maintenance cost and meanwhile to meet the strict international environment protective policy finally , the amount of the output increases obviously.
6.2 Main Parameters
| Model | B·JS1080×1 |
| Injection Unit | A B C |
| Screw Diameter mm | 34 36 40 |
| Screw L/D Ratio L/D | 22.2 21 18.9 |
| Shot Size(Theoretical) cm3 | 147 165 204 |
| Injection Weight(g) ps | 134 150 185 |
| Injection Weight(oz) ps | 4.7 5.3 6.5 |
| Injection Rate g/s | 85 95 110 |
| Plasticizing Capacity g/s | 14 16 20 |
| Injection Pressure Mpa | 205 183 148 |
| Screw Speed r/min | 200 |
| Clamping Unit | |
| Clamp Tonnage KN | 1080 |
| Toggle Stroke mm | 340 |
| Space Between Tie Bars mm | 375*375 |
| Max. Mold Height mm | 380 |
| Min. Mold Height mm | 150 |
| Ejector Stroke mm | 100 |
| Ejector Tonnage KN | 33 |
| Other | |
| Max. Pump Pressure Mpa | 16 |
| Pump Motor Power kW | 11 |
| Heater Powder kW | 5.9 |
| Machine Dimensions(L*W*H) m | 4.2×1.3×1.75 |
| Machine Weight(Appoximat) t | 3.25 |
Final Product
Empty lami-tubes mainly used for packing toothpaste, medicine, body lotion and cream-like daily goods.
