• Model NO.：SJ65x30
• Condition：New
• Machine Color：as Request
• Raw Material：PVC Granule
• Extruder Type：Single Screw Extruder
• Inverter Brand：ABB or FUJI
• Contactor：Simens
• Temparture Control Meter：Omron
• Screw Material：38crmoaia
• Oversea Service：Availlable
• Warranty：One Year
• Packing Details：One 20′ Gp
• Transport Package：in Wooden Case
• Specification：CE, ISO
• Trademark：Suke
• Origin：Qingdao
• HS Code：847780000
• Production Capacity：50 Sets Per Year

Basic Info.

Model NO. SJ65x30 Condition New Machine Color as Request Raw Material PVC Granule Extruder Type Single Screw Extruder Inverter Brand ABB or FUJI Contactor Simens Temparture Control Meter Omron Screw Material 38crmoaia Oversea Service Availlable Warranty One Year Packing Details One 20′ Gp Transport Package in Wooden Case Specification CE, ISO Trademark Suke Origin Qingdao HS Code 847780000 Production Capacity 50 Sets Per Year

Product Description

PVC Steel Wire Reinforced Soft Pipe Extrusion Machine Line



+++ Finished Product +++:

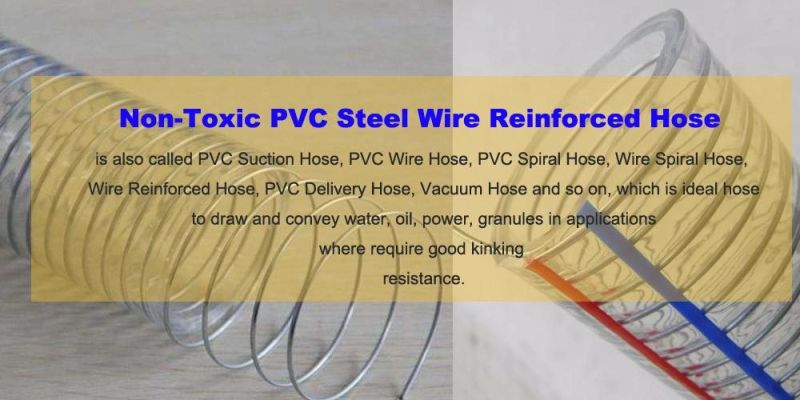

    The hose is widely used for drawing and conveying water,oil and powder in factories,agriculture,engineering,foodstuffs and sanita-tion lines.
    This hoes,with steel wire screwing inlaid in the hose,is light,transparent,with small bending radius.It has good adaptability to hard weather conditions and minus pressure.
    With colorful symbol lines on the surface of the hose,it can be more beautiful.
WORKING TEMPERATURE:-5ºC~65ºC



+++ Equipment List +++:

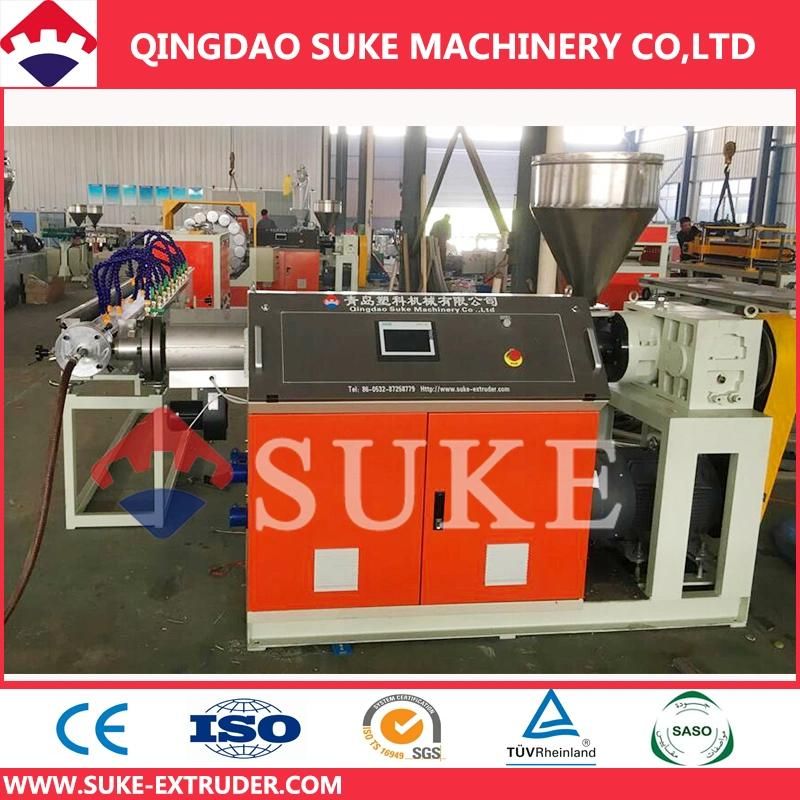

1. Single Screw Extruder

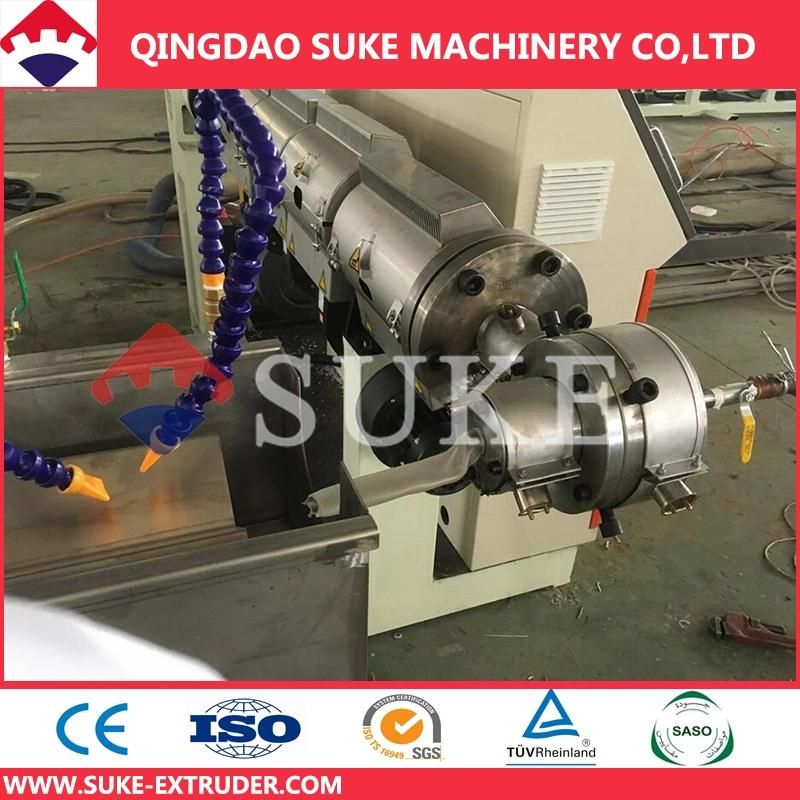

2. Die Heads
3. Spiral Steel Wire Forming Machine
4. Haul-off Machine
5. Water Cooling Tank

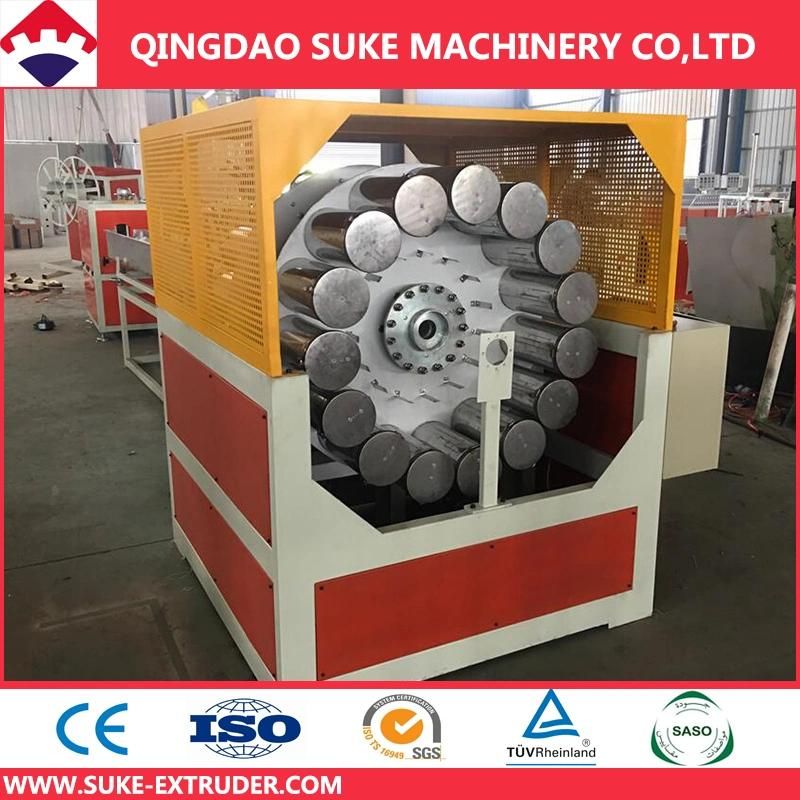

6. Single/Two Position Colier
7. Main Electircal Components
8. Printer




+++ Machine Features +++ :
1). The whole production line adopt to automatic control . The worker directly control forming speed/hauling speed /production speed . It can save a lot of time and improve production efficiency .
2). The expected production from the last line of automatic stacker .
3). High reliability, easy operation , easy maintenance .
4). Adopt all electric parts which brand is SIEMENS/OMRON.
5). Use all stainless steel which type is 304.
6). Material of screw and barrel: 38CrMoAlA, nitrogen quenched which the thickness layer 0.4-0.7mm; Hardness of screw barrel: >940 HV; Unique grooved structure feed bush with force cooling system that is specially designed by Friend co. which can increase output at 15-20%.
7).The water cooling tank of this line has a set of automatically control water temperature and water level . it can save lot of water and improve production efficiency.
8). 1 or 2 person are enough to operation whole line.
9). As request, two position winding machine is avaliable, which much save time.
