• Model NO.：FC
• Computerized：Computerized
• Certification：ISO9001:2008, SGS
• Working Temperature：0-196 Below Zero
• Materials：Stainless Steel
• Final Materials Size：60-300mesh
• Transport Package：Wood Box
• Specification：350,450
• Trademark：HYWELL
• Origin：China
• HS Code：8437800000
• Production Capacity：3-5 Sets,Month

Basic Info.

Model NO. FC Computerized Computerized Certification ISO9001:2008, SGS Working Temperature 0-196 Below Zero Materials Stainless Steel Final Materials Size 60-300mesh Transport Package Wood Box Specification 350/450 Trademark HYWELL Origin China HS Code 8437800000 Production Capacity 3-5 Sets/Month

Product Description

1. Product Description
Grinded materials will be classified and collected by air screen cone type classifier, the grinded material or powder which have not reached the material fineness degree will go back the grinding chamber for re-grinding, most of the cool air will return back to grinding chamber for recycling usage.
This FC Series High Oil Materials Low Temperature Crusher / Pulverizer using liquid nitrogen to lower the input material temperature to material embrittlement condition firstly, then go to the grinding chamber, the input materials were throughly pulverized through blade wheel's high speed rotating, and the comprehensive force like mutual repeatedly impact, crash, shear and friction between the materials and blades, fluted disc, materials and materials.

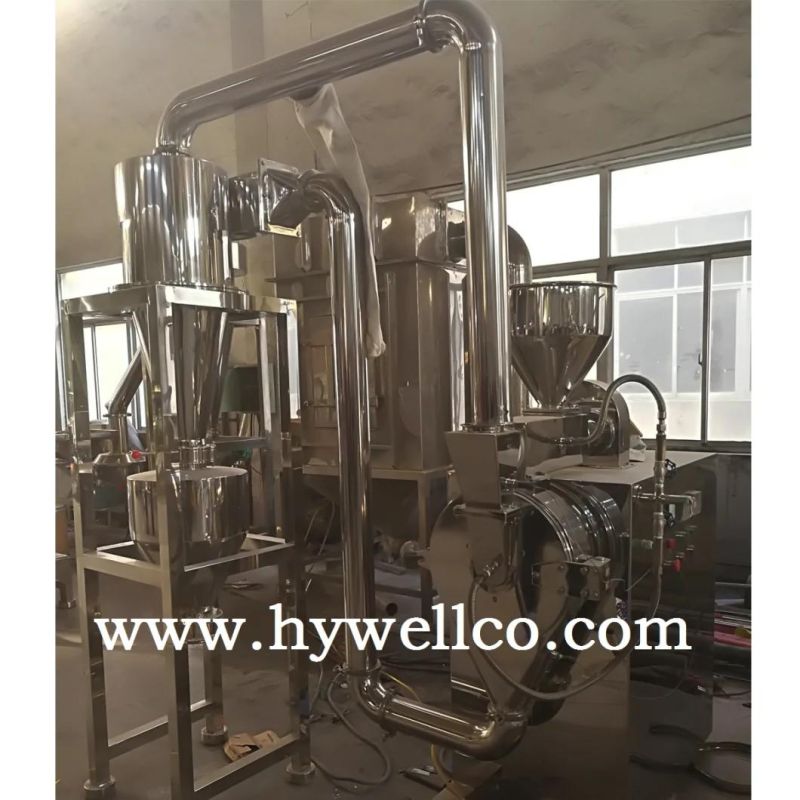

The machine is composed of storage pre-frozen cylinder, spiral propeller, low temperature pulverizer, cyclone separator, dust filter and electric cabinet.

2. Features
1) Optimal retention of aroma and strength, compared with common grinding, where approx.15-43% essential oils are lost, while the loss with cryogenic grinding is minimal(approx.3-10%).
2) High grinding fineness, low energy consumption, output is 2-3 times than common grinders.
3) According to the temperature of material embrittlement point, you can adjust the best crushing temperature, energy saving.
4) Material explosion-proof, anti-oxidation etc.
5) Trouble-free stable processing.
6).Compact structure, small space occupation, low installation power, wide application, and high performance cost.
7). Control system has more choices, such as push button , HMI+PLC and so on.
8). Machine materials : AISISUS304 , AISISUS316L, and other material .
9). For the electrical component , we mainly use international brand such as ABB ,Siemens or Schneider.

3. Main Application:
This machine can be widely used in pharmaceutical, food, chemical, defense, scientific research and industry material crushing, showed toughness at room temperature, especially heat-sensitive substances, fine chemicals, in Western medicine, flora and fauna and, unable to crush the material.

Attention to order
1. When order the FC series Cryogenic Pulverizer, Client need to supply the materials name.
2. When order the FC series Cryogenic Pulverizer, Client need to supply the materials characteristic that include materials HP and so on.
3. When order the FC series Cryogenic Pulverizer, Client need to supply how much kinds materials size need to separated
4. When order the FC series Cryogenic Pulverizer, Client need to supply the each kinds separated materials size.
5. When order the FC series Cryogenic Pulverizer, Client need to decide which kinds steel for machine-304 stainless steel or 316L stainless steel (Hywell also give suggestion for the stainless steel model base the materials HP).

Parameter:


Model	350	450
Grinding powder	7.5kw	45KW
Feeder powder	0.75kw	1.5kw
Working temperature	range from 0-196ºC below zero	range from 0-196ºC below zero
Materials size	60-120mesh (sieve model)	100-300mesh Food and herb medicine:100-300 mesh Rubber and plastic: 60-200 mesh
Capacity	100-300kg	100-600 kg/h
Refrigerant	liquid nitrogen	liquid nitrogen
Material	SUS 304	SUS 304


Temperature


Item	Pulverizing temperature	Pulverizing fineness(mesh)
Nylon	-80	60-100
Rubber	-70	60-100
Soybean	-120	200-300
Wax	-16	100-150
