• Model NO.：pex al pex
• Condition：New
• Pipe Diameter：16mm-32mm,16mm-63mm
• Production Line Length：31mx3.5mx3.0m
• Inverter：ABB Brand
• Electrics：Schneider
• Computer：Siemens
• Engineer Service：Engineer Is Available for Overseas Service
• Line Speed：3m,Min-9m,Min
• Warranty Time：One Year
• Pipe Standard：ASTM1282
• Exported Countries：Algeria, Ukraine, Russia, Iran, Jordan, Korea,
• Transport Package：1X40 Gp Container, 8tons
• Specification：SJ50,33, SJ45,30, inner die head, outer die head
• Trademark：KAIDE
• Origin：China
• HS Code：8477800000
• Production Capacity：200 Sets Per Year

Basic Info.

Model NO. pex al pex Condition New Pipe Diameter 16mm-32mm,16mm-63mm Production Line Length 31mx3.5mx3.0m Inverter ABB Brand Electrics Schneider Computer Siemens Engineer Service Engineer Is Available for Overseas Service Line Speed 3m/Min-9m/Min Warranty Time One Year Pipe Standard ASTM1282 Exported Countries Algeria, Ukraine, Russia, Iran, Jordan, Korea,,, Transport Package 1X40 Gp Container, 8tons Specification SJ50/33, SJ45/30, inner die head, outer die head Trademark KAIDE Origin China HS Code 8477800000 Production Capacity 200 Sets Per Year

Product Description

Ultrasonic Overlap Welding AL-Plastic Composite Pipe Line, The Al-Plastics Overlapped Welding machine including below lines: PEX-AL-PEX Pipe Line, PERT-AL-PERT Pipe Line, PPR-AL-PPR Pipe Line,PE-AL-PE Pipe Line.


Technical Data

Line Model	Extruder Model	L/D	Production Scope	Production Speed	Nominal Power
SJ-45	SJ-45/45/30	30/25/25:1	Ф16-32mm	8-9m/min	93KW
SJ-65	SJ- 65/65/30	33/33/25:1	Ф16-63mm	8-9m/min	154KW

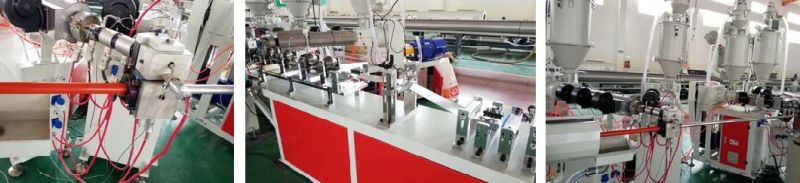

High Efficient Extruder
(1) This high efficient extruder of this Al-plastic composite pipe line is specially independently designed by KAIDE company.
Consists of :
(2) Inner Plastic Layer Extruder, Inner Glue Layer Extuer, Outer Plastic Layer Extruder, Outer Glue Layer Extruder

Ultrasonic Overlap Welder
(1) The Aluminum pipe is formed by ultrasonic overlapped welding. It uses high quality and well-known brand welder, with even welding seam and good quality.

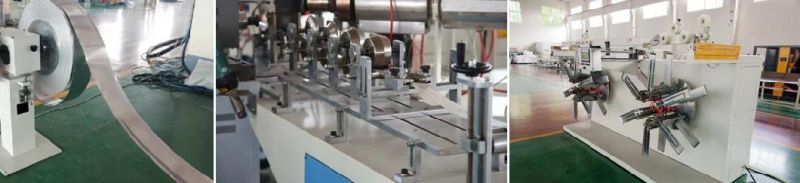

Aluminum pipe forming moulds
(1)The technology has been further developed based on original production machine technology.
(2)The Aluminum pipe forming molds and co-extrusion die head molds have been optimized and manufactured by imported high precise CNC machine, which have greatly increased the pipe forming accuracy and production speed.

PLC control system of pex al pex pipe machine
The five layers aluminum plastic pipe line adopts original Siemens new generation PLC control system with full color screen, which ensures the high speed synchronous control and reliable operating of the whole production line.

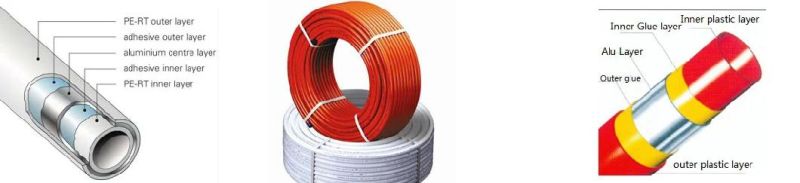

(1) It is easy to install and can be buried in walls and concrete. With a simple metal detector, the installation can be detected. Therefore, the pipe is very suitable for cold and hot water pipeline system in industrial and civil buildings.
(2)Indoor gas pipeline system,The longitudinally welded aluminum pipe is clamped in the middle of the plastic, so that the universal pipe can  withstand a higher working pressure, so that the gas (oxygen) permeability is zero, and the length of the pipe can reduce the joints and avoid leakage. Therefore, this kind of pipe is safe and reliable for compressed air, gas, oxygen and other gas transmission lines.
(3) Solar air conditioning piping system.Aluminum plastic composite pipe is not easy to frost, good insulation, improve the efficiency of solar energy and air conditioning system
