• Model NO.：Plastic Film Squeezing Machine
• Computerized：Computerized
• Certification：CE, SGS
• Name：Plastic Film Squeezing Machine
• Color：Custom-Made
• Motor：Siemens
• Inverters：ABB
• Handle：PP Pet Plastic
• Core Part：PVC Extruder
• Feeding Type：Screw Conveyor
• City：Zhangjiagang
• Screw Type：38CrMoAl
• Material Transfer：Screw Loader
• Machine Material：Hard Steel
• Cutting Type：Saw
• Temperature Control：Omron
• Contactor：Schneid
• Apply：Plastic Film Squeezer, Squeezing Machine
• Transport Package：Sea Packing
• Specification：125kg,h
• Trademark：WEDO
• Origin：China
• HS Code：847780000
• Production Capacity：10 Sets

Basic Info.

Model NO. Plastic Film Squeezing Machine Computerized Computerized Certification CE, SGS Name Plastic Film Squeezing Machine Color Custom-Made Motor Siemens Inverters ABB Handle PP Pet Plastic Core Part PVC Extruder Feeding Type Screw Conveyor City Zhangjiagang Screw Type 38CrMoAl Material Transfer Screw Loader Machine Material Hard Steel Cutting Type Saw Temperature Control Omron Contactor Schneid Apply Plastic Film Squeezer, Squeezing Machine Transport Package Sea Packing Specification 125kg/h Trademark WEDO Origin China HS Code 847780000 Production Capacity 10 Sets

Product Description

Plastic film squeezer, squeeze dryer, squeezing machine
Plastic film squeezer, squeeze dryer, squeezing machine is used for dewatering drying the washed PE LDPE HDPE film/ PP woven bags etc. It adopt squeezing & dehydration principle, this squeezer machine can quickly and effectively remove the water. Therefore, that can increase the following Granulating process.
After plastic film squeeze dryer machine, the final products' moisture ≤5%, can put into extruder directly. This plastic squeezing machine can save 3 machines after washing line compare with the traditional recycling line. Save 1 dewatering machine, 1 drying system, and 1 agglomerator. It can save more than100kw/h for one line. Therefore, this plastic squeezer machine is an economical and necessary machine for the PP PE recycling machine line.

Technical Parameter of Plastic film squeezer, squeeze dryer, squeezing machine:

Model	WD-SD300	WD -SD500	WD -SD800
Main power	55KW	75KW	90KW
Capacity	300KG/H	500KG/H	800KG/H

Feature of Plastic film squeezer, squeeze dryer, squeezing machine

1. Suitable for all kinds PP, PE plastic films bags washed materials
2. This Waste Plastic Film Squeezing Dryer is especially for plastic film, plastic bags, woven bags,
3. Adopt latest squeezing and heating system, raw materials heated in to half-plasticized, then cut into small pieces for better granulation
4. Compared with ordinary heating system, this machine sharply save electricity, final moisture less than 3%
5. Replace the 1 dewatering machine, 1 hot drying systerm in the washing recycling machine line, and 1 agglomerator in granulator recycling machine line.

Photos of Plastic film squeezer, squeeze dryer, squeezing machine

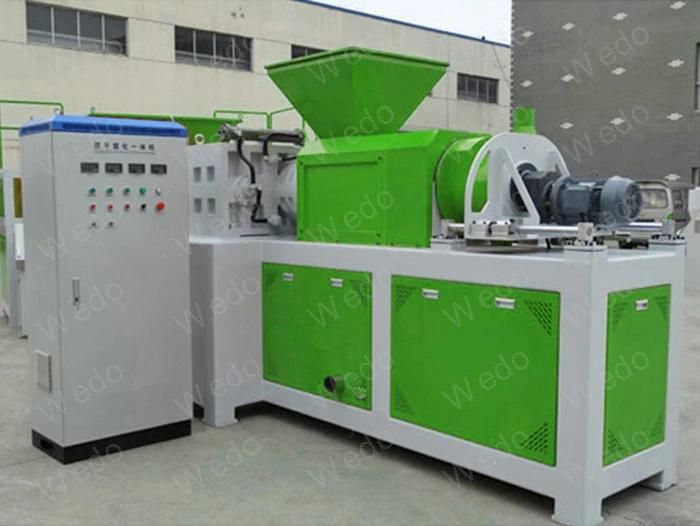

Over view of Plastic film squeezer, squeeze dryer, squeezing machine

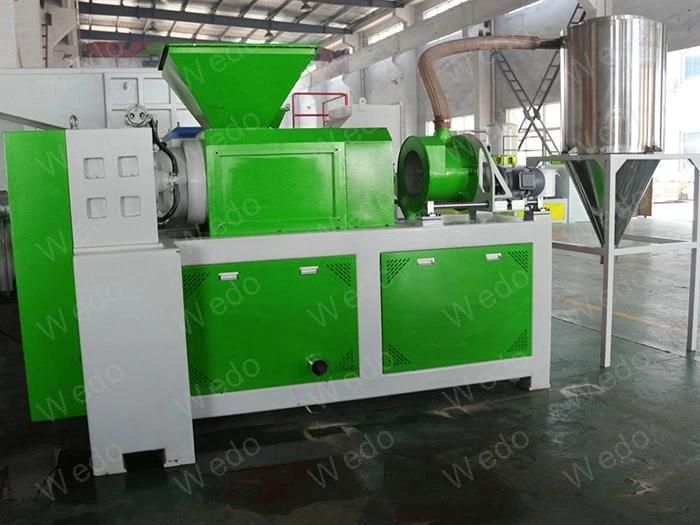

front of Plastic film squeezer, squeeze dryer, squeezing machine

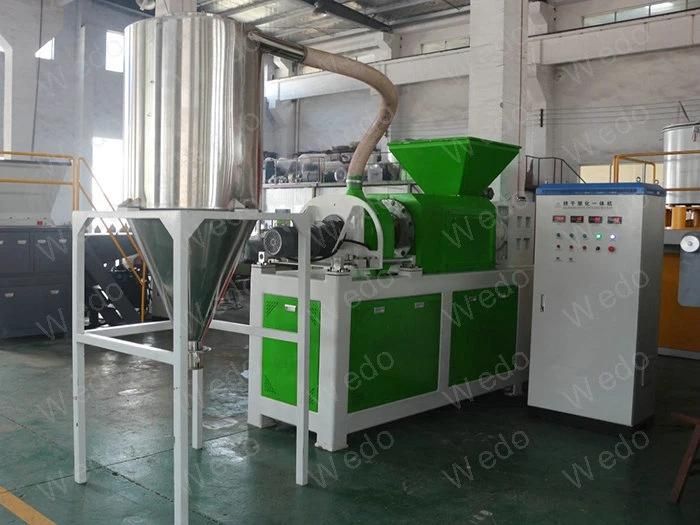

total of Plastic film squeezer, squeeze dryer, squeezing machine
with electirc contol in Plastic film squeezer, squeeze dryer, squeezing machine

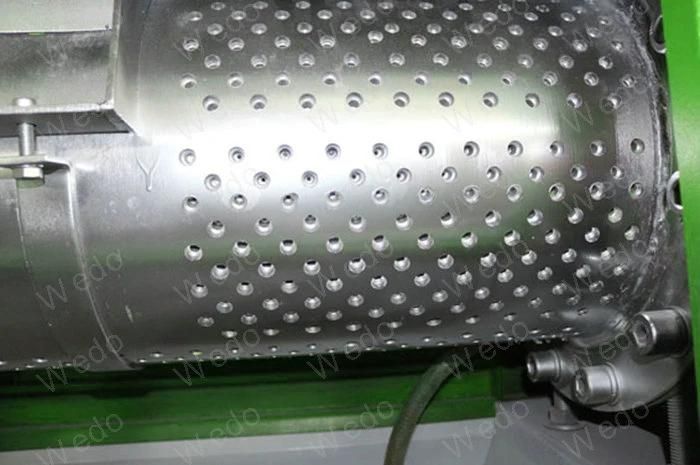

The barrel of Plastic film squeezer, squeeze dryer, squeezing machine
the cutting die head of Plastic film squeezer, squeeze dryer, squeezing machine

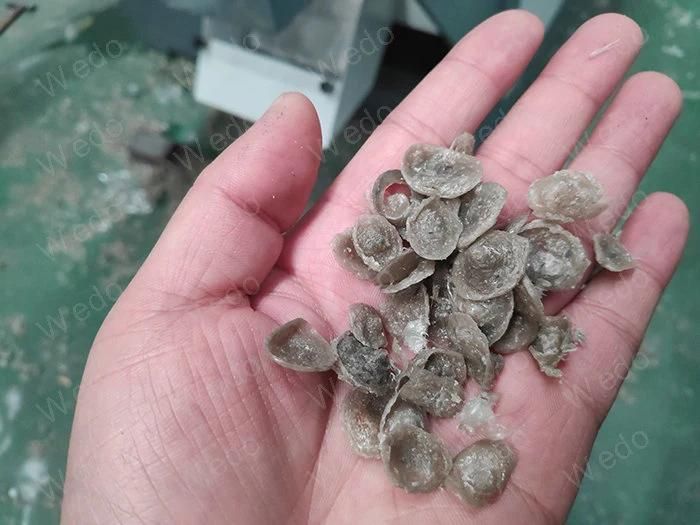

the final product get from Plastic film squeezer, squeeze dryer, squeezing machine

date of Plastic film squeezer, squeeze dryer, squeezing machine

Motor power:	55KW.frequency control
Diameter:	206-180mm
Speed of screw:	60-70rpm
Gear box:	250.hard finishing treatment
Screw and barrel:	cone-shaped by specially designed
Diamensions:	2600*1900*1800mm
Moisture:	<5%
Capacity:	400-500kg/h
With electric control panel:	TECO inverter.Schneid contactors


 Wedo Produce steps:
Wedo have a fully step for the Plastic film squeezer, squeeze dryer, squeezing machine producing before packing and shipping, this ensure the plastic machine will delivery in good quality, and custerm will get good machine.


Wedo service:
We do best service for you in Plastic film squeezer, squeeze dryer, squeezing machine




Any further about the Plastic film squeezer, squeeze dryer, squeezing machine, please contact us timely we will give your professional fully support.
