• Model NO.：Corrugated Pipe Machine
• Customized：Customized
• Condition：New
• After-sales Service：Engineer Commissioning
• Name：Corrugated Pipe Production Machine Line
• Color：Custom-Made
• Motor：Siemens
• Inverters：ABB
• Handle：PP Pet Plastic
• Core Part：PVC Extruder
• Feeding Type：Screw Conveyor
• City：Zhangjiagang
• Screw Type：38CrMoAl
• Material Transfer：Screw Loader
• Machine Material：Hard Steel
• Cutting Type：Saw
• Temperature Control：Omron
• Contactor：Schneid
• Apply：Corrugated Pipe Production
• Transport Package：Sea Packing
• Specification：125kg,h
• Trademark：WEDO
• Origin：China
• HS Code：847780000
• Production Capacity：10 Sets

Basic Info.

Model NO. Corrugated Pipe Machine Customized Customized Condition New After-sales Service Engineer Commissioning Name Corrugated Pipe Production Machine Line Color Custom-Made Motor Siemens Inverters ABB Handle PP Pet Plastic Core Part PVC Extruder Feeding Type Screw Conveyor City Zhangjiagang Screw Type 38CrMoAl Material Transfer Screw Loader Machine Material Hard Steel Cutting Type Saw Temperature Control Omron Contactor Schneid Apply Corrugated Pipe Production Transport Package Sea Packing Specification 125kg/h Trademark WEDO Origin China HS Code 847780000 Production Capacity 10 Sets

Product Description

Plastic corrugated pipe extrusion production making machine plastic pipe corrugator machine


Description of PP PE HDPE PVC plastic corrugated pipe extrusion production making machine line:
In order to meet the demand of plastic pipe market, Wedo machinery designed and developed this Plastic Corrugated Pipe making machine by absorbing advanced technology from foreign countries plastic machinery industry.

This plastic corrugated pipe machine is the latest study achievement in the plastic in the plastic extrusion field. This extrusion line is suitable for the high speed extrusion of PP PE PVC material. PP PE PVC plastic corrugated pipe making machine adopts one single or conical twin screw extruder directly extruding and forming technology, human-machine interface control system. It makes high automation degree, reliable quality and stable production become true. And this Corrugated Pipe production line wins our home and abroad customers' good reputation.

Photos of PP PE HDPE PVC plastic corrugated pipe extrusion production making machine line
extruder for PP PE HDPE PVC plastic corrugated pipe extrusion production making machine line

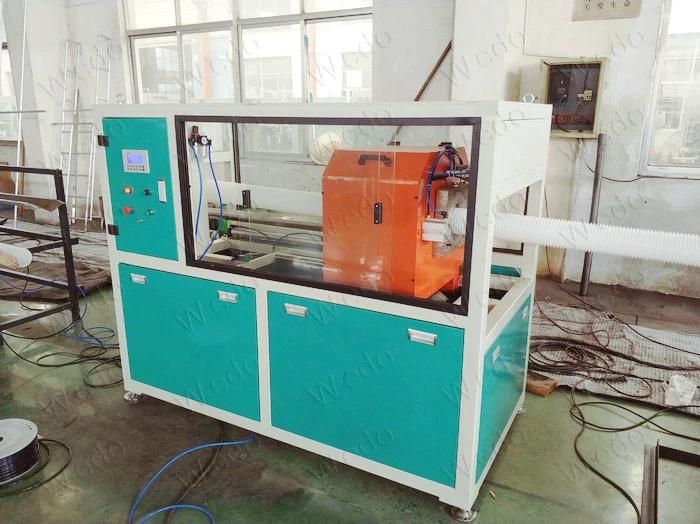

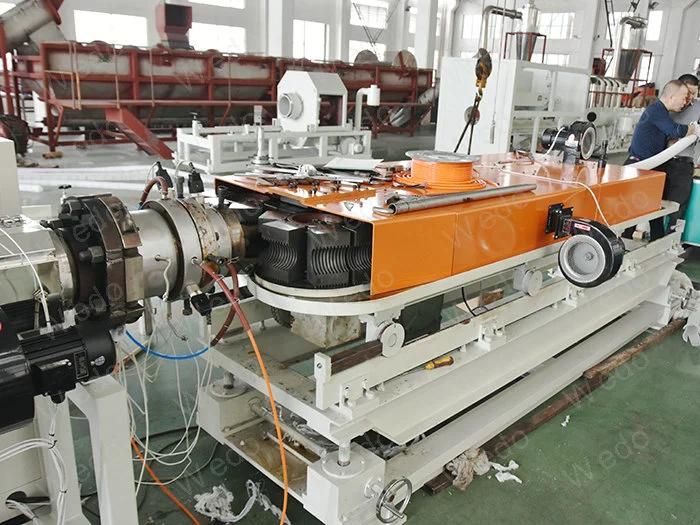

mold and formming machine of PP PE HDPE PVC plastic corrugated pipe extrusion production making machine line

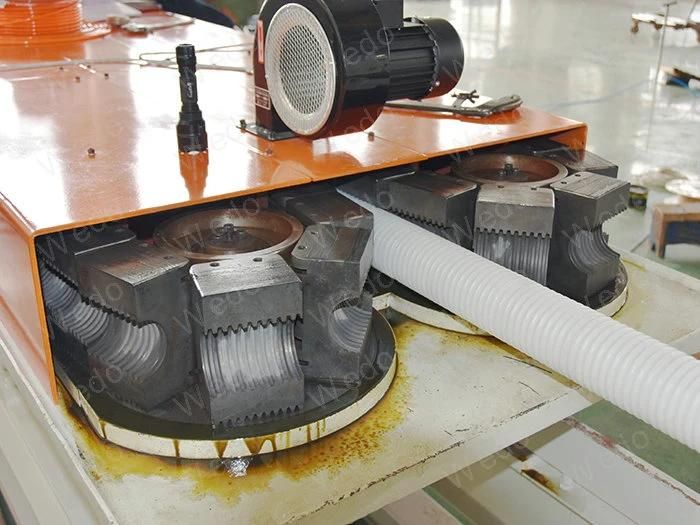

forming block of PP PE HDPE PVC plastic corrugated pipe extrusion production making machine line

Chip free Cutting machine of PP PE HDPE PVC plastic corrugated pipe extrusion production making machine line

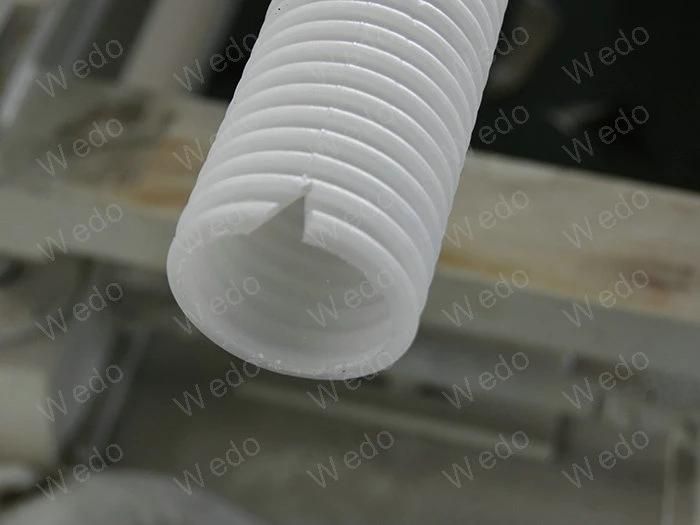

double wall corrugated pipe get from PP PE HDPE PVC plastic corrugated pipe extrusion production making machine line


Consist of PP PE HDPE PVC plastic corrugated pipe extrusion production making machine line
Extruder: Can equipped with fixed-quantity feeding system, High speed and efficiency single screw or conical twin screw extruder is specially designed for extruding PP PE PVC material, automatic temperature control system, vacuum exhaust system and automatic speed control system. This structure assures accurate controlling for the material temperature, plasticization stability and greatly improving corrugated pipe quality.

Corrugator: High performance vertical/shuttle corrugator ensure the pipe of good quality and high efficiency Horizontal structure; Chain type transmission; Equipped with open water cooling system. This kind of design greatly increases the production speed. With special and accurate forming module; Cooling air and water system which guarantee the production speed fast. It greatly increases the production speed. Mold moving adopts advanced synchronous upper and lower mechanical drive system. It assures moving accuracy and plastic pipe quality stability. Advanced self-lubricating system makes the forming molds and mold plates abrasions minimize and greatly extend the service life.

Die head: Spiral type; Special structure design; Small volume and clean flow.  It is composite die head and made of 40Cr, plating chrome and polishing. which make the corrugated pipe inner and outer layer wall thickness even and forming stability.

Cutting machine: automatically cutting, Effective cutting, high speed, low noise and dustless cutting and so on many advantages.

Control system: high automation, reliable running, easy operation, remote communication function which can realize remote fault diagnosis and rule out the possibility.


Model	Diameter(mm)	Extruders	Max.Output(Kg/h)	Total Power(KW)
BW-110	20-63	SJ65/30	120-220	130
BW-160	75-160	SJ90/30	120-220	130
BW-250	110-250	SJ120/30	280-350	280

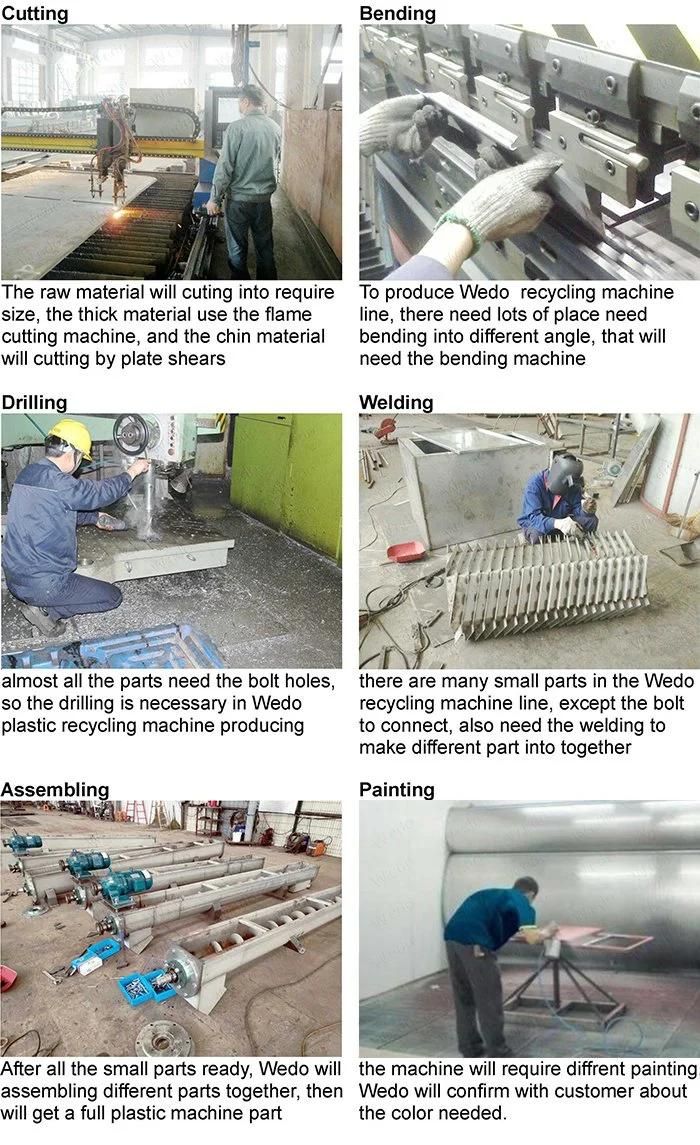

Wedo Produce steps:
Wedo have a fully step for the PP PE HDPE PVC plastic corrugated pipe extrusion production making machine line producing before packing and shipping, this ensure the plastic recycling machine will delivery in good quality, and custerm will get good machine.


Wedo service:
We do best service for you in PP PE HDPE PVC plastic corrugated pipe extrusion production making machine line




Any further about the Plastic corrugated pipe extrusion production making machine plastic pipe corrugator machine, please contact us timely we will give your professional fully support.
