• Automation：Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Condition：New
• Transport Package：Film Packing
• Specification：4*6*2.5m
• Trademark：WT
• Origin：China
• Production Capacity：100

Basic Info.

Automation Automatic Computerized Computerized Certification CE, ISO9001:2008 Condition New Transport Package Film Packing Specification 4*6*2.5m Trademark WT Origin China Production Capacity 100

Product Description

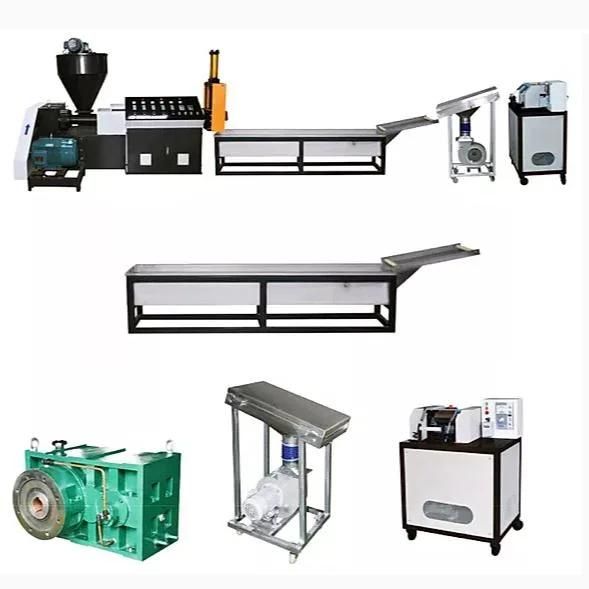

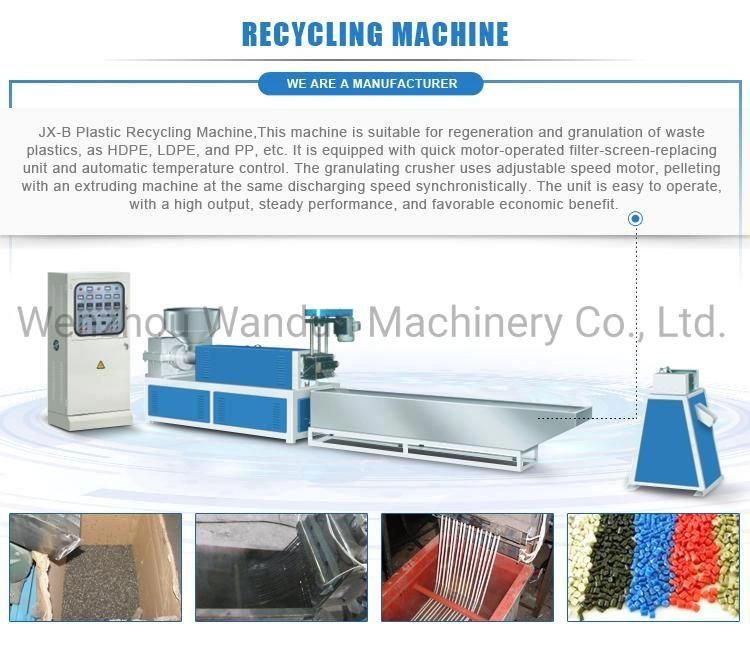

WT-B Plastic Recycling Machine




Introduction:

This raw materials like waste films of HDPE and LDPE are extruded through the extruder, and then are cooled through wind and cut hotly into granules, featuring in fine quality, bubble free and moisture free. The machine is equipped with a forced feeder, fast mesh changer and automatic rhermocontroller. Characteristics: Main Technical Variables

Main Technical Variables:


Model	WT-B90	WT-B100	WT-B110	WT-B120
Type Diameter of Screw Stem	φ85	φ95	Bφ105	φ115
Major Diameter Ratio of Screw Stem	L/D 20:1 -22:1	L/D 20:1 -22:1	L/D 20:1 -22:1	L/D 20:1 -22:1
Rational Speed of Screw Stem	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Main Motor Power	18.5kw	22kw	30kw	37kw
Output	68kg/h	95kg/h	120kg/h	135kg/h
Weight of overall(kg)	2000kg	2100kg	2200kg	2500kg
Cover dimensions (l*w*h) (mm)	8000*1200*1800	8200*1600*1800	8500*1600*1800	8800*1600*1800
