• Model NO.：SJ-30 45 50 65
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Voltage：380V 50Hz 3phase(Customized)
• Power (Kw)：15
• Main Machine Model：Sj-30,50,65,75,90
• Quantity of Mould：42-72
• Production Speed：6-12m,Min
• Coiling Way：Automatically &Manually
• Output (Kg/H)：60 - 80 Kg,H
• Screw Material：38crmoala
• Screw L/D Ratio：30:1
• Weight：1500kg
• Warranty：1 Year
• Key Selling Points：22 Years Manufacturer High Speed
• Marketing Type：New Product 2020
• Pipe Diameter Range：4.5mm-160mm
• Cooling Style：Wind &Water Cooling
• Transport Package：Packing in Wooden Case
• Specification：15m*2.2m*2.5m
• Trademark：tongsan
• Origin：Qingdao China
• HS Code：8477209000
• Production Capacity：50-100 Kg,H

pipe diamter range 4.5-12mm9-32mm12-50mm50-110mmmodel extruderSJ45SJ50SJ65SJ65production capacity20-30kg/h40-50kg/h60-70kg/h80-90kg/hpower of extruder 7.5kw15kw30kw37kwpower of forming machine1.1kw1.5kw4kw4kwquantity of mould pairs42pairs50pairs50pairs72pairscolling mode wind& water colling  wind& water colling  wind& water colling  wind& water colling  production speed6-10m/min8-12m/min8-12m/min2-6m/min
high speed corrugated pipe machine

High speed single wall corrugated pipe making machine

GSDBGZ high speed plastic pipe extruder machine 4.5-53mm single wall corrugated pipe production line is developed on the basis of our original single-wall corrugated pipe machine.
The molds are moved by gear on the runway. It is equipped with specially designed water cooling sealing system, and the
lubrication oil can be injected automatically.
In the forming machine, for small sizes mould, it can be set with two mould chambers which can make two different sizes of pipes only by adjusting the height of forming machine automatically.
All these features improve the production speed of single wall corrugated pipes to a great extent, which can reach 20-25m/min.
Besides, the production line is equipped with pre-stress eliminating cooling device, automatic tapping machine in production line and automatic coiling machine, and it is especially suitable for the production of car harness corrugated pipes.
 pipe diamter range 4.5-12mm9-50mm9-53mm
(pipe with joint)model extruderSJ45BSJ65BSJ65Bproduction capacity20-30kg/h60-80kg/h70-90kg/hpower of extruder 7.5kw30kw37kwpower of forming machine1.1kw4kw4kwquantity of mould pairs63pairs72pairs72pairscolling mode wind& water colling  wind& water colling  wind& water colling  production speed10-20m/min20-25m/min20-25m/min
Compromise Joint pipe machine



SJDBGZ series plastic single wall corrugated pipe extrusion line can produce PE,PP, EVA, PVC, PA corrugated pipe

Mould chain adopts gear transmission, base plate adopts water cooling, mould adopts air cooling. Corrugated pipe produced by our
machine has the features of high production speed, even corrugated shape, straight pipe seam and smooth surface.

By equipped with vacuum pump and vacuum type mould, it can produce different use corrugated pipe with joint (wash basin drain
pipe, air conditioner pipe, hookah pipe etc)

OUR servies

INSTALLATION AND COMMISSIONING
WE WILL SEND THE TECHNICIAN TO BUYER'S FACTORY FOR INSTALLATION AND TESTING THE WHOLE LINE, AND OUR ENGINEER WILL DO TRAINNING TO BUYER'S WORKERS UNTIL THEY CAN RUN OUR MACHINE FOR STABLY PRODUCTION


AFTER SELL SERVICE: ONE YEAR GUARNTEE, FOREVER SERVICE!
WITHIN THE GUARANTEE OF ONE YEAR, WE WILL PROVIDE EFFICIENT AND ON TIME MAINTAINS,IF ANY SPARE PARTS DAMAGED IN THE GUARANTEE TERM BECAUSE OF QUALITY PROBLEM, WE WILL PROVIDE NEW SPARE PARTS FOR FREE FOR REPLACMENT.

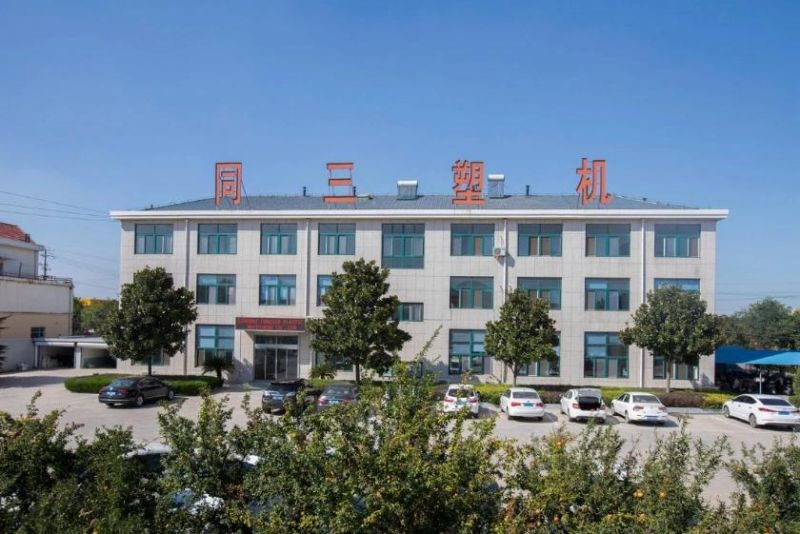

Company profile
