• Model NO.：sj-120
• Certification：CE
• Brand Name：Pym
• Vlotage：380V
• Application：Plastic Recycling
• Quality Control：Test Before Delivery
• Delivery：40 Days
• Pimension(L*W*H)：4000*1500*1800
• Weight：3200kg
• Power：45kw
• Transport Package：Wooden Box Packaging
• Specification：CE SGS BV TUV
• Trademark：PYM
• Origin：Zhejiang Province Wenzhou City
• HS Code：847790000
• Production Capacity：135kg,Hr

Basic Info.

Model NO. sj-120 Certification CE Brand Name Pym Vlotage 380V Application Plastic Recycling Quality Control Test Before Delivery Delivery 40 Days Pimension(L*W*H) 4000*1500*1800 Weight 3200kg Power 45kw Transport Package Wooden Box Packaging Specification CE SGS BV TUV Trademark PYM Origin Zhejiang Province Wenzhou City HS Code 847790000 Production Capacity 135kg/Hr

Product Description

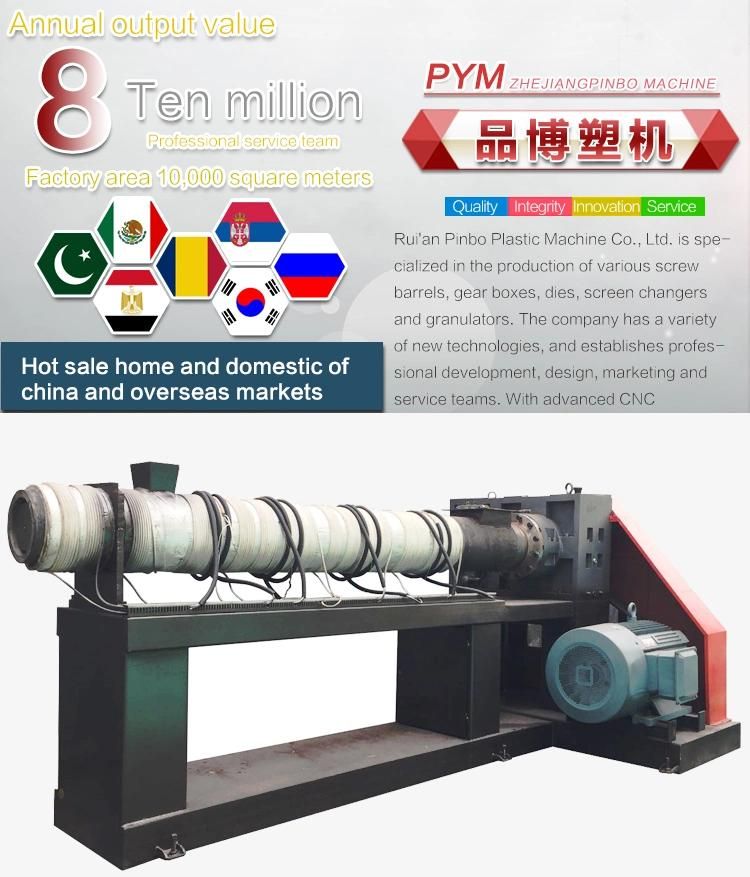

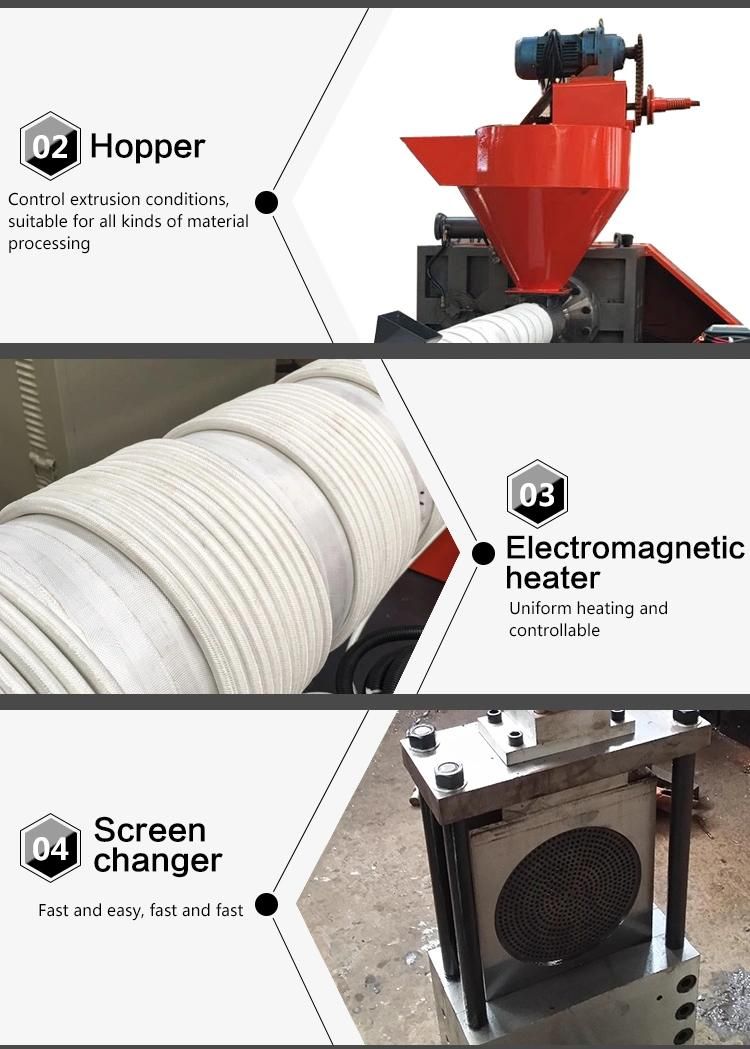

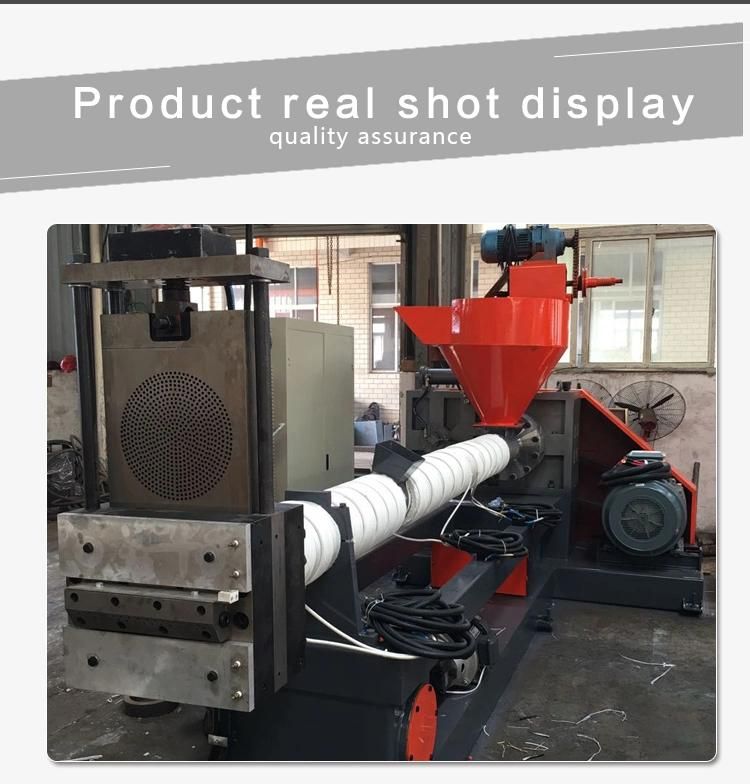

This machine is suitable for regeneration and granulation of waste plastics, as HDPE, LDPE and PP, etc. Its equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control. The granulating crusher uses adjustable speed motor, pelleting with and extruding machine at the same discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance and favorable economic benefit.





Why  choose us ?

A>  long time experience and history

B>  long time nitriding treatment and heating treatment by itself

C>advanced Fanuk series CNC computer-controlled milling machines

 D>depth hole drilling machine in 18meters length, which ensure the
straigtnss of barrel inside.

  E>  CAD drawing confirmation before start making

   F>  Prompt after sale service

  G>Land owner and registration capital 25,000,000RMB

  H> prompt after-sale

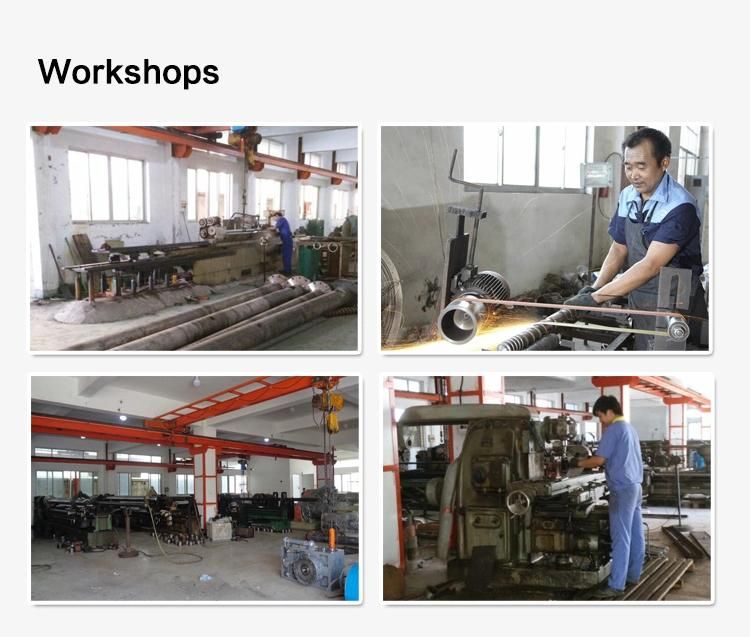

Ruian yumin machine screw co.,ltd is a factory specialized in making screw barrel in various materails, filter, t die, gearbox, and extruder machine. We are largest one in Ruian city who supply main parts to machine- maker with the history over 24 years. Our workshops cover lands over5.000 cube meters. We have two factories in Ruian, with 4workshops.
   We have many computer-control CNC milling machines with the length 8000mm in Fanuk series,18000mm length deep hole drilling machine, and other advanced equipments.All the process is done by ourself, including nitrding treatment. We do nitriding treatment for 7 days and nights, which ensure the hardness and lifetime of screw barrel a lot. Meanwhile, our factory and products are passed the assessment by SGS company, and Bureau of Veritas, TUV, and CE certificate.

 Welcome to visit our company !

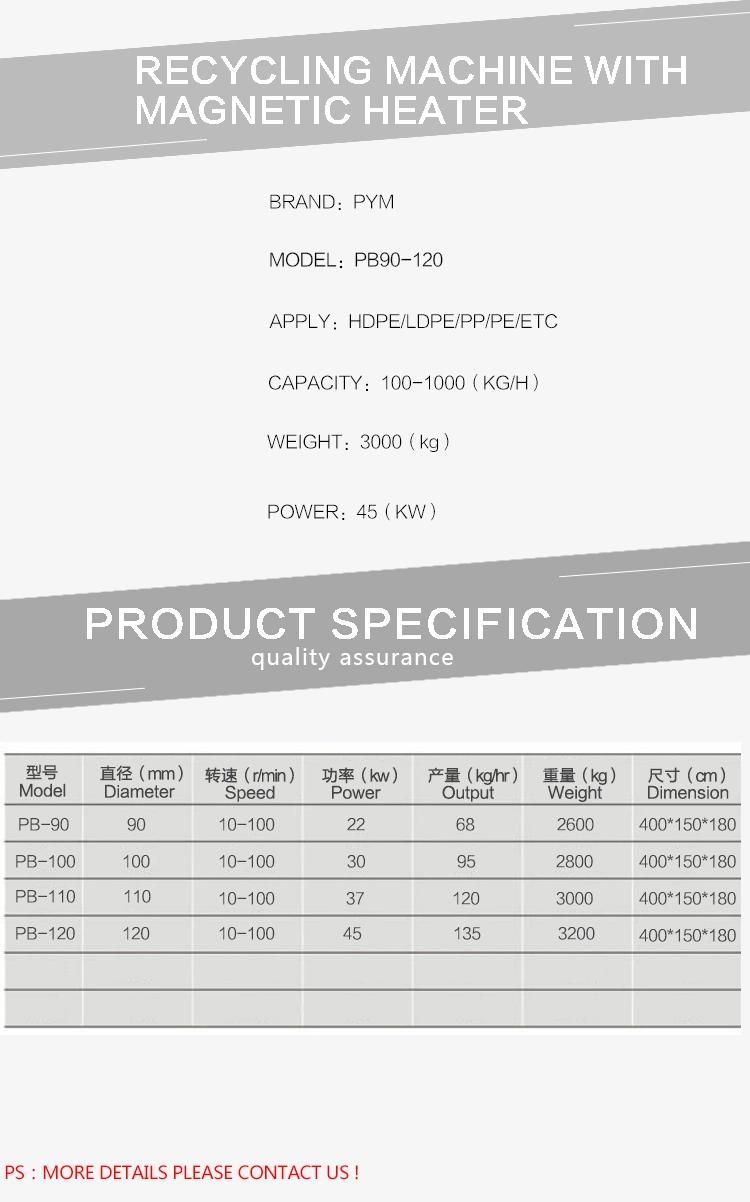

Model	SJ-B90	SJ-B100	SJ-B110	SJ-B120
Type Diameter of Screw Stem	φ90	φ100	φ110	φ120
Major Diameter Ratio of Screw Stem	L/D 20:1 -22:1	L/D 20:1 -22:1	L/D 20:1 -22:1	L/D 20:1 -22:1
Rational Speed of Screw Stem	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Main Motor Power	22kw	30kw	37kw	45kw
Output	68kg/h	95kg/h	120kg/h	135kg/h
Weight of overall(kg)	2600kg	2800kg	3000kg	3200kg
Cover dimensions (l×w×h) (mm)	4000×1500×1800	4000×1500×1800	4000×1500×1800	4000×1500×1800
