Single Wall Corrugated Pipe Production Line
GPM Machinery (Shanghai) Co., Ltd.- Product Type：PVC Pipe
- Screw No.：Double-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008, UL, QS, GMP
- Customized：Customized
Base Info
- Model NO.：SJ
- Condition：New
- Product Name：Single Wall Corrugated Pipe Production Line
- Another Name：Single Wall Corrugated Pipe Making Machine
- Processing Type：Pipe Extrusion
- Raw Material：PVC Powder and CaCO3
- Usage：Vent Pipe
- Motor：Simens
- Inverter：ABB Brand
- Contactor：France Schneider Contactors
- Temperature Control：Japan Omron
- Output：180- 1100kg,H
- Transport Package：PE Film Winding Wrapping
- Specification：16-800mm
- Trademark：GPM
- Origin：Shanghai
- HS Code：8477209000
- Production Capacity：500 Sets,Year
Description
SPECIFICATIONS FOR PVC SINGLE WALL CORRUGATED PIPE EXTRUSION LINE Model Pipe spec(mm) Conical twin screw extruder Max.output
(kg/h) Total power(kw) GWG63-PVC Φ20-Φ63 GSZ65/132 180-300 104 GWG160-PVC Φ63-Φ160 GSZ65/132 180-300 105 GWG250-PVC Φ75-Φ250 GSZ80/156 300-450 110 GWG315-PVC Φ200-Φ315 GSZ80/156 300-450 216 GWG450-PVC Φ200-Φ450 GSZ92/188 650-750 290 GWG630-PVC Φ315-Φ630 GSZ92/188 750-850 350 GWG800-PVC Φ500-Φ800 GSZ135/31 950-1100 410
for mould
For down stream equipment
(kg/h)
| NO. | Equipment | Qty. | Remark |

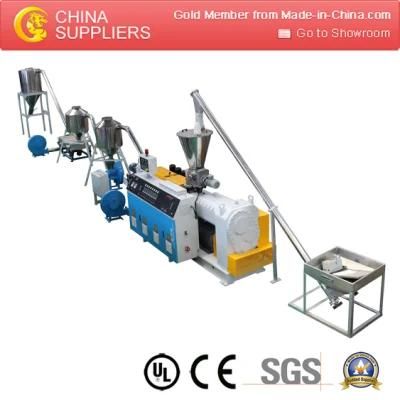

| 1 | GSZ65/132 conical Twin-Screw Extruder | 1set | |
| 2 | Mould(including heater and calibrator) | 1set | |
| 3 | Vacuum Tank | 1 set | |
| 4 | Three claws Haul-off unit | 1set | |
| 5 | Saw Cutter | 1set | |
| 6 | Stacker | 1set | |
| 7 | Electric Control System | 1et | |
| 8 | Spare Parts | 1set |
Spare part List
for extruder:| No. | Spare Parts | Qty |
| 1 | Thermal couple | 5pcs |
| 2 | Dismantling tools for screw | 1set |
| 3 | Thermometers | 5pcs |
| 4 | Oil seal for gearbox | 1pcs |
| No. | Spare Parts | Qty |
| 1 | Heating circle of the mouth die | 1sets |
| 2 | Dismantling tools for dies | 1set |
| 3 | Adapter for heater | 5pcs |
| 4 | Wire for mould | 20m |
| No. | Spare Parts | Qty |
| 1 | Rubber block | 10pcs |
| 2 | Nozzle for tanks | 10pcs |
| 4 | Cloth bag | 22pcs |
| 5 | Contactor | 33pcs |
| 6 | Button | 22pcs |
| 7 | Potentiometer | 44pcs |
| 8 | φ8,φ10 tube | 30m |
| 9 | φ8,φ10 three-port valve | 3pcs |
