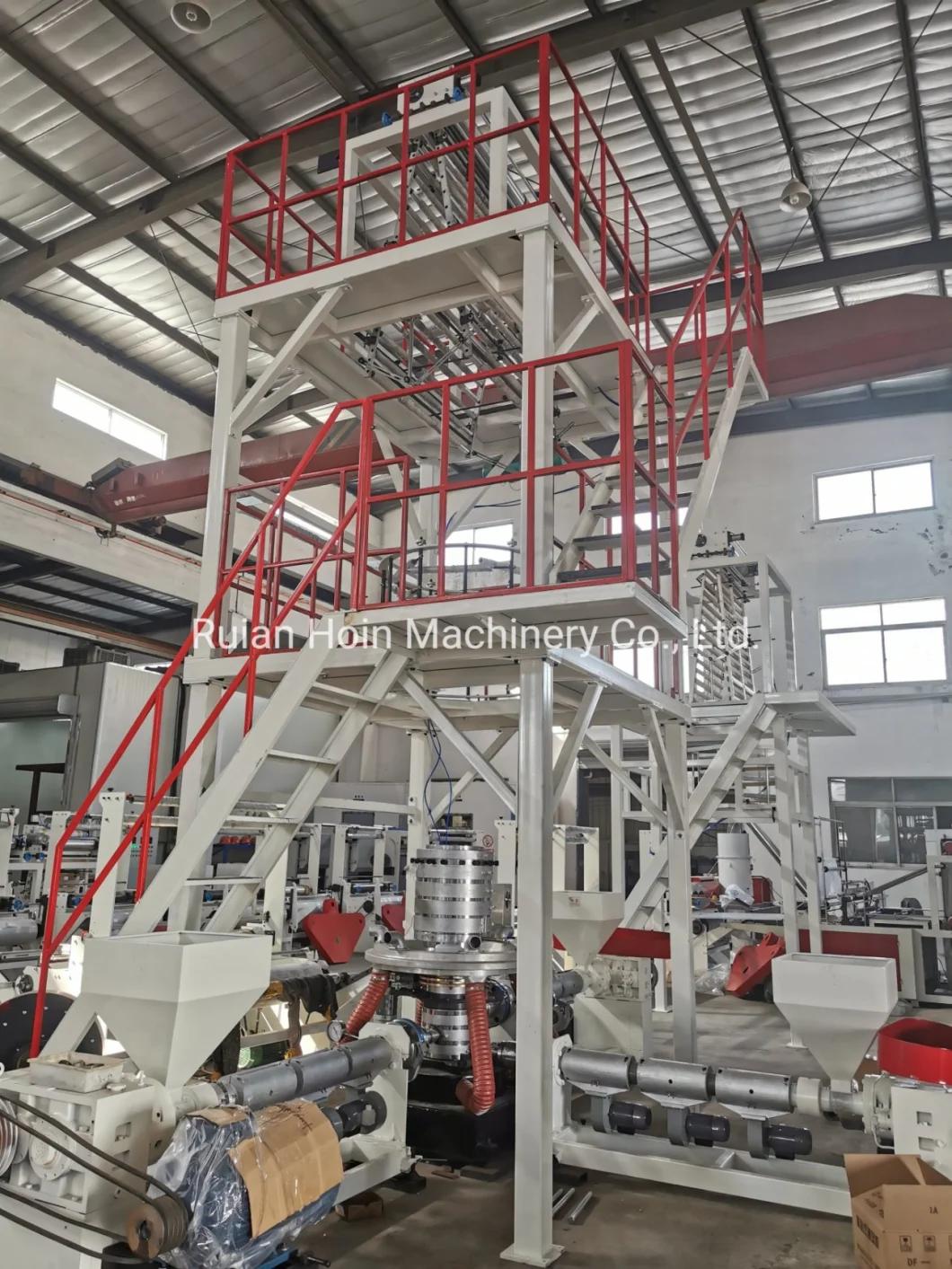

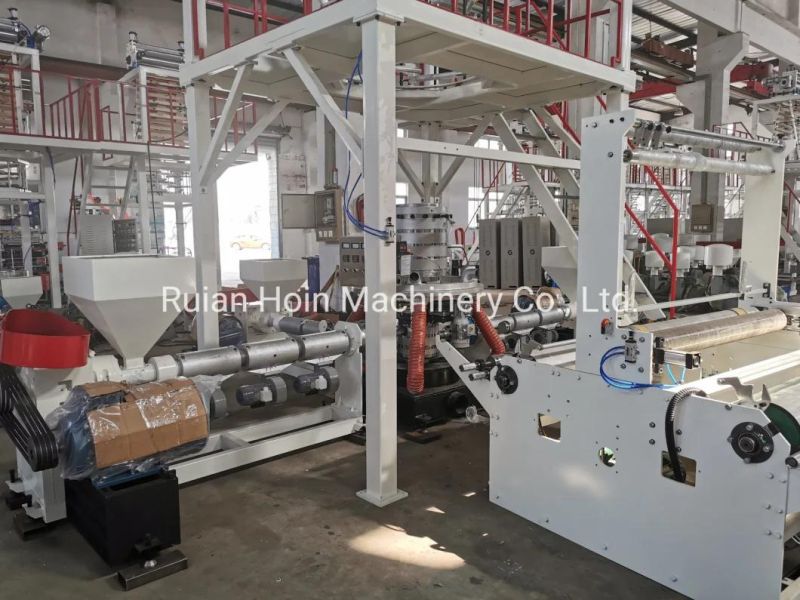

Three-Layer Film Blowing Machine
Ruian Hoin Machinery Co., Ltd.- After-sales Service：Technical Support Online
- Warranty：One Year
- Type：Three-Layer Co-extrusion Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：2000mm
- Screw Diameter：60mm
Base Info
- Model NO.：F3B-RD
- Automation：Automatic
- Computerized：Non-Computerized
- Machine Weight：10T
- Certification：CE
- Air Ring：Dul-Lip Air Ring
- Screw Rate：30:1
- Screw Quantity：3 Sets
- Extruding Capacity：90-240kgs,H
- Thickness of Film：0.02-0.1mm
- Corona Treater：Optional
- Hydraulic Screen Changer：Optional
- Transport Package：Wooden Cases
- Specification：CE
- Trademark：HOIN
- Origin：Ruian, Zhejiang, China
- HS Code：84773010
- Production Capacity：150
Description
https://china-pm.en.made-in-china.com/product-list-1.htmlA: Description
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home. It is optimum designed on the triunes of preference of analogous lines in foreign and home. The lines can be blown continuous 1200/1300/1500mm in fold width 0.08mm in the thickness packaging films, from LDPE, HDPE, LLDPE, MLLPE, horizontal extrusion up blown. The film has good insulation, for instance holding temperature, antique-mid, anti-breeze, anti-rain, anti-roust, insulation oxygen, oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding, salt vegetables, fresh milk, drink.
B: Technology Parameter
C: Details Information

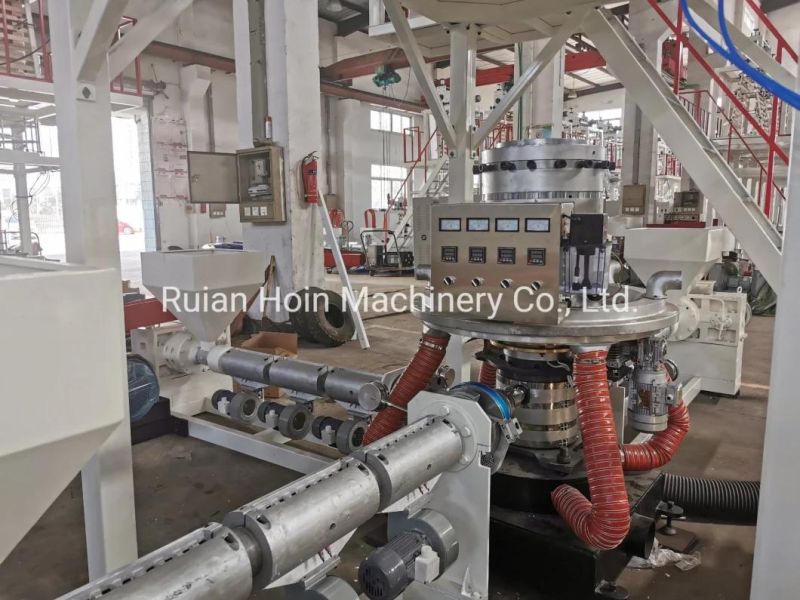

1. Extruder Unit
Die Head Material: Cr40 Mould Steel
Die Head Heating: 2 Zones
Rotary Die Head: Optional
Screw and Barrel Material: 38CrMoALA
Screw and Barrel Heating:3Zones*3Sets
Heating Ring Material: Cast Aluminum
Screen Changer: Manual Type
Gear Box: Hard Tooth Surface Gear Box
2. Take Up Section
'A' Shape Film Forming Plate: Aluminum Bar Type
Film Bubble Setting Ring: Aluminum Bar Type
Take Up Motor:Three-Phase Asynchronous Motor with Worm Gear Reducer
Take Up Rollers Grasp: Air Cylinder
3. Winder Unit
Second Take Up Unit: Air Cylinder
Rewinding Station: Double Stations
Rewinding Motor: Torque Motor
Pinch Roller: Air Shaft Roller

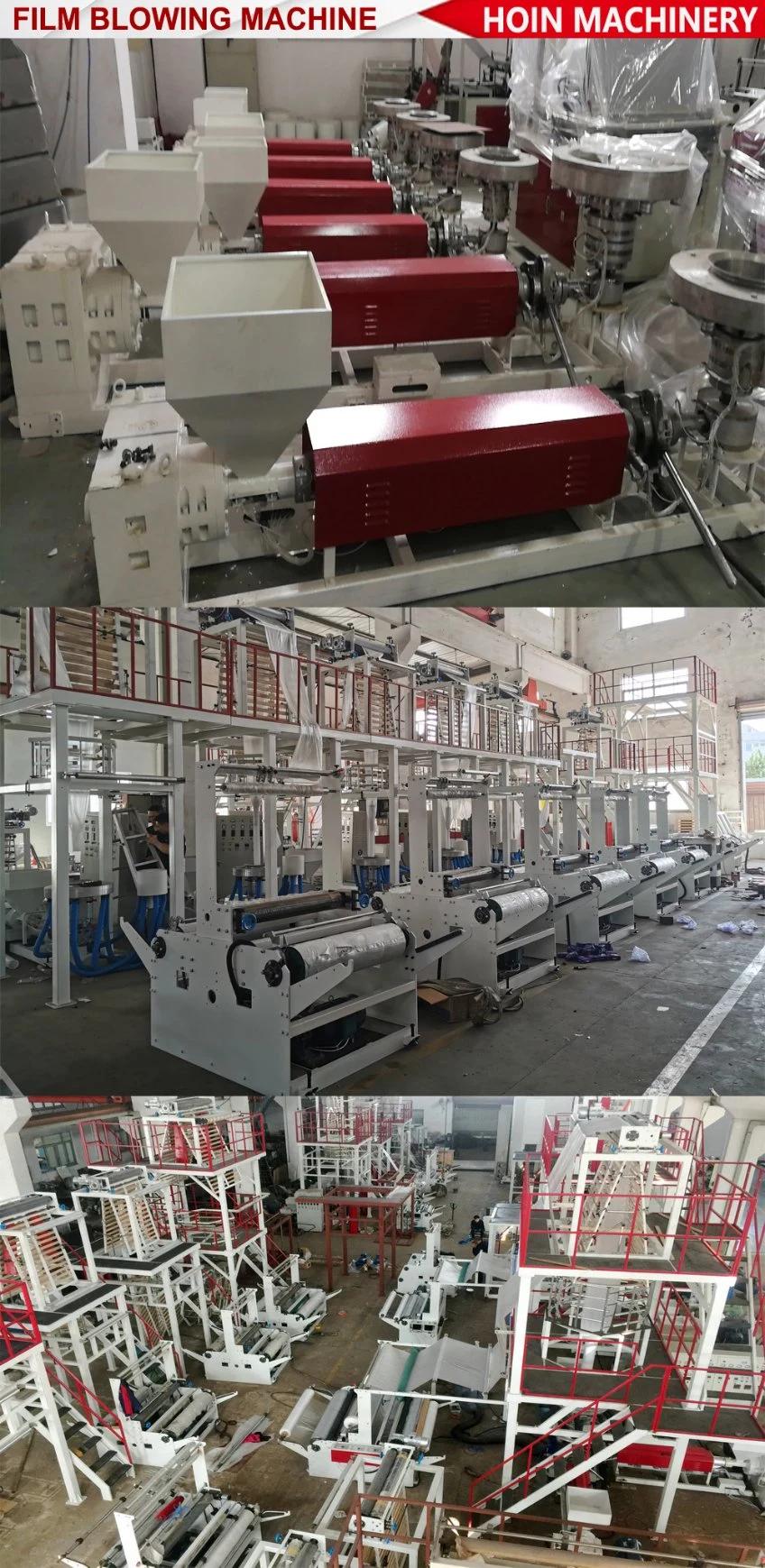

HOIN WORKSHOP

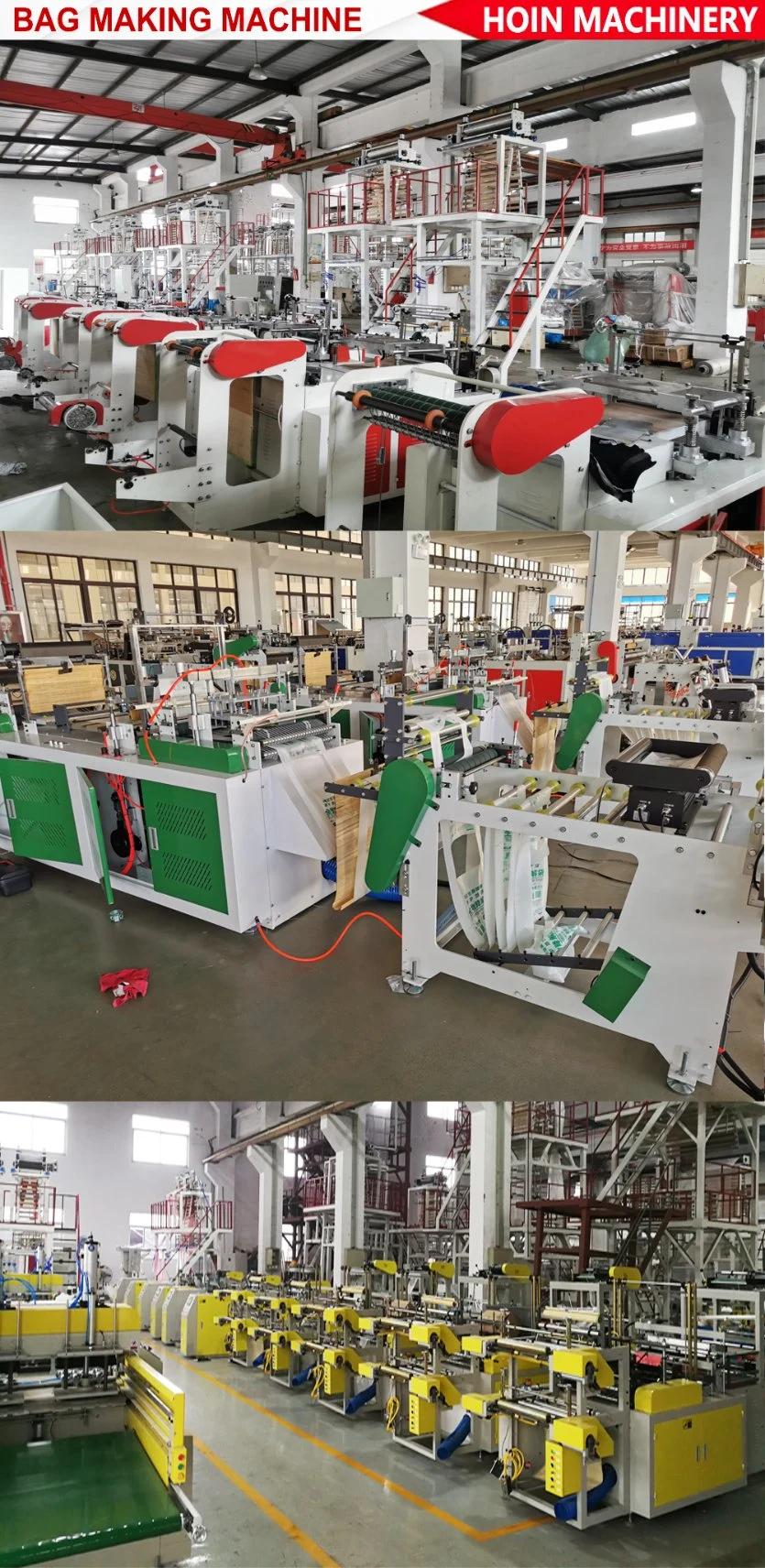

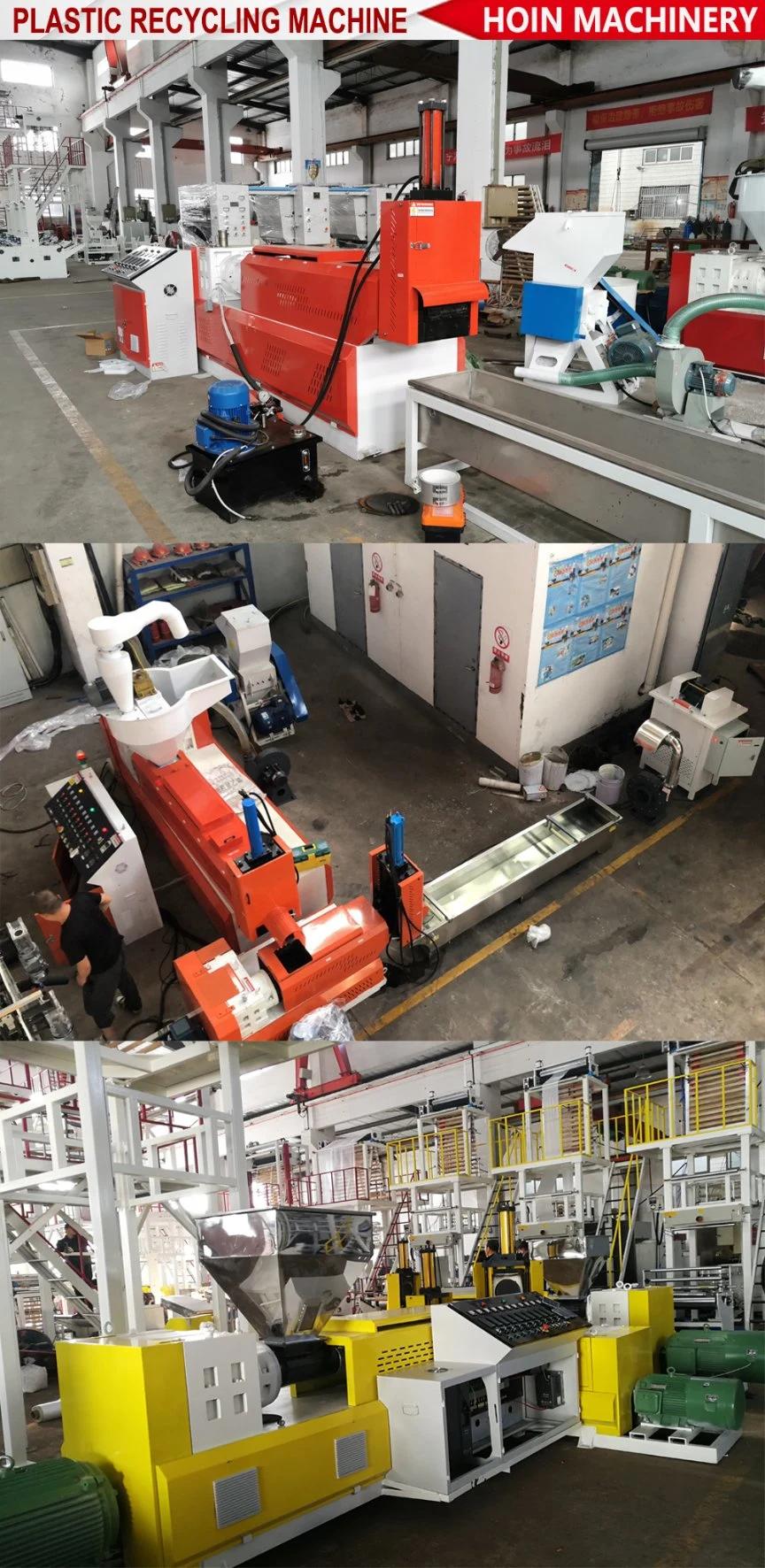

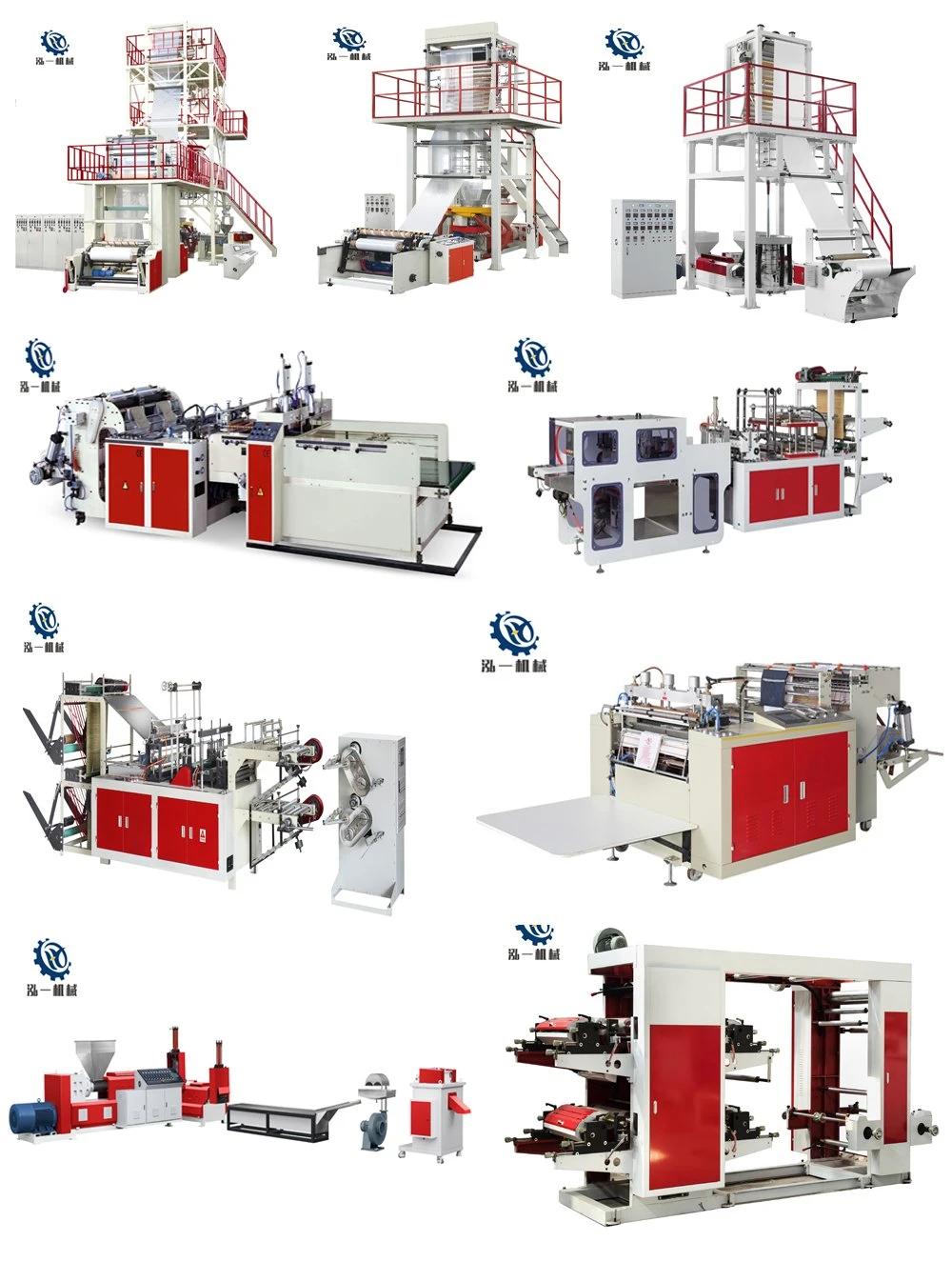

MORE PRODUCTS
AFTER SERVICE OF HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USDper day per person.
4. How long of your machine's warranty period?
All our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We also can offer you our best after service, of course you will afford our technician's cost.
6. How could we do if the parts broken within of after warranty?
We will express the free replacement parts during the warranty date and also send you parts needed by value after warranty.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineers have rich experience for installingmachines over seven years. In addition, they also can communicate with you using their body language vividly.
8. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home. It is optimum designed on the triunes of preference of analogous lines in foreign and home. The lines can be blown continuous 1200/1300/1500mm in fold width 0.08mm in the thickness packaging films, from LDPE, HDPE, LLDPE, MLLPE, horizontal extrusion up blown. The film has good insulation, for instance holding temperature, antique-mid, anti-breeze, anti-rain, anti-roust, insulation oxygen, oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding, salt vegetables, fresh milk, drink.
B: Technology Parameter
| Model | F3B-RD-1000 | F3B-RD-1200 | F3B-RD-1500 |
| Screw Diameter | φ 4 5mm | φ 50mm | φ 55mm |
| Screw Ratio | L/D30:1 | L/D30:1 | L/D30:1 |
| Screw Speed | 15-150r/min | 15-150r/min | 15-150r/min |
| Main Motor Power | 11Kw ×3 | 15Kw ×3 | 18.5Kw ×3 |
| Max. Extrusion Output | 150kg /h | 120kg /h | 150kg /h |
| Range of Die | φ 200 φ 250mm | φ 200 φ 250mm | φ 250 φ 300mm |
| Single-sided Thickness of Film | 0.01 -0.10mm | 0.01 -0.10mm | 0.01 -0.10mm |
| Max. Folding Width of Film | 1000mm | 1200mm | 1500mm |
| Electric Total Capacity | 176Kw | 88Kw | 102Kw |
| Weight of Machine | 4200kg | 5300kg | 6200kg |
| Overall Dimension(L×W×H) | 6600×4100× 5000mm | 6800×4300× 6000mm | 7000×4800× 6800mm |
1. Extruder Unit
Die Head Material: Cr40 Mould Steel
Die Head Heating: 2 Zones
Rotary Die Head: Optional
Screw and Barrel Material: 38CrMoALA
Screw and Barrel Heating:3Zones*3Sets
Heating Ring Material: Cast Aluminum
Screen Changer: Manual Type
Gear Box: Hard Tooth Surface Gear Box
2. Take Up Section
'A' Shape Film Forming Plate: Aluminum Bar Type
Film Bubble Setting Ring: Aluminum Bar Type
Take Up Motor:Three-Phase Asynchronous Motor with Worm Gear Reducer
Take Up Rollers Grasp: Air Cylinder
3. Winder Unit
Second Take Up Unit: Air Cylinder
Rewinding Station: Double Stations
Rewinding Motor: Torque Motor
Pinch Roller: Air Shaft Roller
