8 Cavity Fg8 Pet Bottle Making Machine
Jiangsu Faygo Union Machinery Co., Ltd.- Type：Stretch Blow Molding Machine
- Raw Material：PET
- Making Method of Parison：Injection Blowing
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008, UL
Base Info
- Model NO.：FG8
- Model：Fg8
- Application：Blow Pet Preform
- Mold Cavity：8
- Max Productivity：13000bph
- Driving System：by Servo Motor
- Warranty：1 Year
- Air Pressure：30bar
- Working Method：Automatic
- Electric Consumption：45kw Per Hour
- Dimension：4.2mx1mx2.3m
- Transport Package：Woodbox with Film Wrapped
- Specification：FG8
- Trademark：Faygo
- Origin：Zhangjiagang, Jiangsu, China
- HS Code：84778000
- Production Capacity：13000bph
Description
Machine weight(Kg)3200 3800 4500
3. Advantage of FG series PET bottle making machine

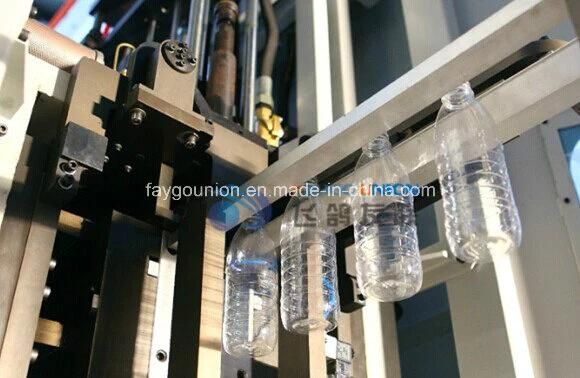

a. Servo driving and cam linking blowing section:
It adopt unique cam linking system to integrate movement of mold-opening, mold-locking and bottom mold-elevating in one movement. Equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity. The complete movements of PET blowing only takes 2 seconds. With this new structure, this Fully automatic pet bottle blowing machine will work more stable and reliable, and make higher output than Europe pet blower.
b. Small performs distance heating system
Heater distance in the heating oven is reduced to 38mm, compared with the conventional heating oven it saves more than 30% electricity consumption. Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature of the heating zone.
c. Efficient and soft perform inlet system
By rotary wheel and soft preform inlet/outlet system, the speed of prefom feeding is ensured meanwhile, the preform neck is well protected.
d. Modularized design conception
Adopting modularized design concept, to make it convenient and cost-saving for the maintenance and changing spare parts. For skilled workers, it only take 30 minutes to change the bottle mold.
4. Optional item for FG series PET bottle making machine
1. Exploded bottles ejection unit
During the blowing process, if the bottle burst, bad bottles can be automatically removed. This prevents the bad bottles from entering the filling machine.
2. HP air recovery system
After the bottle blowing, high-pressure air can be recycled and used again for the pre-blowing and machine physical movement.
3. Oven and preform temperature detection system
Detection system detects temperature of oven and the temperature of performs. When the preform temperature does not reach the set blowing temperature, blowing workstation will alarm, not blown.
5. Packaging & Shipping
Wooden box with film wraping
6. Our Services
1> The machine will be tested and checked at our workshop before delivery.
2>After one year, we will supply accessories are provided only one the cost price.
3> Free Spare Parts : Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table, Furnace heating tube and other relative vulnerable part.
4>Free production technology and process configuration.
5> We can help you to design the product line, workshop and provide turn-key project.
6>Installation: Experts' team to buyer's country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $100/day during the engineer's journey.
7>Warranty: One year from the date of Installation or acceptance of the Plant whichever comes first
7. Company Information

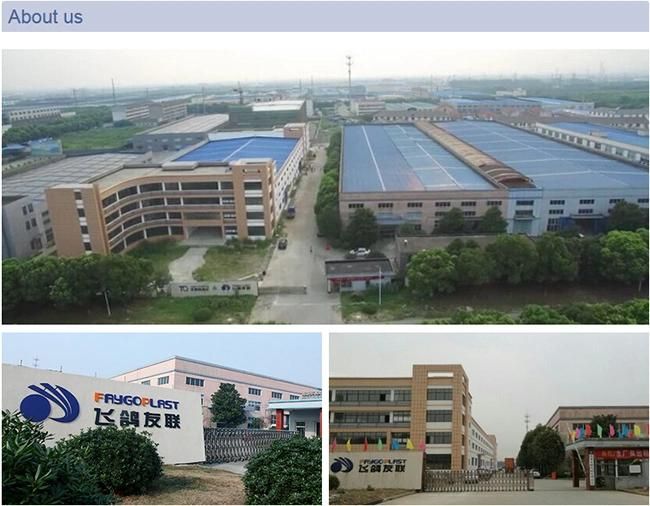

Jaingsu Faygo Union Machinery is a professional manufacturer of plastic machines. It occupied an area of 18000 square meters. With years of development, its products covers plastic extrusion lines, plastic blowing machine, plastic recycling machine, air compressor etc.
Stick to the company idea making good machine, being good person, Faygo Plast alwasy provide customers with high quality machines. Welcome to visit our company, and make win-win cooperation in the future.
