• HS Code：84771090
• Model NO.：EK3-8E2
• Production Capacity：20 Sets, Month

Mould Closing System Work Stations8Clamping  Force  (kg)150000Mould-Opening Stroke (mm)350-400Standard Thickness of Mould (mm)100-210Mould Plate Size (mm)2(290*550)Height of Injection Nozzle (mm)60Method of Heating electricHeating Power (kw)8.04Injection System Injectors (set)2Diameter of Screw (mm)60 or 70L/D Ratio of Screw 23Max Injection Capacity (cc)920-1100Injection Pressure0-1100Injection Speed (cm/sec)10Rotating Speed of Screw (r.p.m)0-190Temperature Control (section)4Electricity Consumption Heater Barrel (kw)12.1Motor for Injector Moving (kw)1.5Heating Board of Mould (kw)102.4Hydraulic System (kw)(50hz)59Vacuum Pump (kw)2.2Cooling Fan of Barrel (HP)1Total Electricity (kw)180Oil Tank Size (L) 1000Machine Weight (kg) 29000Machine dimension(m)8.5 *4.5*2.76 m
Detailed Description :


Its daily productivity is 2*18*8*24=6912 pairs by theory calculation.for 1 pair in 1 mould,For 2pairs in 1 mould is 6912*2=13824 pairs per 24hours

Note:

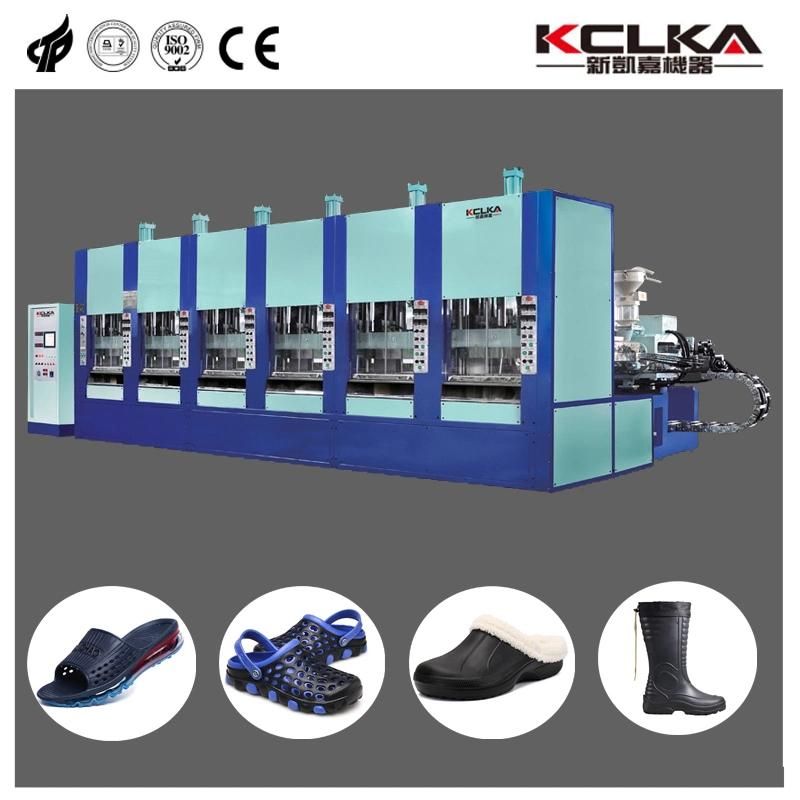

1.Its product range includes EVA mid-soles,rainboots,slippers,sandals, clogs,sport protectors and various kinds of shoes and shoe accessories and depends on the EVA shoe mould.

2.The clamping force can be increased from 150 to 210 tons, according to your requirement.

3.The foam EVA injection molding machine is fully hydraulic and automatic operation except taking out product.

4.It is PLC controlled, its humanized parameter computer operation interface provide quick and exact terms of production.

Character:
1.Low operation height,Operation height in accord with human engineering

2.Extra height opening stroke
Act by fixed opening stroke: 350mm, which is not affected by any mould thickness changes and

3.available for 2plates mould,Mould thickness adjusting mechanism
Mould adjusting scope: 100-200MM

4.Rapid mould opening ,Act by toggle mechanism which opens the mould rapidly

5.Speedy injector movement
Driven by linear-track, allowing speedy moving and precise positioning,Energy saving design

6.No need water circulation for mould station

7.Space saving design,Put oil tank together with injection base, which makes the structure compact and saves more space.




Term:

All quotations are without value-added tax.
Delivery date:Within 55 days After receiving the 30% earnest money
Payment term: Advance payment at order 30%, 70% before shipment
Delivery State: Machines were taken apart and packed in suitable package that fits container shipping

For the machine experiment and installation, our technician will be sent to your
factory. And you are requested to afford the cost of their trip and payment .
Also  Our technician will manage all the machine things for you and at the same time   train  your  workers on  how  to use  and maintain the machine.
Guarantee Time: One-year warranty and lifelong service.  During guarantee period, the cost of any spare parts or new accessory should be borne by the seller, and the freight for delivery of spare parts will be on the buyer's account.
