• HS Code：84771090

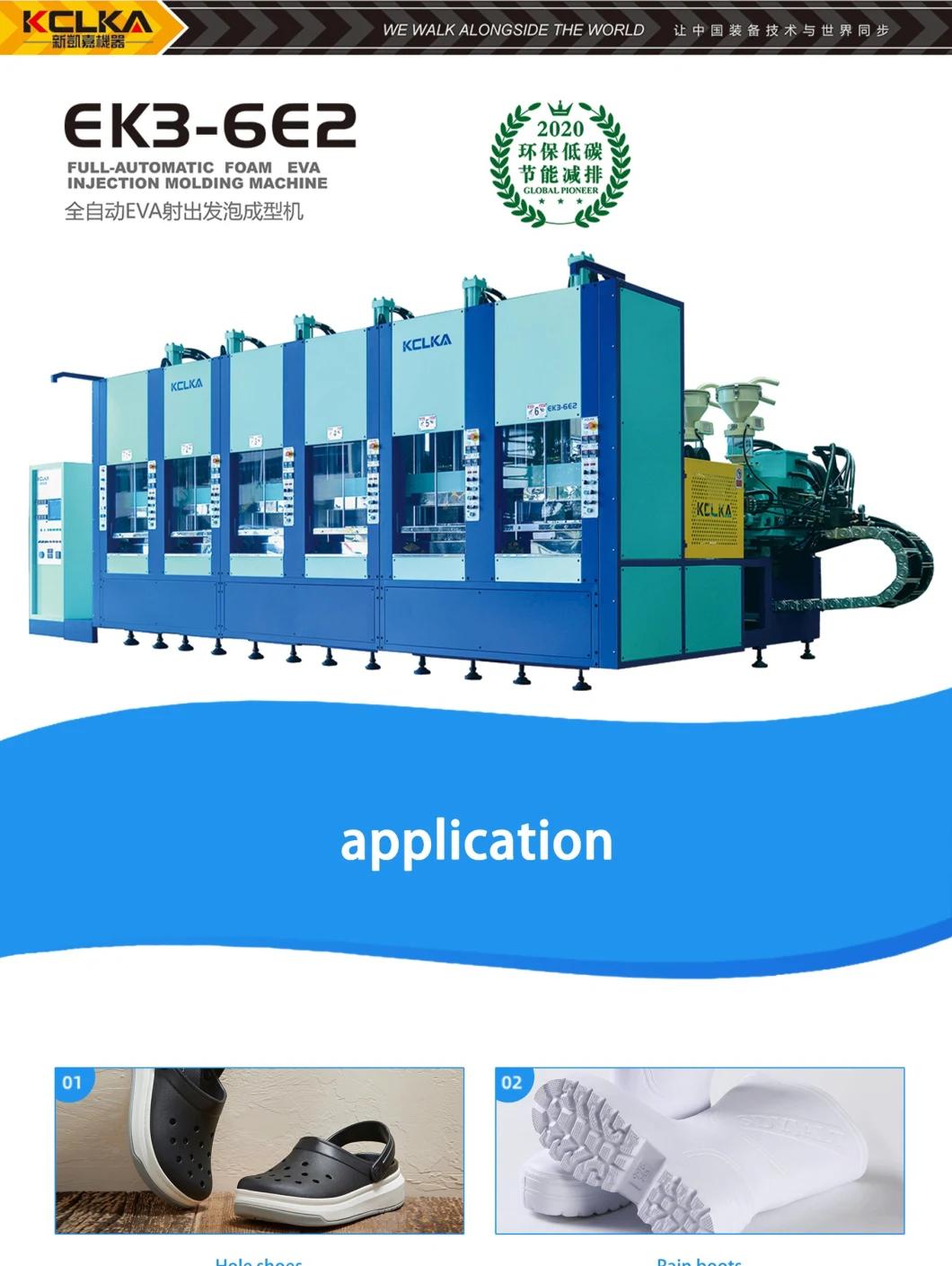

• Model NO.：EK3-6E2
• Production Capacity：20set Per Month

Basic Info.

Model NO. EK3-6E2 HS Code 84771090 Production Capacity 20set Per Month

Product Description

Work Station	station	6
Clamping Force	ton	180
Mold Plate Size	mm	(290*550)*2
Mold Height	mm	100-220
Mold-opening Stroke	mm	350
Injection System
Injector		2
Diameter of Screw	mm	Φ65
Injection Cap(Max)	cm³	995
Injection Pressure	kg/cm²	0-130
Injection  Speed	cm/sec	0-10
Rotating Speed of Screw	r.p.m	0-190
Temperature Control	section	4
Electricity Consumption
Heater Barrel	kw	9.8*2
Heating Plate	kw	76.8
Hydraulic System	kw	51.9
Vacuum Pump	hp	1.5
Cooling Fan of Barrel	hp	1
Total Electricity	kw	148.3
Oil Tank Size	L	1000
Machine Weight	kg	26000
Machine Dimension	mm	8000*4500*3000


Feature:

1.Low operation height,Operation height in accord with human engineering
2.Extra height opening stroke.

Act by fixed opening stroke: 350mm, which is not affected by any mould thickness changes and
3.available for 2plates mould,Mould thickness adjusting mechanism
Mould adjusting scope: 100-200MM

4.Rapid mould opening ,Act by toggle mechanism which opens the mould rapidly
5.Speedy injector movement
Driven by linear-track, allowing speedy moving and precise positioning,Energy saving design

6.No need water circulation for mould station
7.Space saving design,Put oil tank together with injection base, which makes the structure compact and saves more space..
 FAQ Delivery date:Within 45 days After receiving the 30% earnest money Payment term: Advance payment at order 30%, 70% before shipment Delivery State: Machines were taken apart and packed in suitable package that fits container shipping For the machine experiment and installation, our technician will be sent to your factory. And you are requested to afford the cost of their trip and payment .Our technician will manage all the machine things for you and at the same time   train  your  workers on how  to use  and maintain the machine. Guarantee Time: One-year warranty and lifelong service.  During guarantee period, the cost of any spare parts or new accessory should be borne by the seller, and the freight for delivery of spare parts will be on the buyer's account.

FAQ:
1.How to buy your machine?
Please kindly send inquiry to us, we will sign a contract to confirm our order after the discussion of the machine technical details.
In order to suitable for your actual production,all the machine can be customized.
2.Are you manufacturer?
 Yes, we have more than 15 years in making EVA PVC machinery,we have served nearly 5000 customers.We are so glad to show you the manufacture process and machine working We located in Jinjiang City, Fujian province .welcome to visit our factory.
3.Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
