• Model NO.：psb-dz200~600
• Warranty：1year
• Connected Load：35.5kw
• Cooling Type：Air Cooling
• Mould Cavity Size：4080*(1240-900)*1030mm
• Block Size：4000*(1200-900)*1000mm
• Steam Consumption：50-70kg,Cycle
• Compressed Air Consumption：0.4-0.6m³,Cycle
• Machine Size：11000*4500*3000mm
• Transport Package：Standard Export Package
• Trademark：VST
• Origin：Zhejiang, China (Mainland)
• Production Capacity：20 Unit , Month

Basic Info.

Model NO. psb-dz200~600 Warranty 1year Connected Load 35.5kw Cooling Type Air Cooling Mould Cavity Size 4080*(1240-900)*1030mm Block Size 4000*(1200-900)*1000mm Steam Consumption 50-70kg/Cycle Compressed Air Consumption 0.4-0.6m³/Cycle Machine Size 11000*4500*3000mm Transport Package Standard Export Package Trademark VST Origin Zhejiang, China (Mainland) Production Capacity 20 Unit / Month

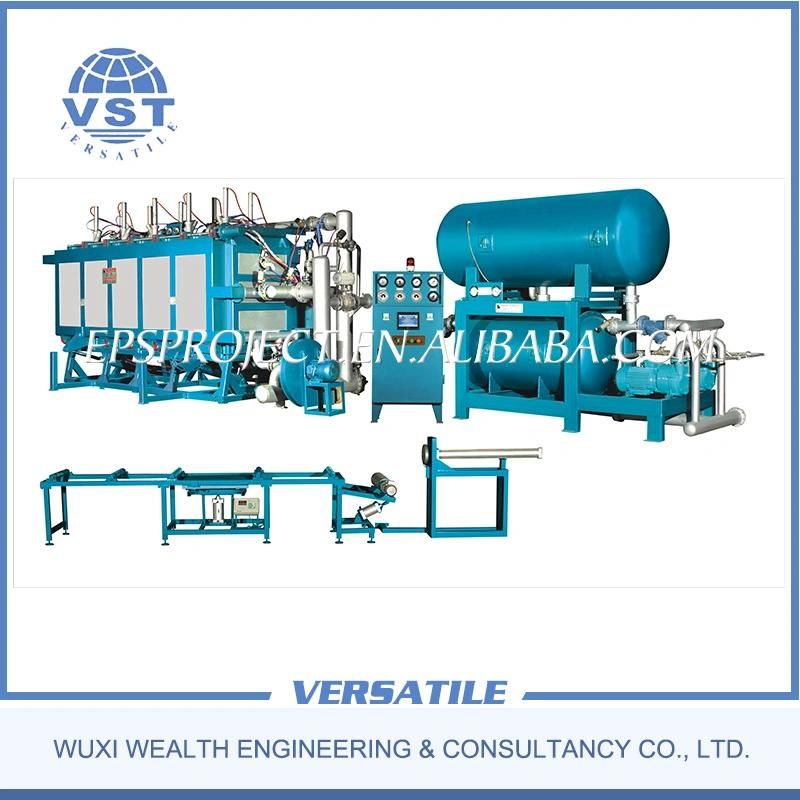

Product Description

Main Features:
1,Strong Structure:
   Machine is made of high-strength square tubes and thick steel plates.
   Machine's all six panels are through heat treatment to release welding stress, so that panels cannot deform under high temperature.
   After heat treatment, all panels are processed by sand blasting treatment t remove rust, then first painting and final painting is done to keep machine anti-corrosion.
2,Steam System:
   Use three ball valves to control steam, saving 20% steam comparing to traditional one main valve system.
   Steaming is controlled by Timer and three Germen electrical gauge switches, with a safty valve to save from gauge malfuncton situation.
3,Control System:
   Machine with PLC and touch screen for easy operation.




TECHNICAL DATA
Item		PSB-DF200	PSB-DF300	PSB-DF400	PSB-DF600	PSB-DF800
Mould Cavity Size		2040*1240*630(mm)	3060*1240*630(mm)	4080*1240*630(mm)	6100*(1240-940)*630(mm)	8120*(1240-940)*630(mm)
Block Size		2000*1200*600(mm)	3000*1200*600(mm)	4000*1200*600(mm)	6000*(1200-900)*600(mm)	8000*(1200-900)*600(mm)
Steam	Entry Consumption Pressure	DN40 20-30kg/cycle 0.8MPa	DN65 30-40kg/cycle 0.8MPa	DN100 45-55kg/cycle 0.8MPa	DN100 60-70kg/cycle 0.8MPa	DN150 80-100kg/cycle 0.8MPa
Compressed Air	Entry Consumption Pressure	DN40 1-1.5m³ /cycle 0.6MPa	DN40 1.5-1.8m³ /cycle 0.6MPa	DN40 1.8-2m³ /cycle 0.6MPa	DN40 2-2.3m³ /cycle 0.6MPa	DN40 2.2-2.5m³ /cycle 0.6MPa
Drainage	Steam Vent Blower exit	Φ 100mm Φ 100mm	Φ 125mm Φ 125mm	Φ 200mm Φ 150mm	Φ 200mm Φ 150mm	Φ 200mm Φ 150mm
Throughout	15kg/m³	12min/cycle	15min/cycle	18min/cycle	18min/cycle	18min/cycle
Connected Load		9.5Kw	9.5Kw	13Kw	13Kw	13Kw
Overall Dimension		4000*2150*2120(mm)	5030*2270*2120(mm)	6040*2270*2250(mm)	8100*2500*3100(mm)	11300*2600*3300(mm)
Weight		4200kg	6000kg	8500kg	9500kg	13800kg
Room Height Required		6000mm	6000mm	6000mm	6000mm	6000mm
