• Model NO.：YF180
• Size：16-100mm
• Electrical Parts：Siemens, ABB, Schneider
• Material：PVC
• Control Mode：PLC
• Color：Customized
• Speed：1-12m,Min
• Capacity：80-150kg,H

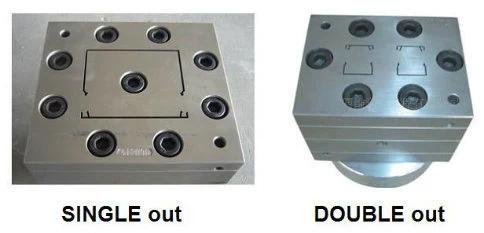

• Type：Single and Double out
• Structure：Double Screw Extruder
• PVC：Powder
• Transport Package：Film and Wooden Box
• Specification：150kg,h
• Trademark：Yusheng
• Origin：Zhangjiagang
• HS Code：84778000
• Production Capacity：30sets Per Month

Basic Info.

Model NO. YF180 Size 16-100mm Electrical Parts Siemens, ABB, Schneider Material PVC Control Mode PLC Color Customized Speed 1-12m/Min Capacity 80-150kg/H Type Single and Double out Structure Double Screw Extruder PVC Powder Transport Package Film and Wooden Box Specification 150kg/h Trademark Yusheng Origin Zhangjiagang HS Code 84778000 Production Capacity 30sets Per Month

Product Description

Brief Introduction:

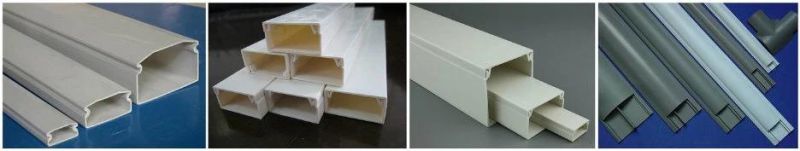

1.PVC cable trunk extrusion line is applied to produce U channel profile which used as PVC electrical cable trunking/cable duct.

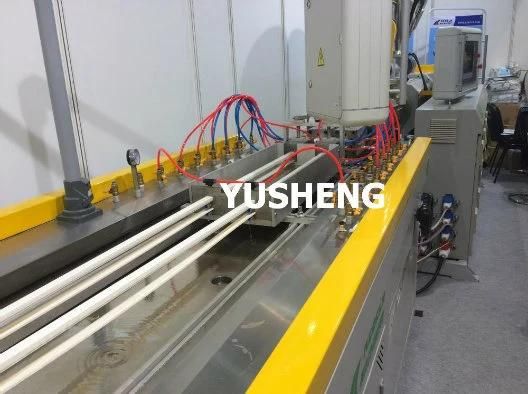

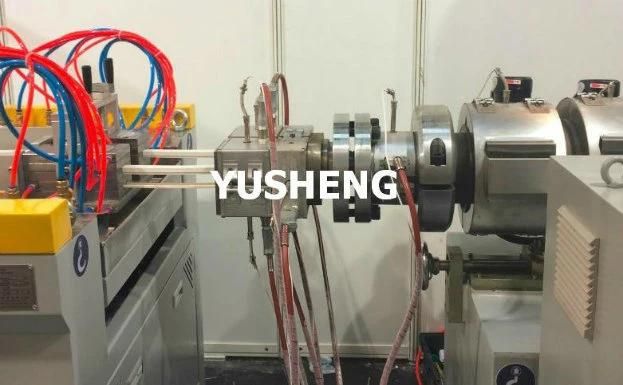

2.This production is composed of conical twin-screw extruder, vacuum calibration table, haul-off, cutter and stacker.
3.Chang different extruding mould,this machine can also produce PVC door & window profiles, foamed special shaped materials profiles, decoration plate material, profile and multi-hole wire plastic products, etc.



Extrusion process:

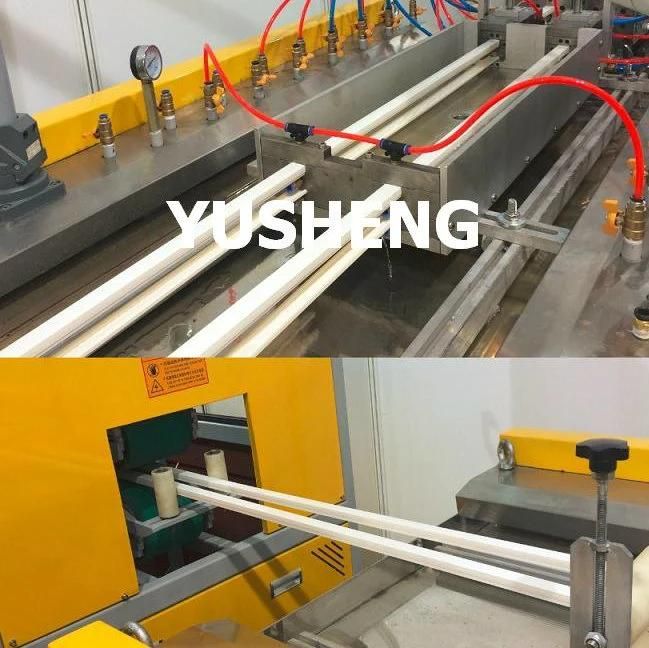

PVC powder + additives → Mixer → Screw feeder → Extruder → Mould → Vacuum forming table→ Haul-off machine→ Cutting machine → Stacker.

If any need, please contact me to my email or cell phone.

Model number	Screw diameter (mm)	Rotational speed of screw (rpm)	Effective work length (mm)	Main motor power (kw)	Heating power of Barrel (kw)	Production capacity (kg/h)	Central height of machine (mm)	Net weight	Overall size (mm)
SJSZ45	45/90	1-45	1070	15	9.6	70	1000	2800	3300*1200*2000
SJSZ51	51/105	1-45.5	1100	22	11.5	80	1000	3000	3360*1290*2100
SJSZ55	55/110	1-40	1200	22	18	150	1000	3500	3620*1350*2200
SJSZ65	65/132	1-38	1440	37	24	250	1000	4000	4235*1520*2450
SJSZ80	80/156	1-36.9	1800	55	36	360	1000	5000	4750*1550*2460
SJSZ92	92/188	1-34.7	2500	110	88	1000	1000	5500	6000*1600*2500
