3D Filament Extruder Machine 3D Printer ABS Filament Making Machine

Zhangjiagang Plastar Machinery Co., Ltd.
  • After-sales Service：Engineers Available to Overseas
  • Warranty：1 Year
  • Type：Filament Extruder
  • Plastic Processed：PETG PC PLA ABS Peek Nylon
  • Product Type：Granulating Extruder
  • Feeding Mode：One Feed

Base Info

  • Model NO.：PL
  • Assembly Structure：Integral Type Extruder
  • Screw：Single-Screw
  • Engagement System：Intermeshing
  • Screw Channel Structure：Deep Screw
  • Exhaust：Exhaust
  • Automation：Automatic
  • Computerized：Computerized
  • Screw Design：Single Screw
  • Screw Diameter：25mm, 35mm, 45mm
  • Color：Customized
  • Cooling Type：Water Cooling
  • Raw Material：Pet, Peek, PLA, PC, ABS, Nylon
  • Final Product：Filament
  • Usage：3D Printer Filament Extrusion
  • Filament Dia.：1.75-3mm
  • Tolerance Control：0.02-0.03mm
  • One Spool Weight：About 1kg
  • Whole Line Length：12.5meters
  • Whole Line Weight：2t
  • Main Motor Power：5.5kw
  • Capacity：20-25kg,H
  • Name：Plastic 3D Printing Filament Extruder Mac
  • Transport Package：Standard Pacakge
  • Specification：It depends
  • Trademark：Plastar
  • Origin：China
  • HS Code：84772090
  • Production Capacity：1000sets,Year

Description

ModelPowerDiameterCapacityToleranceMaterialPL-252.2 KW1.75mm-3mm3-5Kg/h+0.02mmPLA ABS HIPS PA PET Nylon PPPL-304 KW1.75mm-3mm10-15Kg/h+0.02mmPLA ABS HIPS PA PET Nylon PPPL-457.5 KW1.75mm-3mm20-25Kg/h+0.02mmPLA ABS HIPS PA PET Nylon PP


This Filament Extrusion Line is Composed by following parts:

No.ItemQty1Hopper Dryer1 Set2Single Screw Plastic Extruder1 Set3Die2 Sets4Hot & Cooling water cooling tank2 Sets5Horizontal storage rank1 Set6Backstop machine1 set7Haul-off machine1 set8Winding machine1 set

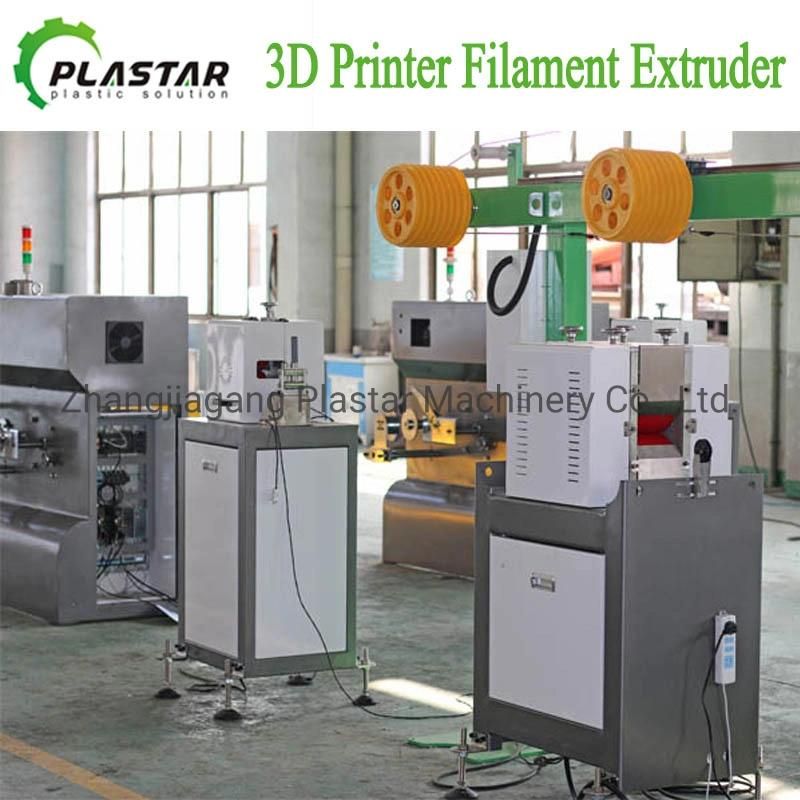

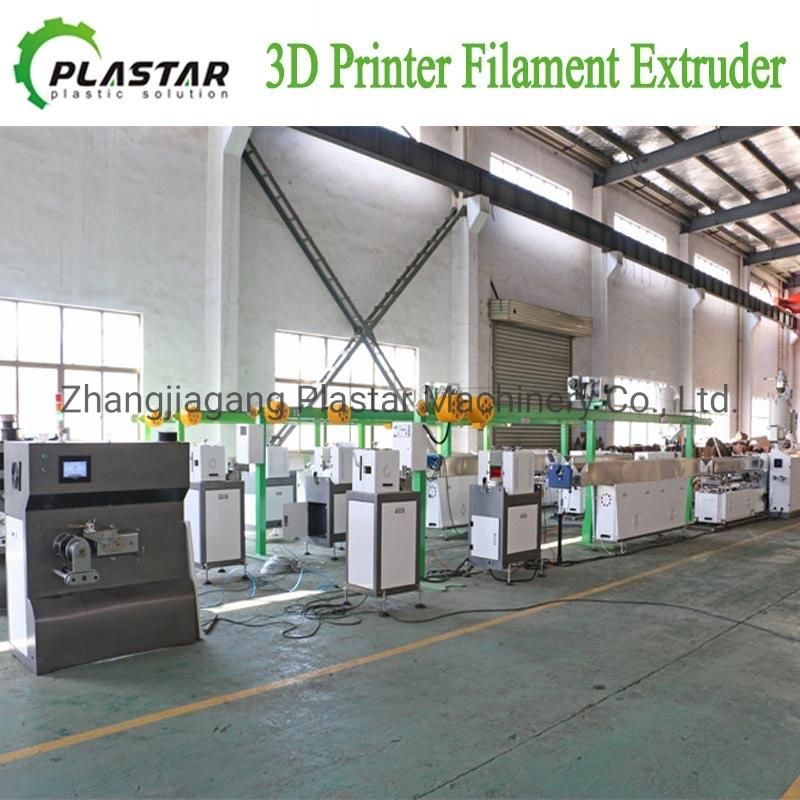

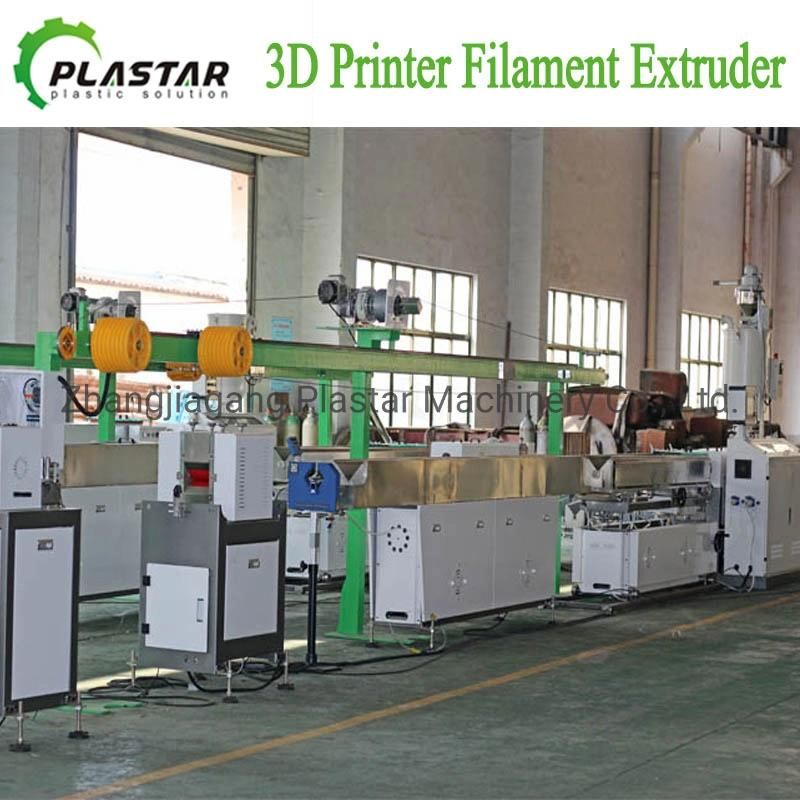

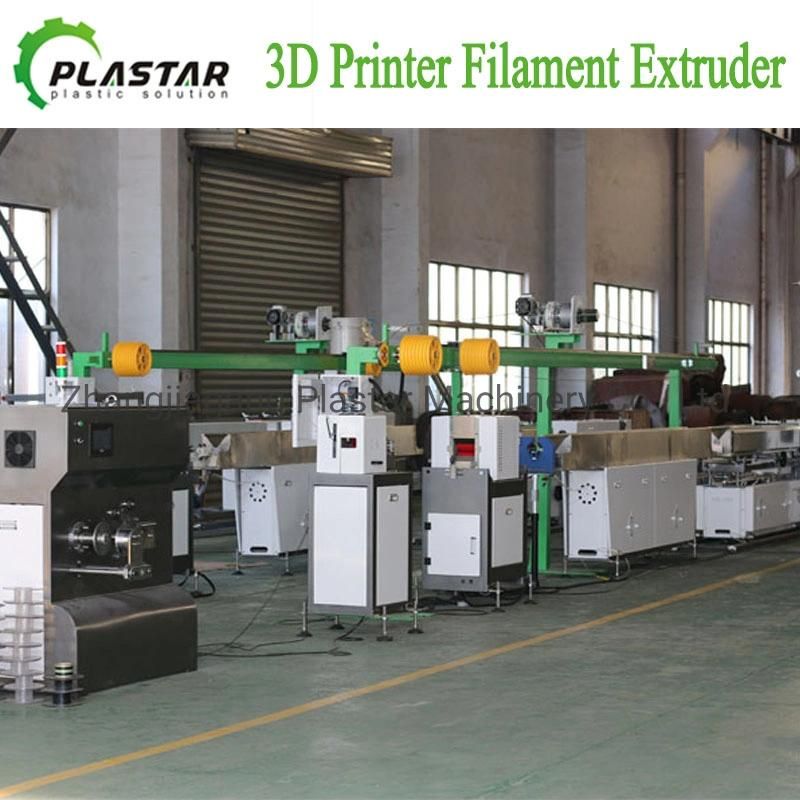

Our filament making extruder machine pictures for reference:

3D Filament Extruder Machine 3D Printer ABS Filament Making Machine3D Filament Extruder Machine 3D Printer ABS Filament Making Machine



We have different machine models with different capacity for your choice:

ModelPowerDiameterCapacityToleranceMaterialPL-252.2 KW1.75mm-3mm3-5Kg/h+0.02mmPLA ABS HIPS PA PET Nylon PPPL-304 KW1.75mm-3mm10-15Kg/h+0.02mmPLA ABS HIPS PA PET Nylon PPPL-457.5 KW1.75mm-3mm20-25Kg/h+0.02mmPLA ABS HIPS PA PET Nylon PP



3D Filament Extruder Machine 3D Printer ABS Filament Making Machine3D Filament Extruder Machine 3D Printer ABS Filament Making Machine3D Filament Extruder Machine 3D Printer ABS Filament Making Machine3D Filament Extruder Machine 3D Printer ABS Filament Making Machine3D Filament Extruder Machine 3D Printer ABS Filament Making Machine
