• Model NO.：JY-450ST
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Transport Package：Wooden Case
• Specification：1.7*1.2*3m
• Trademark：JieYang
• Origin：China
• HS Code：8477209000
• Production Capacity：200 Sets,Month

MODELJY-450STScrew Diameter30mm32mm35mmSafe Shot Weight(PS)2.6OZ3.0OZ3.75OZOpening Stroke200mmClamping Force(T)45TonsPlaten Size580×430mmDistance  Between Tie Bere  410×250mm Min Mold Height(KW/HP) 220/70mm  Pum Motor Power 5.5/7.5/HP Machine Dimensions(LxWxH) 1.7×1.2×3.0m  Number of Temperature Control3PCS Pump Output37.2L/min Oil Resservoir Capacity130LiterBarrel Heating Power2.8KW Cooling Water Consumption600-800L/hr Total Power9KW Machine Weight1.8Tons Shipping Weight1.9Tons

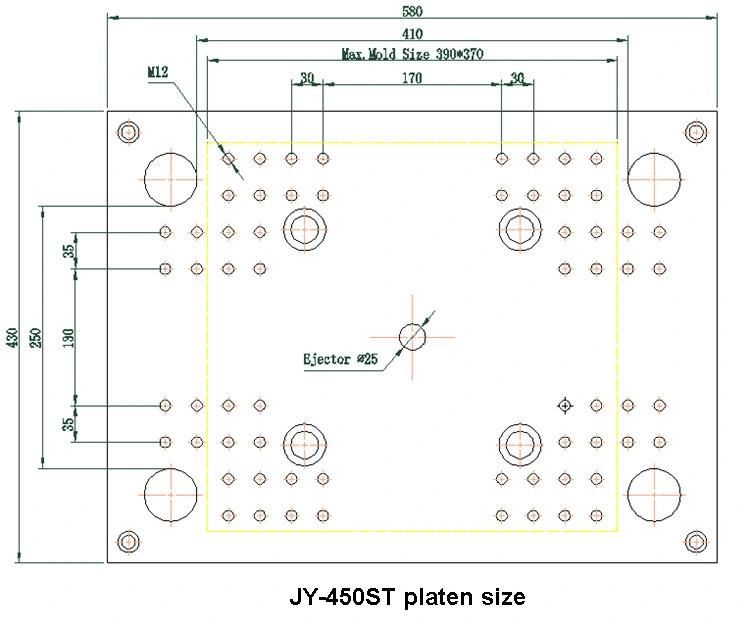

Mold Platen Details:



Functions

1) Straight screw ejected assembly.
2) Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3) Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4) Low-pressure closed die assembly can protect the safety of die.
5) Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6) Can be installed a single mold or double shuttle table.

Machine Application

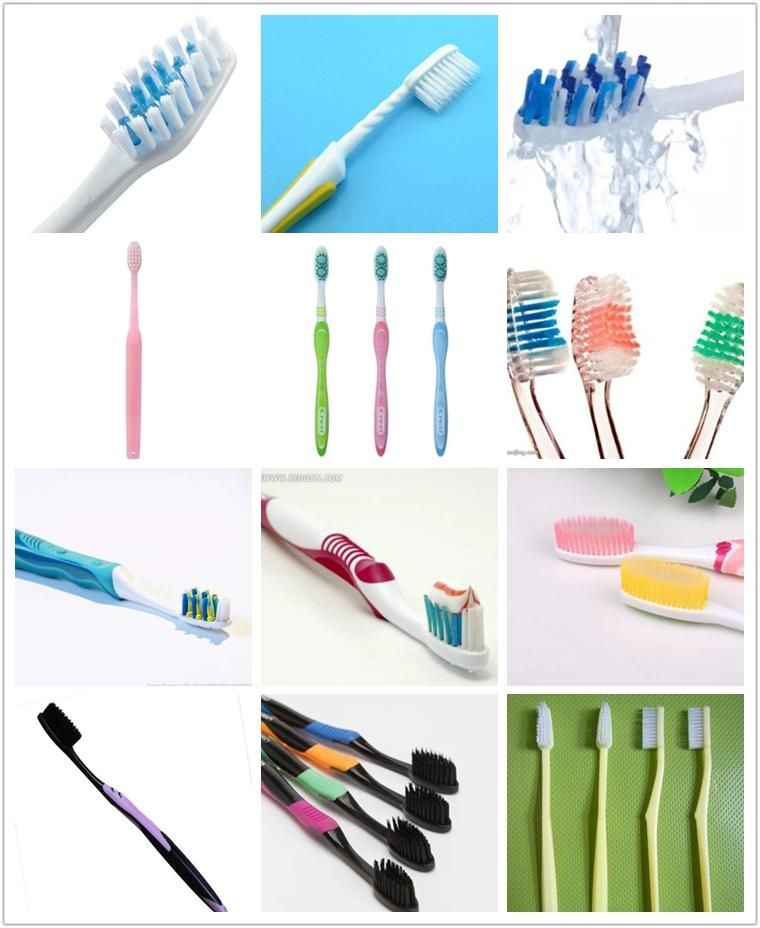

     vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.

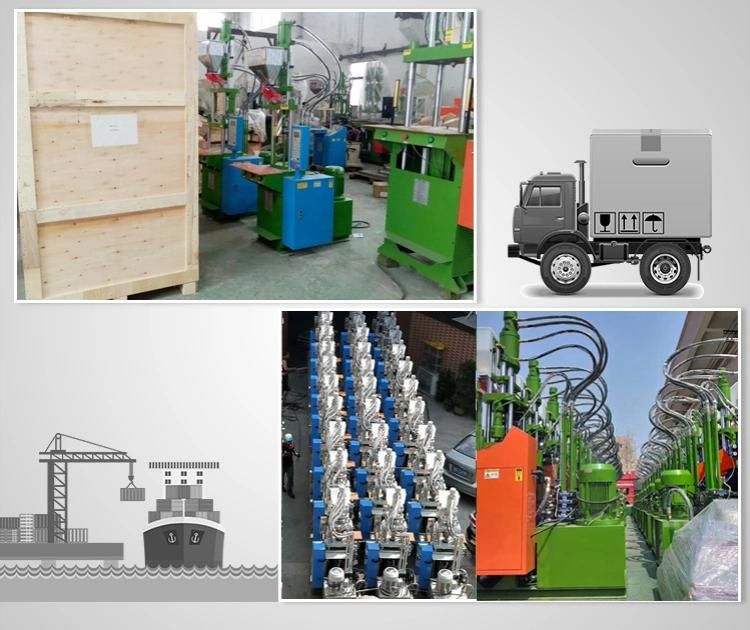

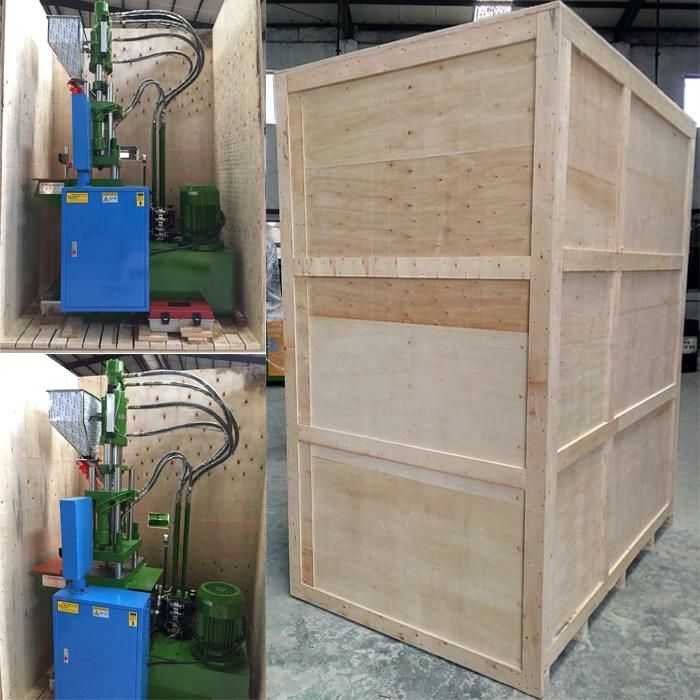

Packaging & Shipping

1.We will arrabge to manufacture the machine the second day after your confirmation.

2.Before shipment,we will check and test the machine carefully.

3.We will send the machine to your designated place in China.Besides,we can help you send the machine to your seaport if you need.



Company Information

        Dongguan Jieyang Machinery Co., Ltd is established in 2005, which is located in Xincheng Industrial Zone of Hengli Town. Our factory is about 2000 square meters. We have more than 20 years manufacturing experiences of vertical plastic injection molding machines with precision machining equipment and professional team. We do our best to provide the solution with competitive cost to our customers and it is recognized by all our customers.
        We warmly welcome you to visit our factory, we are waiting for you at JieYang!
Our Goal: "Customer Satisfaction, Continual Improvement and Innovative Service" is the driving force for our company to moving forwards. We will devote every efforts to do our best level.



Certifications



Contact us



Our Service:

1. 24 hours online and telephone support; Nomatter anytime, anywhere or any question I will reply you as soon as possible.

2. Exclusive and unique solution can be provided to our customers by well-trained and professional engineers and staffs.

3. Engineers and professional technicians keep seeking the new ways to innovate all of our wheel loaders, which could provide you the most competitive products.

4. Global cooperation with distributors, you can get the most convinent after-sale service. Special discount and protection of sales area provided to your distributor.

5. Your success is our business. We will do our best to provide you the most competitive product with high quality and low price.





Please contact us,we will provide a professional production plan for you.

Neo Lee
