• Model NO.：TSSK75
• Degassing：Natural Degassing
• Pelletizing Way：Water-Ring Hot Die
• Delivery Time：45 Working Days
• Extruder：Twin Screw
• Cooling Way：by Wind
• Heater：Cost Al
• Cursher：Crush The Material
• Transport Package：Film Packing and Wood Base or Wood Case
• Specification：pellets size Φ 2.5*3mm
• Trademark：JORBIN
• Origin：Zhangjiagang City
• HS Code：84772010
• Production Capacity：10sets,Year

Basic Info.

Model NO. TSSK75 Degassing Natural Degassing Pelletizing Way Water-Ring Hot Die Delivery Time 45 Working Days Extruder Twin Screw Cooling Way by Wind Heater Cost Al Cursher Crush The Material Transport Package Film Packing and Wood Base or Wood Case Specification pellets size Φ 2.5*3mm Trademark JORBIN Origin Zhangjiagang City HS Code 84772010 Production Capacity 10sets/Year

Product Description

WPC compounding granulating machine, compounding wood powder with plastic and other additives, then it can be used for door, window and other parts

Machine description
1.WPC pellets plastic production line consists of  conical twin screw extruders, wind blower, crusher, wind blower and silo.

2.Twin screw and barrel with high quality alloy extrusion for pellet. each degassing with force press system, in order to press the wood go into the extruder.

3.Crusher to crush the material which come out from the extruder.

Features: Well-proportioned, stable quality, high efficiency, high output, wide applicable range, long serving life.

Machine detail parameter

Item NO.	Item name	Quantity	Power
1	Feeder	1 set	1.5kw
2	TSSK75 twin screw extruder	1 set	75kw
3	Blower	1 set	3kw
4	Crusher	1 set	22kw
5	Blower	1 set	3kw
6	Electrical control box	1 set	_

The advantages of this machine

1. Highly efficent: the machine is automatic and with less power consumption.
2. Special screw design: We will design the screw up to customer different material and the material of screw and barrel can be 38CrMoAL or bimetallic.
3. High capacity: the capacity of the machine is about 300kg/h
4. Material come out more stably: material go through from the first stage to the second stage, with two screen changer, much more impurity will be filterd and the material come out from the die won't broken down.
5. Beautiful pellets: two degassing system, no air in the pellets.
6. The machine wih long life.

More machine photoes
Feeder on the machine

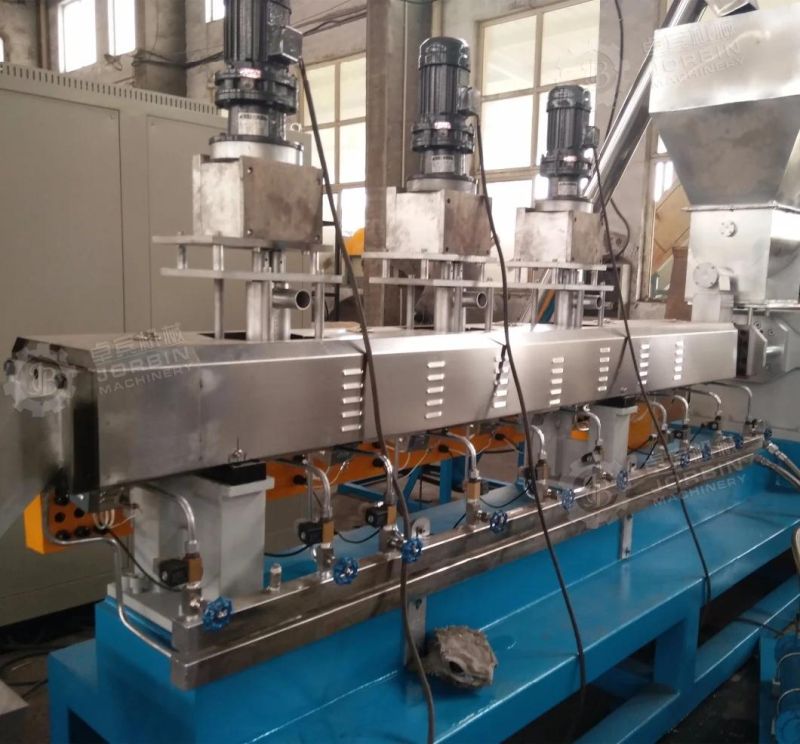

Main extruder machine, there is press system on each degassing, so that the wood powder won't go out of it.

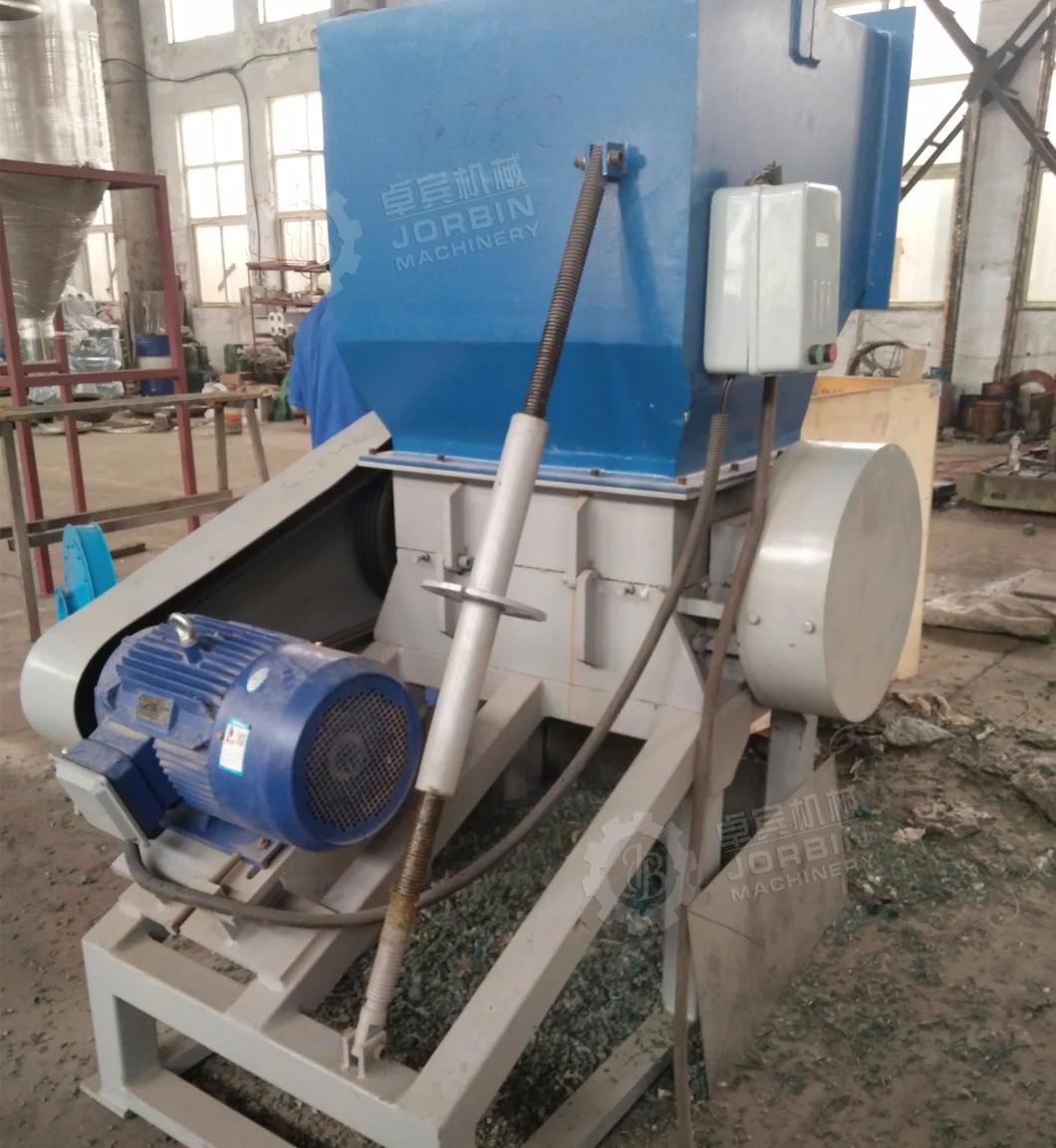

Material come out the extruder and will be send to crusher by blower system.After the crusher the material will be send to silo by another blower system.

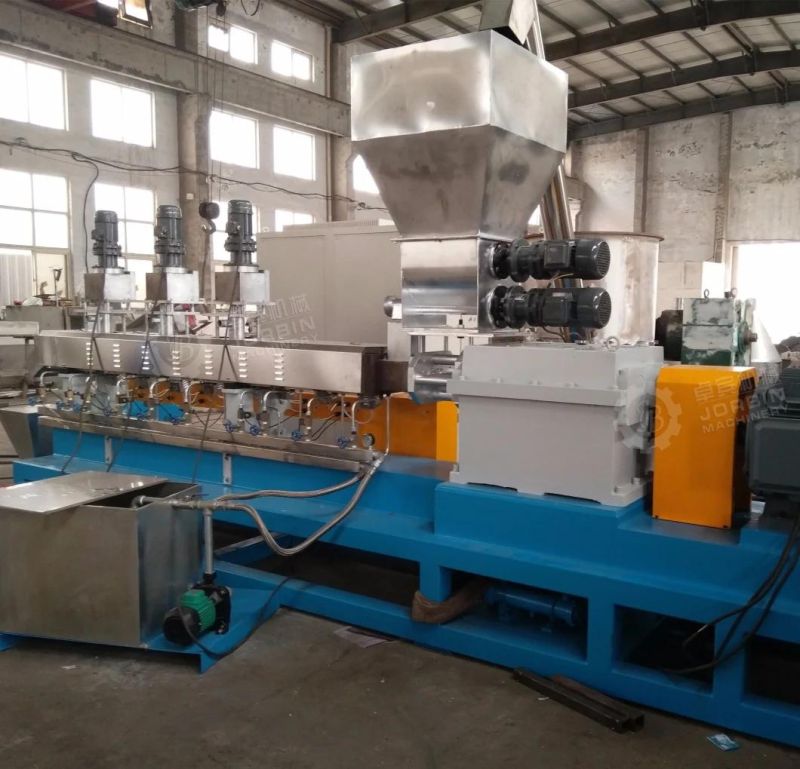

The whole line of the machine

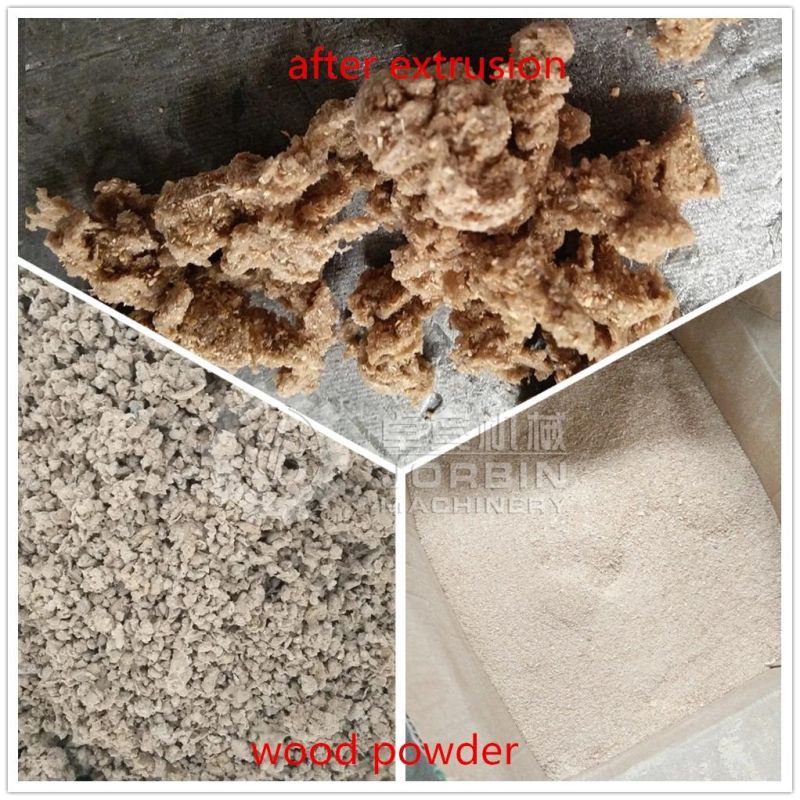

Material produce

If you need more photoes or viedo of this machine, kindly contact me.


1. We supply below necessary documents with the machine:

1. Machine layout
2. Electricity diagram
3. Machine certificate
4. General manual book/maintenance book

2. We provides one-year quality guarantee. During this period, if the machine's malfunction is approved to be our responsibility, we will send the broken spare parts to you with DHL courier or other way within 7 workdays after receiving the complainant. And send the technicians to the buyer's factory for maintaining. All charges are in our account.

3. After one year guarantee, If you need we can provides payable spare parts and technician's VISITING maintenance, and any broken spares we can send you soon as possible.

4. We trust that our quotation meets with your requirements and we will gladly furnish you with further information.

5. 24Hours service :  Cell+86-13915707468
