• Model NO.：SJ-65-1200
• Computerized：Computerized
• Machine Weight：4T
• Certification：CE, ISO9001:2008
• Over Dimensions：7.5*3.2*8
• Output：70kg,H
• Die Head：Rotary Die Head
• Rewinder：Double Winder
• Transport Package：Film Package
• Specification：SGS
• Trademark：YUNBANG
• Origin：China
• HS Code：84773090
• Production Capacity：15 Sets,Month

Basic Info.

Model NO. SJ-65-1200 Computerized Computerized Machine Weight 4T Certification CE, ISO9001:2008 Over Dimensions 7.5*3.2*8 Output 70kg/H Die Head Rotary Die Head Rewinder Double Winder Transport Package Film Package Specification SGS Trademark YUNBANG Origin China HS Code 84773090 Production Capacity 15 Sets/Month

Product Description

Product Description

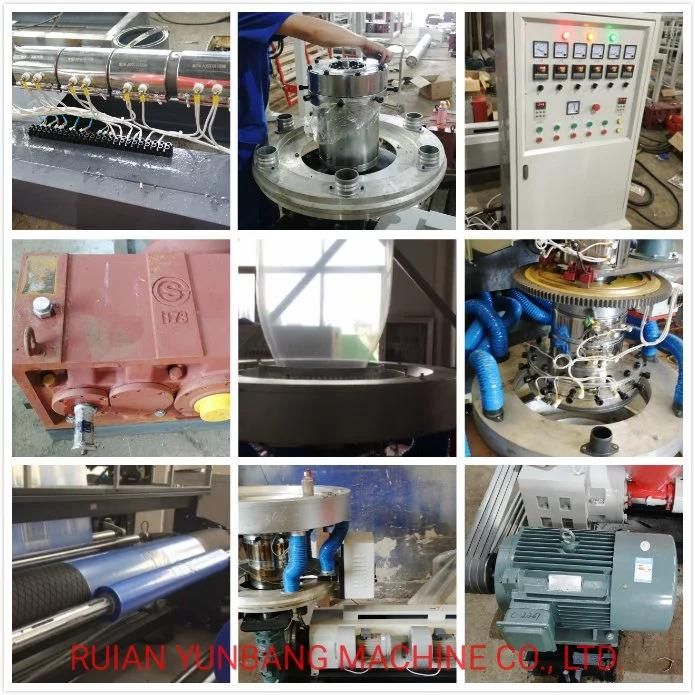

The cylinders and the screw stems of the extruder are made of high quality
alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment and precision finishing. The auxiliary machine has a plat from working table for making operation easy and is equipped with bubble stabilizing ring.
Double-rolling and double-cutting coiling unit adopts torque motor to motor to
keep proper tension and make even and roll-changing easy.

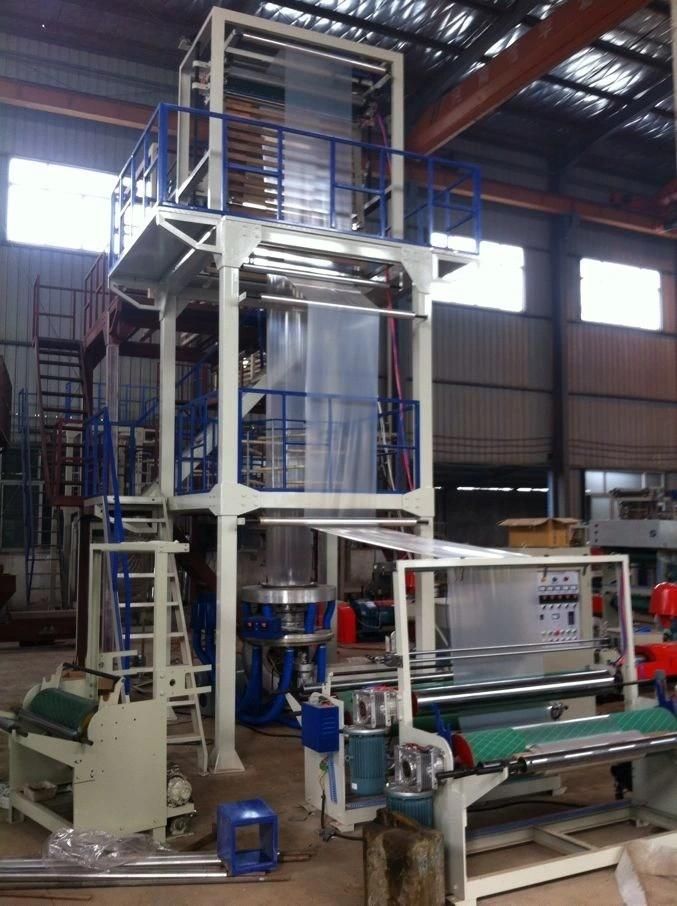

USAGE:
It is used for blowing the various plastic film of low density polyethylene
(LDPE), high density polyethylene (HDPE) and linear low density polyethylene
(LLDPE) etc, which are widely used for packing liquid, industrial products,
Garments and textile, Eat. And printing lamination.

Model	SJ-800	SJ-1000	SJ-1200
Screw Diameter	55mm	60mm	65mm
Screw Ratio	L/D28:1	L/D28:1	L/D28:1
Screw Speed	10-100r/min	10-100r/min	10-100r/min
Max. Extrude Output	50kg /h	65kg /h	70kg /h
Power of Main Motor	15KW	18.5KW	22KW

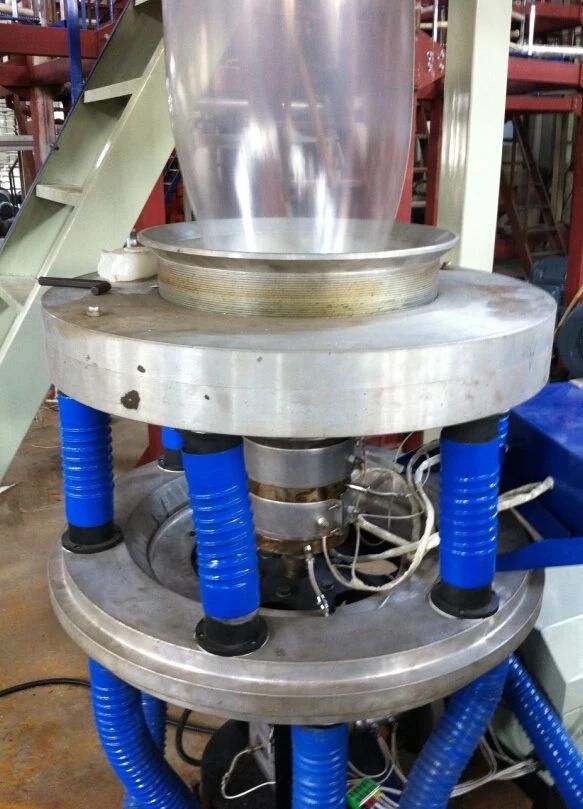

Specification of Die Head	φ80/φ160mm	φ120-φ220mm	φ130-φ250mm
Rotational Mode of Die Head	Continuous Rotation	Continuous Rotation	Continuous Rotation
Single-side Thickness of Film	0.01 -0.10mm	0.01 -0.10mm	0.01 -0.10mm
Max. Folding Width of Film	800mm	1000mm	1200mm
Total Power	26Kw	30Kw	42Kw
Weight of Machine	3600kg	4200kg	5000kg
Overall Dimension(L×W×H)	6000×2200× 4000mm	6500×2400× 4500mm	6800×2600× 4800mm
