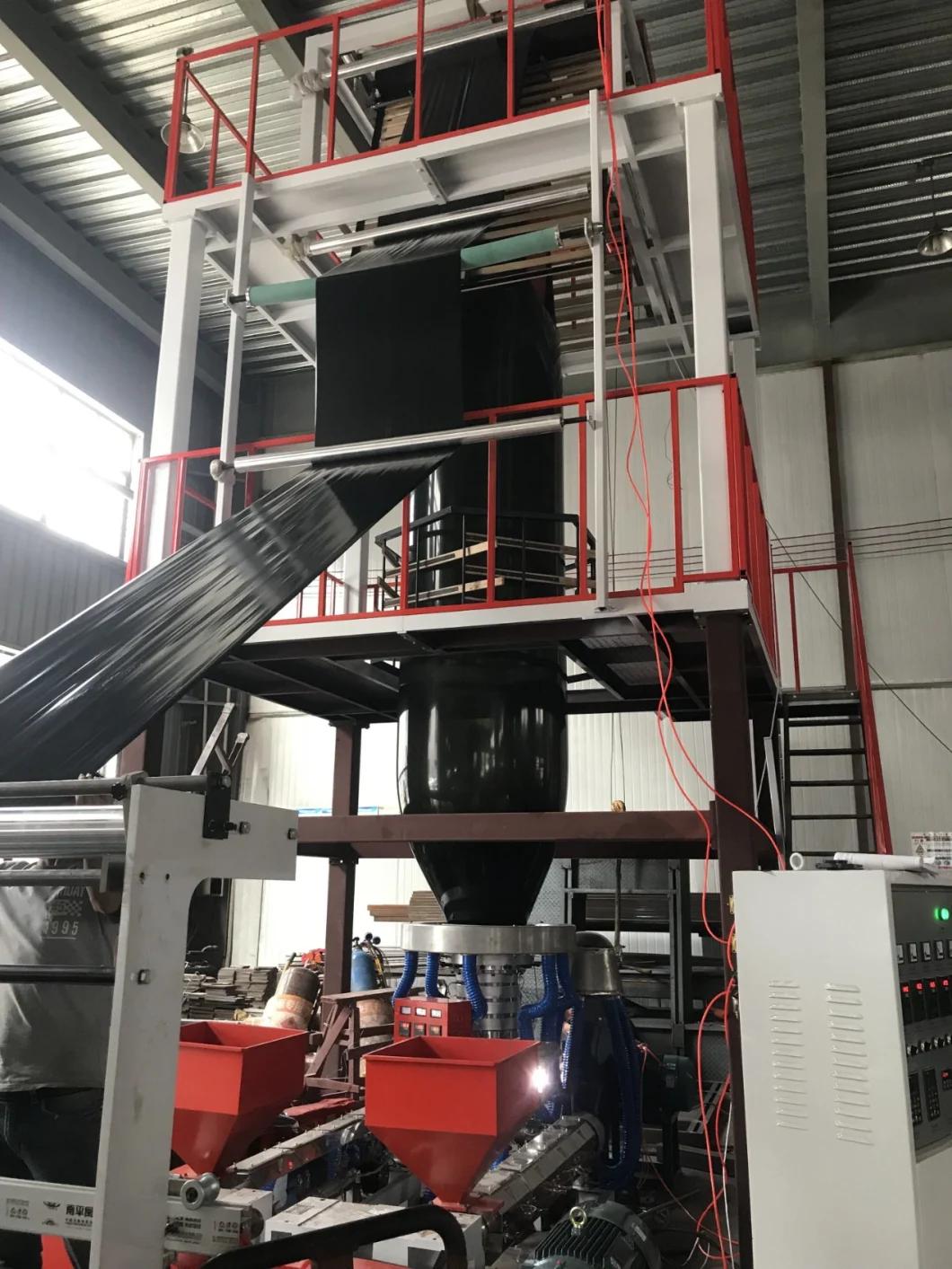

PE Blown Film Extrusion Production Lines
RUIAN YUNBANG MACHINE CO., LTD.- Warranty：One Year
- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：1200mm
- Screw Diameter：65mm
- Automation：Automatic
Base Info
- Model NO.：SJ-
- Computerized：Computerized
- Machine Weight：4T
- Certification：CE, ISO9001:2008
- Film Thickness：0.008-0.15mm
- Material：HDPE&LDPE
- Output：25-80kgs
- Rewinder：Single or Double
- Transport Package：Film Package
- Specification：SGS
- Trademark：YUNBANG
- Origin：China
- HS Code：8477309000
- Production Capacity：10 Set Per Month
Description
Model
A50
A55
A65
A65-1
Diameter of screw
φ50
φ55
φ65
φ65
Lay-flat width of film
100-600
200-800
300-1000
400-1200
Thickness of single film face
0.01-0.10
0.01-0.10
0.01-0.10
0.01-0.10
Max. extruding capacity
35
50
65
80
Length-diameter ratio
28:1
28:1
28:1
28:1
Power of main machine
11
15
18.5
22
Power of traction motor
1.1
1.1
1.5
1.5
Heating powe
15
17
23
25
Overall dimensions
4800 x 1900 x 4100
5500 x 2100 x 4700
6500 x 2300 x 4900
6500 x 2500 x 5600
Weight
1.5T
2T
2.3T
2.6T
