• Model NO.：GF200
• Condition：New
• Certificate：Ce,ISO,Form E,Certificate of Original
• Guarantee：One Year
• Electrical Parts：Siemens, ABB, Schneider
• Machines：Siemens
• Speed Control：Inverter
• Inverter：ABB
• Manufacturing Time：40 Days
• Delivery：Shipment
• Pack：Film and Wooden Box
• Machine Color：Customized
• Transport Package：Plastic Film,Wooden Box
• Trademark：Yusheng
• Origin：China
• HS Code：8477209000
• Production Capacity：10 Sets Per Month

Basic Info.

Model NO. GF200 Condition New Certificate Ce/ISO/Form E/Certificate of Original Guarantee One Year Electrical Parts Siemens, ABB, Schneider Machines Siemens Speed Control Inverter Inverter ABB Manufacturing Time 40 Days Delivery Shipment Pack Film and Wooden Box Machine Color Customized Transport Package Plastic Film/Wooden Box Trademark Yusheng Origin China HS Code 8477209000 Production Capacity 10 Sets Per Month

Product Description

Machine name: PVC drainage pipe extrusion machine

Application:
Applied for manufacture of caliber PVC, UPVC supply and drain pipes.

Performance &Advantages:

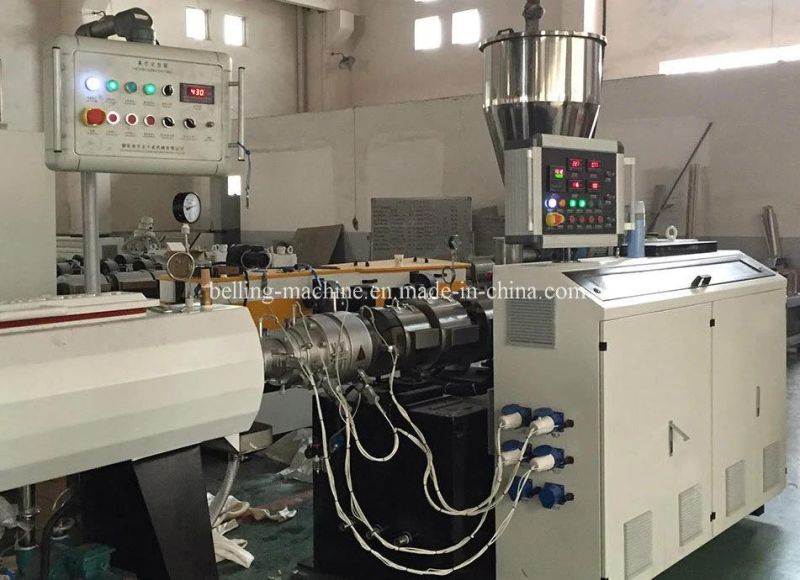

GF series plastic pipe production line is mainly used in manufacture of the plastic PVC pipes with tube diameters and wall thickness, which are used for water supply and drainage in the field of agriculture and construction. This line is composed of conical twin-screw extruder, vacuum calibration table, haul-off, cutter, stacker etc. The extruder and the haul-off adopt the quality AC frequency conversion control device. The vacuum pump and motor adopt the famous brand. The haul-off have two-claw, three-claw, four-claw, six-claw. It may choose the saw blade cutting type or the planet cutting production efficiency. Our company may equipped the special device for the manufacture of the inner wall spiral coil and core layer blister according to the client's requirement.

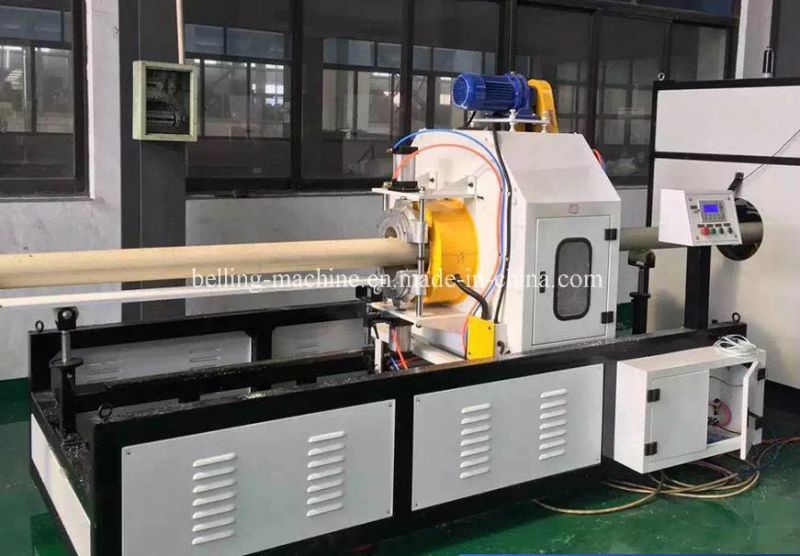

1. PVC raw material Auto Loader 1 set 2. High speed Mixer unit 1 set 3. Raw material Mixture Auto Loader 1 set 4. Main extruder 1 set 5. Mould/Die head 1 set 6. Vacuum calibration tank 1 set 7. Haul off machine 1 set 8. Cutting machine 1 set 9. Stacker 1 set 10. Words Printing machine 1 set 11. PVC pipe Crusher/Grinder 1 set 12. PVC Pulverizer/Milling machine 1 set 13. Color line co extruder 1 set



Item GF63 GF110 GF160 GF250 GF400 GF630 GF800 Diameter of pipe material (mm) Diameter 16-63 Diameter 16-110 Diameter 32-160 Diameter 63-250 Diameter 160-400 Diameter 315-630 Diameter 450-800 Claw number of drawing machine 2 2 2 3 4 6 8 Pulling force(KN) 6 8 11 20 30 40 50 Drawing speed (m/s) 15 12 8 9 4 2 2 Tatal power of auxiliary machine(kw) 14 14 14 21.5 41 56 64
