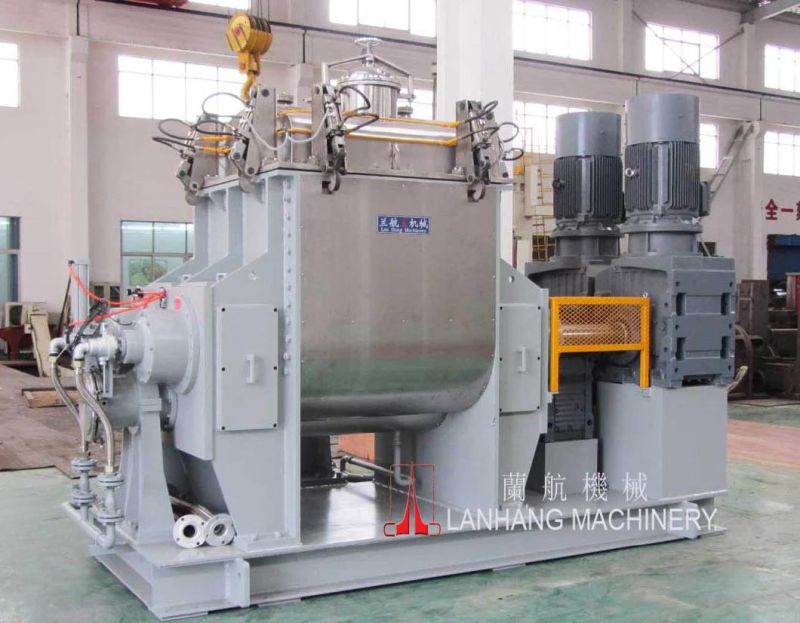

Silica Rubber Processing Machine Mixer Kneader
Zhangjiagang Lanhang Machinery Co., Ltd.- Condition：New
- Machine Type：Plastic Kneader Machine
- Place of Origin：Jiangsu, China (Mainlan
- Voltage：380V
- Brand Name：Lanhang
- Power(W)：300000
Base Info
- Model NO.：nh-2000
- Dimension(L*W*H)：3400X2400X1900 mm
- Weight：25 T
- Warranty：1 Year
- After-Sales Service Provided：Overseas Service Center Available
- Transport Package：Wood Pallet & Film Wrap (Kneader Machine)
- Specification：CE, SGS, lAF, CNAS
- Trademark：LANHANG(OEM acceptable)
- Origin：Zhangjiagang, Jiangsu
- HS Code：84778000
- Production Capacity：200 Set,Sets Per Year
Description
Model
NH-5000
NH-3000
NH-2000
NH-1500
NH-500
Capacity (L)
5000
3000
2000
1500
500
Filling Coefficient
0.6
Agitator Blade
Sigma Z Blade Rotor
Rotating Speed
N1 35r/min N2 21r/min
N1 40r/min N2 21r/min
Jacket Pressure (Mpa)
≤ 0.3
Chamber Pressure (Mpa)
≤ -0.094
Cooling Type
Water Cooling
Heating Methods
Jacket Steam / Oil / Electricity Heating
Discharging Types
Hydraulic Tilting / Drop Door / Screw Extruding
Unique Function
Vacuum and Nitrogen-filled Kneading Available
Power Supply
AC 380V 50HZ 3P (customized available)
Motor Power (Kw)
300
220
160
132
90
Overall Dimension (mm)
3400x2400x1900
3400x2200x1800
3280x2100x1700
3200x2000x1650
3000x1980x1600
Weight (T)
25
15
11
9
6
Application of Lanhang Brand Kneader Machine
The field of application comprises of the rubber, plastics, paint, adhesives, pharmaceutical, cosmetics and foods industry as well as the general chemicals industry. Depending on the application, the mixed compound is discharged by tilting the mixing chamber, by a discharge screw or via bottom discharge valves for transfering to the next step of process.
Function of Lanhang Machinery Kneader Machine
The kneader is special used for mixing and kneading high-viscosity material. It has a excellent effect for mixing, kneading, crushing and dispersing because of the intense force produced by two powerful rotary agitator blades.
Packaging & Shipping
Wood Pallet & Film Wrap ( Kneader Machine )
Our Services
Kneader Machine
1. One year warranty
2. Engineers available to service machinery overseas (installation, debugging, commissioning and maintenance.)
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. Life-long technical support
