• Model NO.：SJ02-3500
• Model：Sj02-3500
• Voltage：380V or Customised
• Main Motor Power：2.2kw
• Operation Air Pressure：0.4-0.6MPa
• Air Consumption：100L,Min
• Motor Rotaional Speed：2800r,Min
• Double Cutting Length：450-3500mm
• Cutting Thichness：<105mm
• Machine Size：4000X1120X1450mm
• Weight：620kgs
• Transport Package：Wooden Case
• Specification：ISO9001
• Trademark：sunny
• Origin：China
• HS Code：8475
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. SJ02-3500 Model Sj02-3500 Voltage 380V or Customised Main Motor Power 2.2kw Operation Air Pressure 0.4-0.6MPa Air Consumption 100L/Min Motor Rotaional Speed 2800r/Min Double Cutting Length 450-3500mm Cutting Thichness <105mm Machine Size 4000X1120X1450mm Weight 620kgs Transport Package Wooden Case Specification ISO9001 Trademark sunny Origin China HS Code 8475 Production Capacity 50 Sets Per Month

Product Description

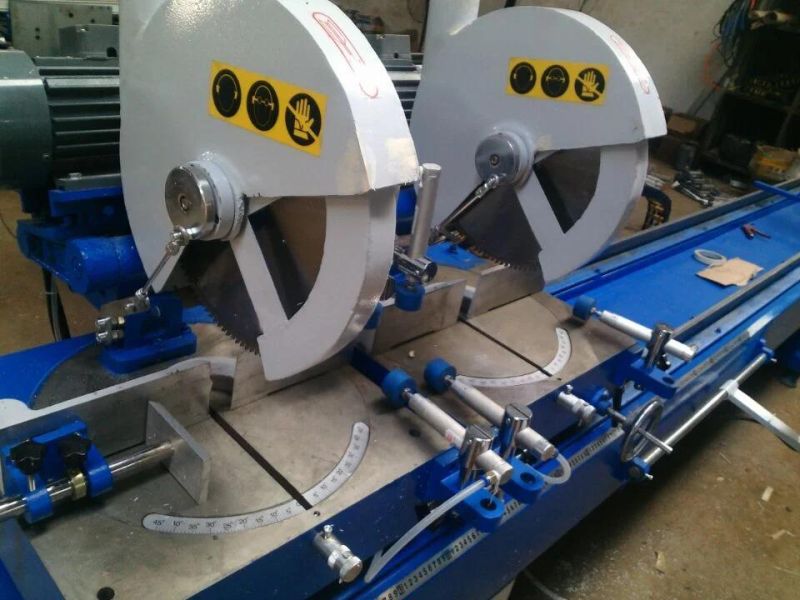

SJ02-3500 Double-head Cutting Saw for Aluminum & Plastic Profile:

This machine is used for processing the alumiumu and plastic profile at angles of 45 degree, 90 degree. The operation of profile clamp and cutting is pneumatic driving with swaying feed. It has the features of easy operation and high accuracy.

Technical Prameter:

Model:                           SJ02-3500
Power supply :              380V 50HZ
Input power:                  2.2KW
Air pressure:                  0.4-0.6Mpa
Air consumption:            100L/Min
Blade rotational speed:   2800r/min
Double cutting length:    450-3500mm
Cutting thickness:          ≤ 105mm
Cutting width:                ≤120mm
Outside dimension:       4000x1120x1450mm
Weight(about):              620Kgs


1)Guarantee the complete machine for one year, except the consumable parts.
2) 24hour technical support by email or calling.
3)User-friendly English manual for machine using and maintaining.
