• Model NO.：YSD180
• Knife Roll：Solid Knife Roller
• Automation：Automatic
• Computerized：Non-Computerized
• Certification：CE, ISO9001:2008, QS, UL, GMP
• Product Name：Plastic Crusher Machine
• Application：Waste Plastic Products
• Usage：Waste Plastic Cusher
• Function：Plastic Cutter Grinder Crusher Shredder Machine
• Color：Customers′ Demand
• Input Speed：25rpm
• Input Torque：400nm
• Input Shaft Diameter：φ35
• Blade Specifications：φ90*8
• Voltage：380V,415V,400V,220V(Customizable)
• Number of Blades：26PCS
• Processing Capacity：100-250kg,Hour
• Transport Package：Standard Packing
• Specification：722*590*350
• Trademark：YSDCNC
• Origin：China
• Production Capacity：600 Sets,Year

Company Name (manufacturer):     Nanjing Shanduan CNC Machine Tool Co., Ltd.

Brand:    YSDCNC

Address: MINGJUR INDUSTRIAL CONCENTRATION DISTRICT,SHIQIU TOWN,LISHUI AREA,NANJING,JIANGSU

Tel:+86 025-57262305 Phone:+86 18851629789

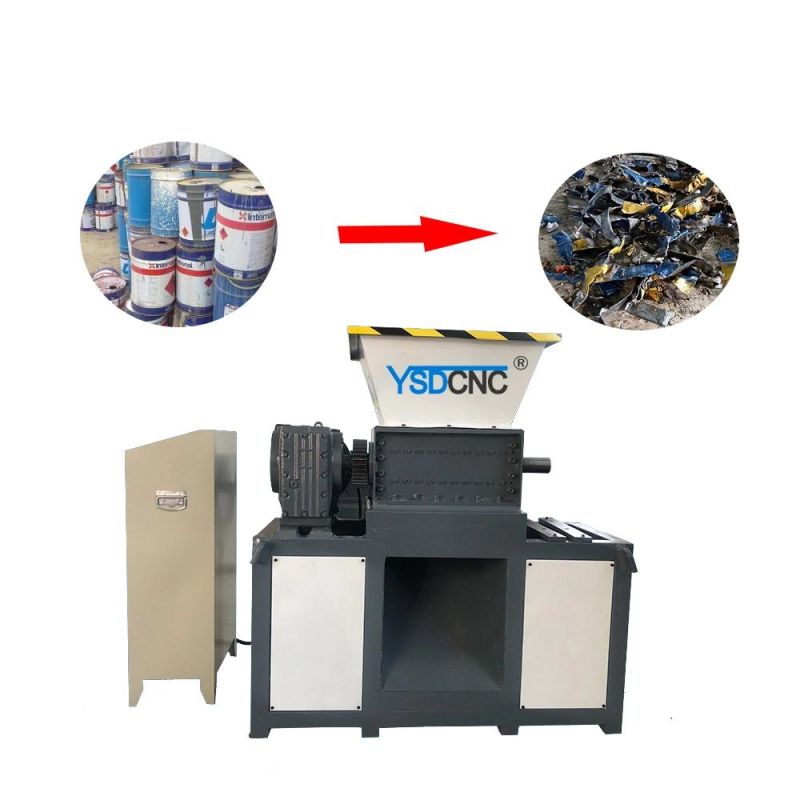

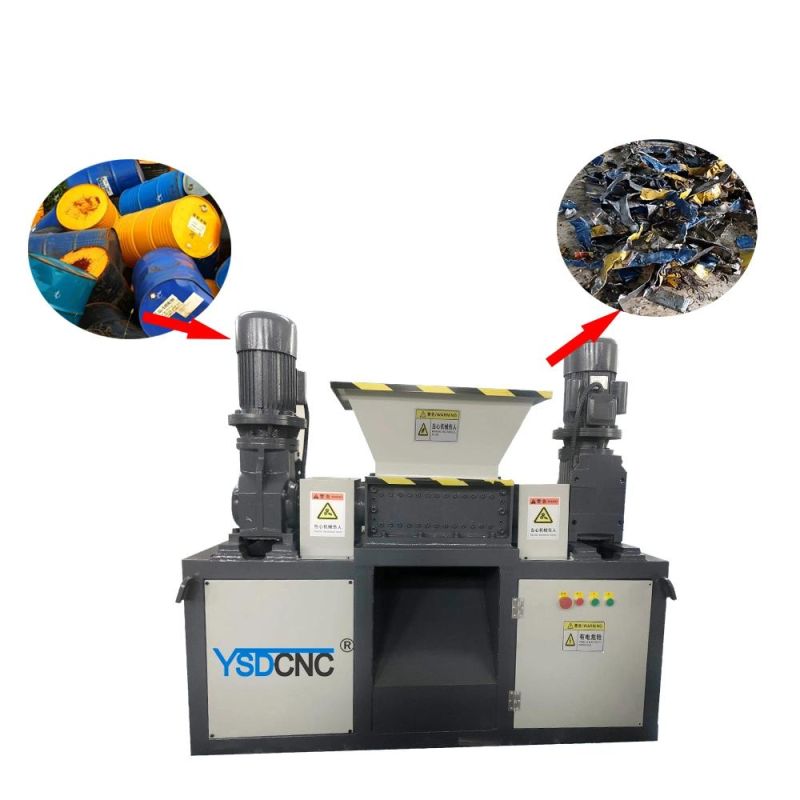

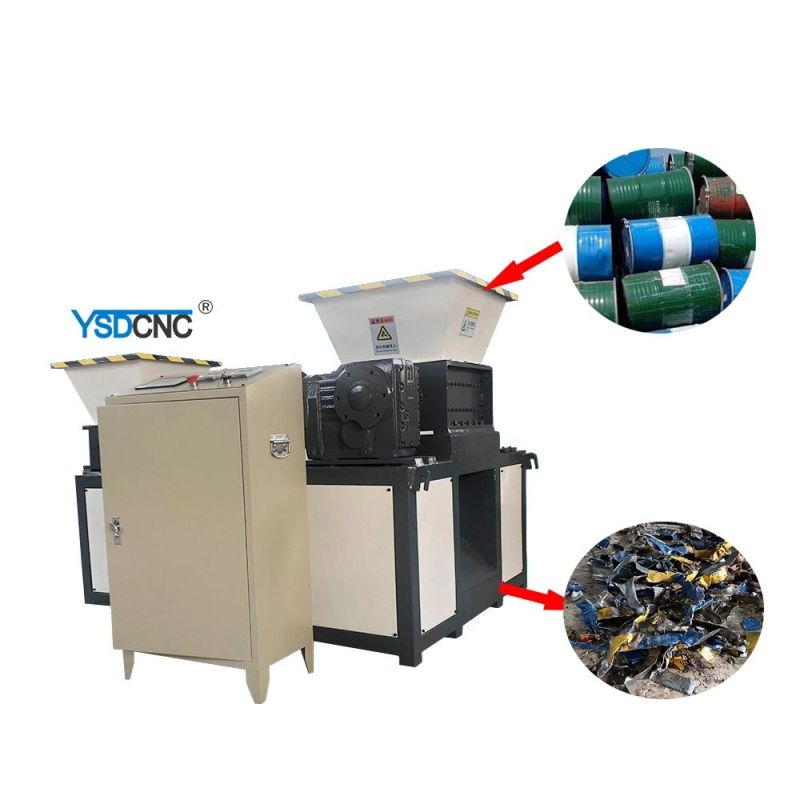

Crusher Machine

Working principle of double shaft shredder:

The double-shaft shredder is sheared by the blades on the two shafts to meet the requirements of shredding materials. The size after shredding is related to the thickness of the shredding blade and the number of teeth. The thinner the blade, the smaller the size of the shredded material. , The more the number of cutter teeth, the shorter the length of the shredded material.

Features of double shaft shredder:

Main body of shredder: The main body of the equipment adopts Q plate welding to eliminate stress treatment/ overall machining, which makes the equipment stable under heavy load for a long time.

Movable knife/fixed knife: The movable knife material is made of alloy tool steel forging, precision machining, multiple heat treatment and low temperature freezing heat treatment technology. The overall toughness and hardness can be reused to ensure cutting performance and service life. The fixed knife adopts the hook type installation to optimize the tool replacement function, so that the tool maintenance and replacement are excellent.

Bearing/seal: The bearing seat adopts the split and easy disassembly type, which can remove the movable knife, fixed knife, bearing and other parts, easy to maintain and replace the knife. The sealing structure can block the contact of broken objects and grease, and the handling of liquid materials can also protect the bearing and Gears and so on.

Cutter shaft: It is processed and refined with high-quality heavy-duty steel, and this tool is used to provide powerful power for cutting. Frame hopper: It can be customized to match the customer's site and can be integrated into the production line for mass production.

Motor reducer: use brand energy efficiency standard motor, excellent standard export products, and load before leaving the factory

Test to ensure the stability of the power system.

Electrical control system: The main electrical control adopts brand electrical components and an intelligent control system. The feeding and discharging conveying device has contacts in the electrical box control, which is easy to operate.

Multiple protection system: The shredding system has multiple intelligent protections such as machinery and electrical appliances. It is equipped with main motor startup protection, automatic loosening of feeding to prevent overload, motor jam and overload, automatic reverse rotation and re-distribution of materials to be shredded (the number of reversals can be Tune).

Application
