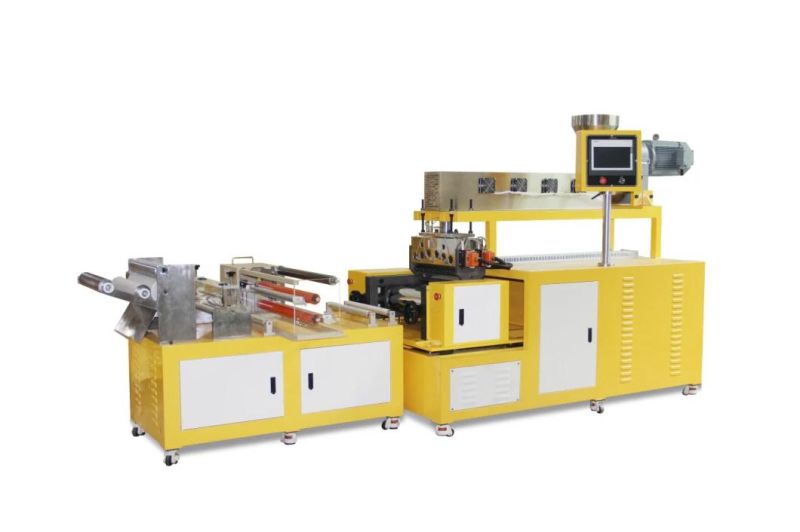

PP PE PVC Pet Plastic Polymer Casting Film Making Machine

Dongguan Xihua Machinery Technology Co., Ltd.
  • After-sales Service：a Lifetime of Service
  • Warranty：3 Years
  • Product Type：Plastic Sheet
  • Screw：Single-Screw
  • Automation：Automatic
  • Computerized：Computerized

Base Info

  • Model NO.：XH-432
  • Certification：CE, ISO9001:2008
  • Customized：Customized
  • Applicable Materials：PP, PE, PVC, PS, Pet, PVDF etc.
  • Screw Diameters：30mm or Customized
  • Screw Rotating Speed：0-100rpm (Adjustable)
  • Screw L/D Ratio：33:1
  • Temperature Range：Room Temperature - 400ºC
  • Film Thickness：0.02-0.1mm
  • Film Width：250-450 mm (Customized)
  • Die Width：500 mm
  • Transport Package：Wooden Case
  • Trademark：Xihua
  • Origin：China

Description

Specifications of lab cast film machineApplicable materialsPP, PE, PVC, PS, PET, etc.Screw diameters35mm or customized Screw rotating speed0-100rpm (adjustable)Screw L/D ratio33:1 or customizedTemperature rangeRoom temperature - 400ºC Film thickness0.02-0.1mmFilm width250-450 mmDie width500 mmWorking voltage380V/50Hz/3 phases or CustomerizedControl modeSIEMENS PLC Control  PP PE PVC Pet Plastic Polymer Casting Film Making MachinePP PE PVC Pet Plastic Polymer Casting Film Making MachineLab Cast Film Machine Features

1) Adopting international brand variable speed control motor for the extruder to make the plasticization stable and constant;
2) Using brand melt pressure and temperature sensor to ensure high accurage data
3) Cantilever roll structure making it easy to lead the film and be operated;
4) dopting PLC control system and friendly operation interface to easily operate;
5) On-line testing and displaying melt pressure, temperature and other key data;
6) Emergency stops and devices to protect safety of the operator;

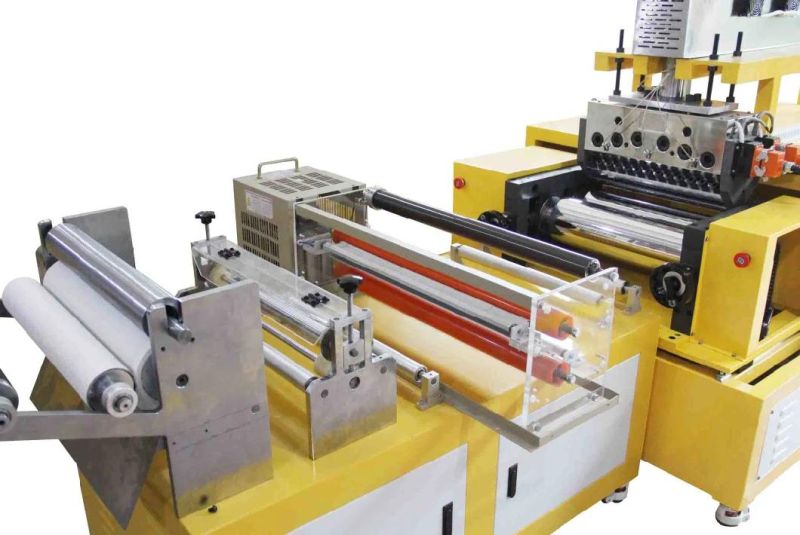

500mm width die and mirror rollers. Can be customized and designed.
 PP PE PVC Pet Plastic Polymer Casting Film Making MachinePP PE PVC Pet Plastic Polymer Casting Film Making Machine

Corona devices can be added as required
Range of film thickness: 0.02-0.1mm
 PP PE PVC Pet Plastic Polymer Casting Film Making MachinePP PE PVC Pet Plastic Polymer Casting Film Making Machine
