China ABA Double Die Film Blowing Machine Blown Film Machine
Ruian Queensense Machine Co., Ltd.- Type：ABA Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：500*2mm
- Screw Diameter：55mm
- Automation：Automatic
- Computerized：Computerized
Base Info
- Model NO.：QS-DH500*2
- Machine Weight：4T
- Certification：CE, QS
- Max.Extrusion Output：100kg,H
- Screw L/D Length：30:1
- Die Size：80
- Winding Speed：5-50m,Min
- Transport Package：Wooden Case and Soft Packing
- Specification：CE
- Trademark：QUEENSENSE
- Origin：Ruian China
- HS Code：8477309000
- Production Capacity：1000PCS,Per Year
Description
Basic Info.
Model NO. QS-DH500*2 Machine Weight 4T Certification CE, QS Max.Extrusion Output 100kg/H Screw L/D Length 30:1 Die Size 80 Winding Speed 5-50m/Min Transport Package Wooden Case and Soft Packing Specification CE Trademark QUEENSENSE Origin Ruian China HS Code 8477309000 Production Capacity 1000PCS/Per YearProduct Description

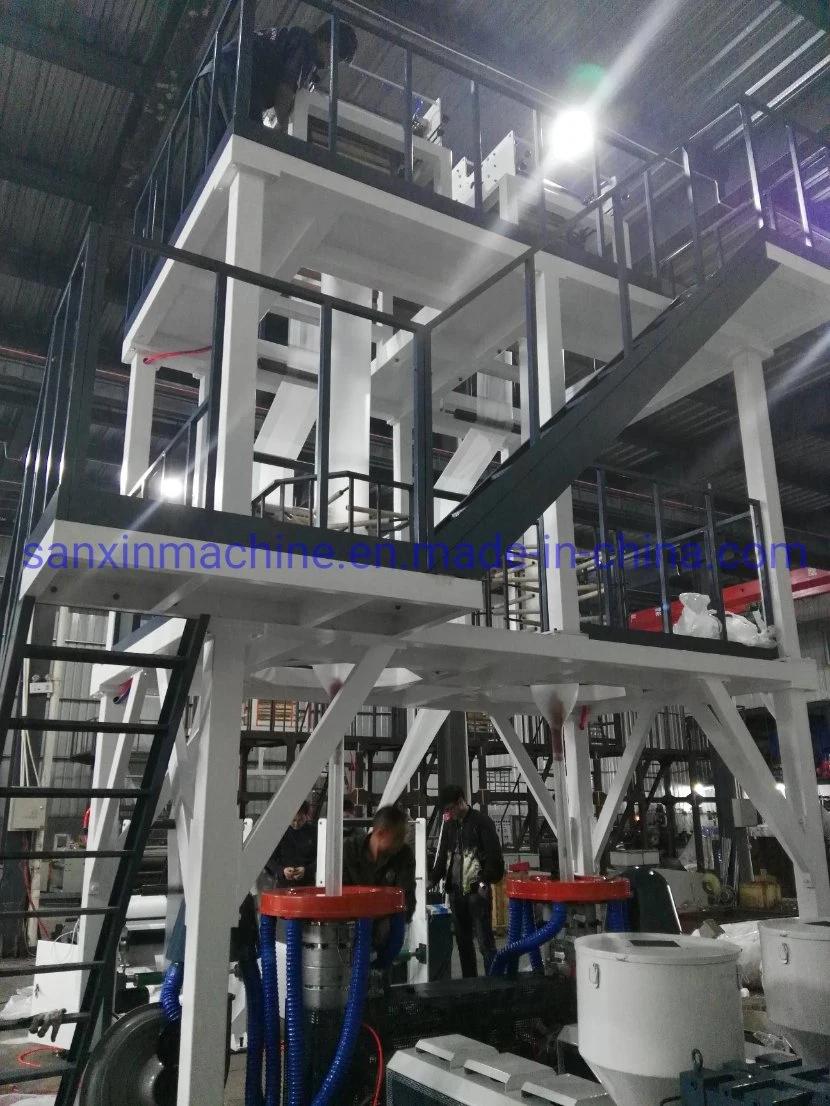

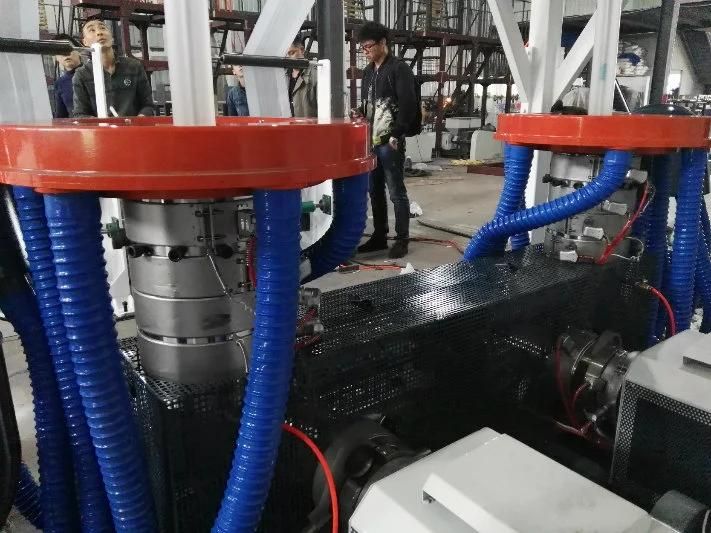

ABA Twin DIe Blowing Machine
| Model | QS-DH500*2 |
| suitable material | HDPE/LDPE/LLDPE/EVA/CACO3 |
| FILM width | 100-500mm |
| film thickness | 0.02-0.1mm |
| max.extrusion output | 100kg/h |
| screw diameter | 55mm*2 |
| main motor | 30kw*2 |
| widing speed | 5-50m/min |
| size | 4.8*2*3.8 |
| weight | 6000kg |
3.high speed net change
4.traction up and down.

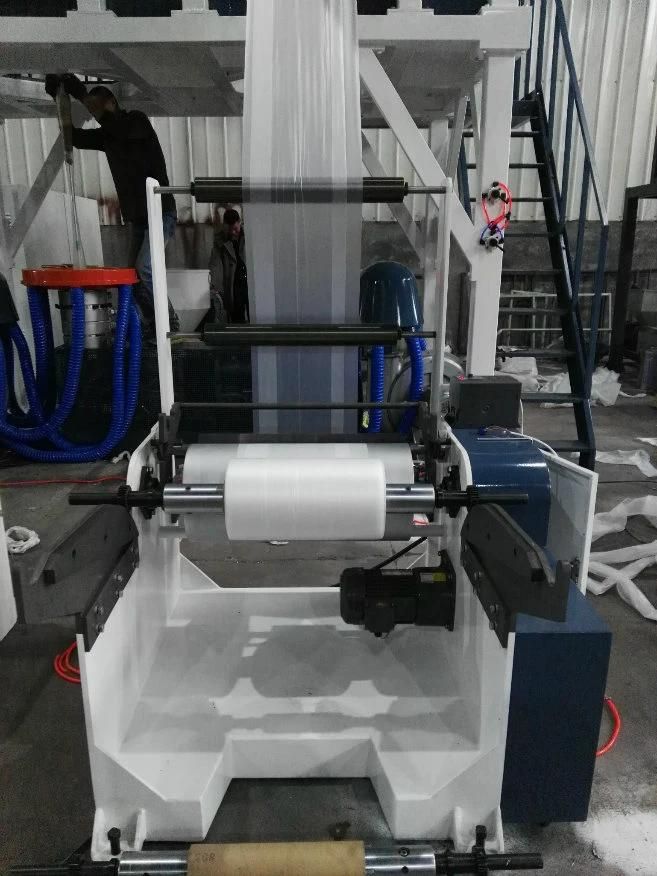

5.Auto rewinder
6.Auto test weight of film7.Air shasft.
Main technical variables:
