• Model NO.：QS-ABA1000
• Automation：Automatic
• Computerized：Computerized
• Machine Weight：4T
• Certification：CE, QS
• Max.Extrusion Output：100kg,H
• Driving Motor：22kw
• Size：5.6*5.8*5m
• Die Size：120mm
• Transport Package：Seaworthy
• Specification：CE, SGS
• Trademark：QUEENSENSE
• Origin：China
• HS Code：84773000
• Production Capacity：1000PCS,Per Year

Basic Info.

Model NO. QS-ABA1000 Automation Automatic Computerized Computerized Machine Weight 4T Certification CE, QS Max.Extrusion Output 100kg/H Driving Motor 22kw Size 5.6*5.8*5m Die Size 120mm Transport Package Seaworthy Specification CE, SGS Trademark QUEENSENSE Origin China HS Code 84773000 Production Capacity 1000PCS/Per Year

Product Description

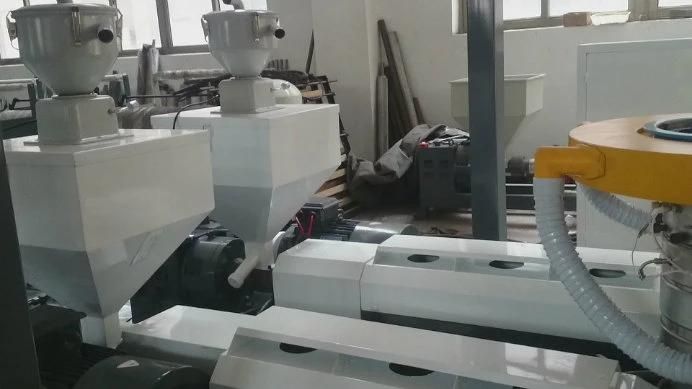

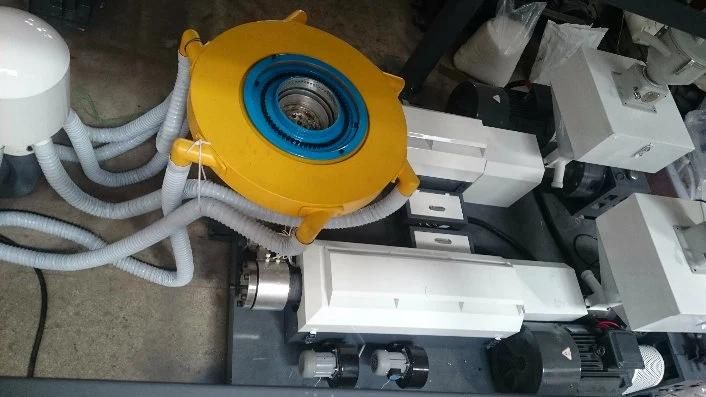

Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

Model	QS-ABA1000
suitable material	HDPE/LDPE/LLDPE/EVA/CACO3
FILM width	400-1000mm
film thickness	0.01-0.15mm
max.extrusion output	100kg/h
screw diameter	55/60mm
main motor	22kw
widing speed	5-50m/min
size	4.8*2*3.8
weight	4000kg

Optional equipment:

1). Auto load
2). Air compressor
3). Special die
4). Die rotary device
5). Bouble sides winder
6). Up and down
