• Model NO.：SJ-55,FM800
• Machine Weight：3500kg
• Certification：CE
• Machine Color：as Customers Requirements
• Warranty：One Year
• Max.Extrusion Output：40-100kg,H
• Temperature Sensor：5 Sets
• Net Changer Device：Manual
• Barrel Heating：Cast-Aluminum Heating Ring
• Electrical Switches：Chint,Schneider
• Gusset：Flannelette Type
• Die Head Diameter：60-120mm
• Transport Package：Plastic Film or Wooden Case
• Specification：4800*2800*4300mm
• Trademark：Elight,Xinye
• Origin：Ruian, Zhejiag Province, China
• HS Code：8477309000
• Production Capacity：25sets,Month

Basic Info.

Model NO. SJ-55/FM800 Machine Weight 3500kg Certification CE Machine Color as Customers Requirements Warranty One Year Max.Extrusion Output 40-100kg/H Temperature Sensor 5 Sets Net Changer Device Manual Barrel Heating Cast-Aluminum Heating Ring Electrical Switches Chint/Schneider Gusset Flannelette Type Die Head Diameter 60-120mm Transport Package Plastic Film or Wooden Case Specification 4800*2800*4300mm Trademark Elight/Xinye Origin Ruian, Zhejiag Province, China HS Code 8477309000 Production Capacity 25sets/Month

Product Description

Manufacturer High Speed Plastic Film Blowing Machine(SJ-55/FM800)

Usage&Charteristics:
High speed LDPE polyethylene plastic film extrusion machine extruder,cylinder and screws are made of high quality alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment and precision processing.The specially desingned screw enhances plasticizing of film,which helps increasing the production capacity.It is applied to blowing the plastic films like low density polyethylene(LDPE),high density polyethylene(HDPE) and linear low density polyethylene(LLDPE),It is widely applied to producing the packing nags for foodstuff,clothing,rubbish and so on.


Main Technical Variables:

Model	SJ-50/FM600	SJ-55/FM800	SJ-60/FM1000
Screw Dimeter	50mm	55mm	60mm
Screw Ratio	L/D30:1	L/D30:1	L/D30:1
Screw Speed	10-150r/min	10-150r/min	10-150r/min
Power Of Main Motor	22kw	30kw	37kw
Max.Extrusion Output	30-70kg/h	40-100kg/h	50-120kg/h
Max.Folding Width Of Film	600mm	800mm	1000mm
Thickness of Film	0.008-0.10mm	0.008-0.10mm	0.008-0.10mm
Lift Range of Auxiliary Machine	800mm	800mm	800mm
Total Power	32kw	44kw	49kw
Weight Of Machine	3000kg	3500kg	4000kg
Overall Dimension(L×W×H)	4.6×2.6×4.0m	4.8×2.8×4.3m	5.0×3.0×4.8m

Note:These are our standard machine, more wide also canbe customized.
Every smart business as you would understand, the machine with different specification, the quotation would be wide different.

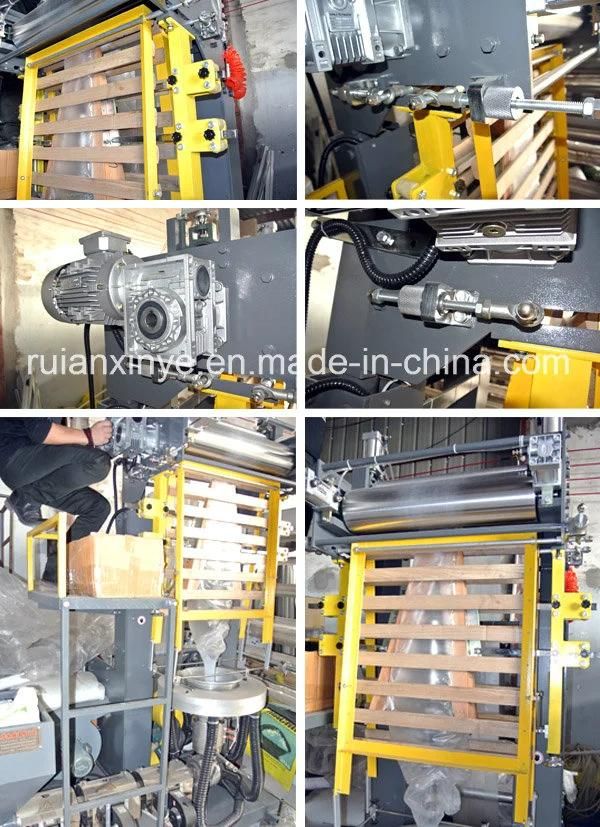

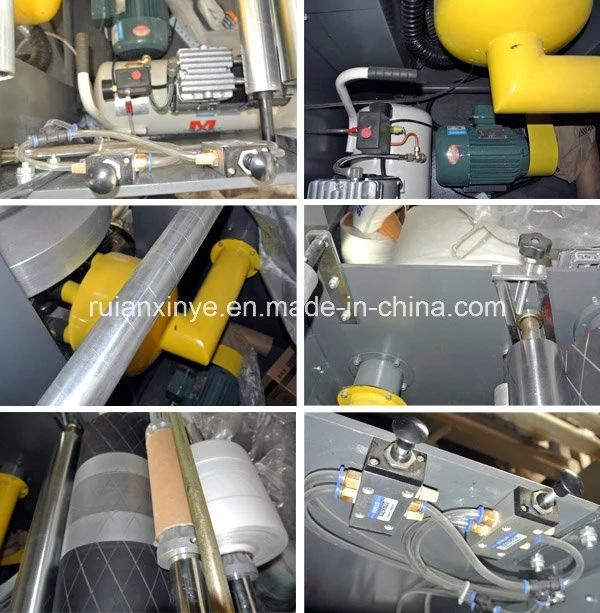

Detailed Images:






End Products:



Products Advantage:
1.Top quality
2.Large output
3.Delivery timely
4.Competitive price
5.Satisfying service
6.Old and experienced factory



Payment:
30%T/T payment of total value in the contract should be paid before production. And 70% T/T balance of total value should be paid before shipment when goods are ready.



Delivery:
20-30 working days after receiving the deposit by T/T.
If the buyer don't load the machines in six month after paying the deposit and the machines are ready at same time ,the seller will cancel the order and the contract would be invalid.


Company Information:

Ruian Xinye Packaging Machine Co.,Ltd. with a long history is located in Ruian economically developed city on the seashore of the East China sea of Zhejiang. It is specialized in producing Series of plastics-packaging equipment.We are engaged in producing bag-making  machine,Printing Machine,Film Blowing Machine, etc.
1) Bag-making Machine:Multifunction bag-making Machine; Arc-shaped bag-making Machine;Autosoft  handle  bag-making  Machine ; high  speed  heat  sealing  and  slitting  bag-making  Machine;Microcomputer control bag-making Machine;Computerized vest bag-making  Machine; Bubble film bag-making Machine ;High speed continous-rolled vest bag-making Machine;
2) Printing Machine: Flexography Press; Rotogravure Printing Press;
3) Film Blowing Machine: HDPE-LDPE  Dual-purpose  Film Blowing  Machine,High  Speed  Film Blowing Machine Unit;
4) Others:Auto Slitting and Rewinding Machine, Hem Folding  Machine, Material Cutting  and Punch Machine.Since its  establishment,  with the purpose of " Gain the customer's confidence  base on good quality."and "Improve continuously,  meet customer's needs",we have won the support and trust from most national and International customers,from the Southeast Asia,the Middle East, Russia,America, Europe and Africa, etc.


Certificate&Exhibitions:



Our Services:
Installation services:
    Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
After sales services:
   We offer the Preventative Maintenance and After Sales Service. For we strongly feels that importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.


Packing&Delivery:



FAQ:
1.Q: Are you a factory or trading company?
    A: We are established in 1995, an actual factory and manufacturer in the line of printing and packing machine for 20 years.
2.Q: Where is your factory loaded? How can I visit there?
   A: Our factory located in Rui'an city, Zhejiang Province, China, about one hour by air from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us.
3.Q: Which industries are widely used in of your machine?
   A: Bag making machine, film blowing machine, printing machine.
4.Q: How about the payment term?
   A: For new customer, our payment term is 30% T/T in advance before production, the balance 70% should be paid before delivery.
5.Q: What about your main market?
   A: Our products be sold well in 30 provinces in China and have good reputation in China, also we pay attention to developing the oversea market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
6.Q: How does your factory do regarding quality control?
   A: Quality is the most important principle. GREAT WALL always attach great impartance to quality controlling from the every beginning to the every end. Our factory has passed SGS and CE certifications.
Welcome to Inquiry!
