• Model NO.：SJZ65,132 SJZ80,156 SJZ92,188
• Customized：Customized
• Condition：New
• After-sales Service：Yes
• Main Motor：Siemens Beide
• Inverter：ABB
• Main Electrics：Siemens , Schneider
• Temperature Control：Omron
• Voltage：According to Requirement
• Pipe Diameter：20-800mm
• Output：100-500kg,H
• Machine Color：Customized
• Delivery Time：45-55 Working Days
• Production Direction：From Right to Left
• Transport Package：Shrinking Film, Wooden Case
• Specification：20-800mm
• Trademark：Sunrise Machinery
• Origin：China
• HS Code：84778000
• Production Capacity：100-500kg,H

Basic Info.

Model NO. SJZ65/132 SJZ80/156 SJZ92/188 Customized Customized Condition New After-sales Service Yes Main Motor Siemens Beide Inverter ABB Main Electrics Siemens / Schneider Temperature Control Omron Voltage According to Requirement Pipe Diameter 20-800mm Output 100-500kg/H Machine Color Customized Delivery Time 45-55 Working Days Production Direction From Right to Left Transport Package Shrinking Film, Wooden Case Specification 20-800mm Trademark Sunrise Machinery Origin China HS Code 84778000 Production Capacity 100-500kg/H

Product Description

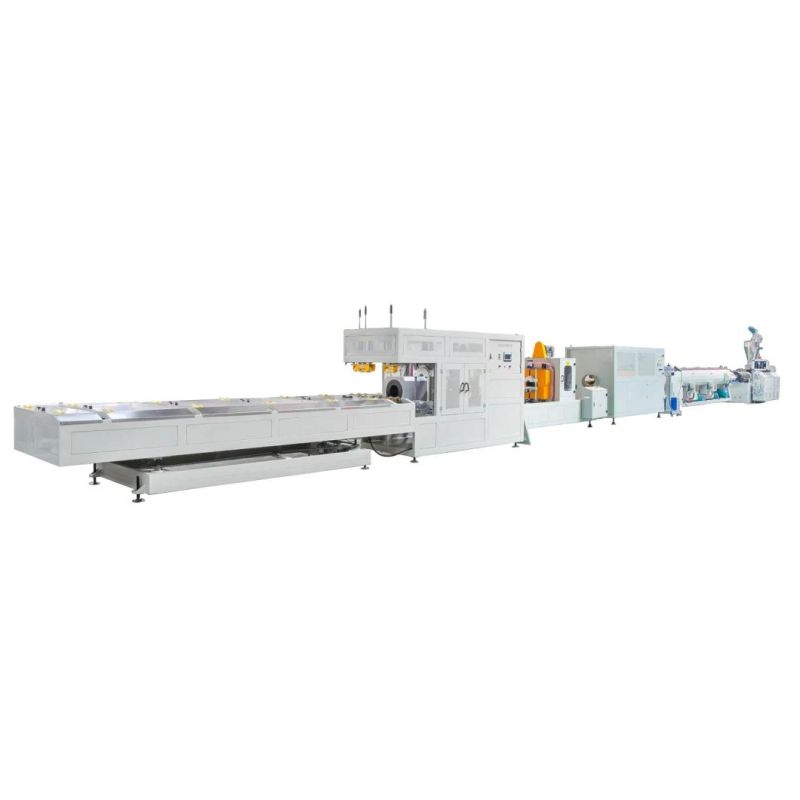

PVC & UPVC Pipe Production Line is used to produce PVC & UPVC Pipe with different diameter and thickness which is widely used in agricultural water supply, drainage pipe, electric conduit pipe and so on.

Feature of Machines:

1- PLC control, high degree of automation2- Adopting special screw and barrel, good effect
3- Adopting compound spiral engine head, effectively eliminate memory function of the material
4- Easy operate and need less worker
5- Convenient for maintaining

Produce process:

PVC powder + additive →mixing →spring feeding →twin screw extruder →mould and calibrator → vacuum forming machine →haul off machine →cutting machine →stacker

Technical Parameters:

Diameter(mm)	16-40dual	20-63dual	20-63	75-200	160-315	315-630
Extruder mode	SJZ51/105	SJZ65/132	SJZ51/105	SJZ65/132	SJZ80/156	SJZ92/188
Extruder power (kw)	18.5AC	37AC	18.5AC	37AC	55AC	110DC
Max lineal speed (m/min)	0.5-10	0.5-15	0.5-10	0.5-8	0.5-6	0.5-4
Max capacity (kg/h)	120	250	80-120	180-250	280-350	500-600

Main Composition of PVC Pipe Making Machine:


No.	Item	Quantity

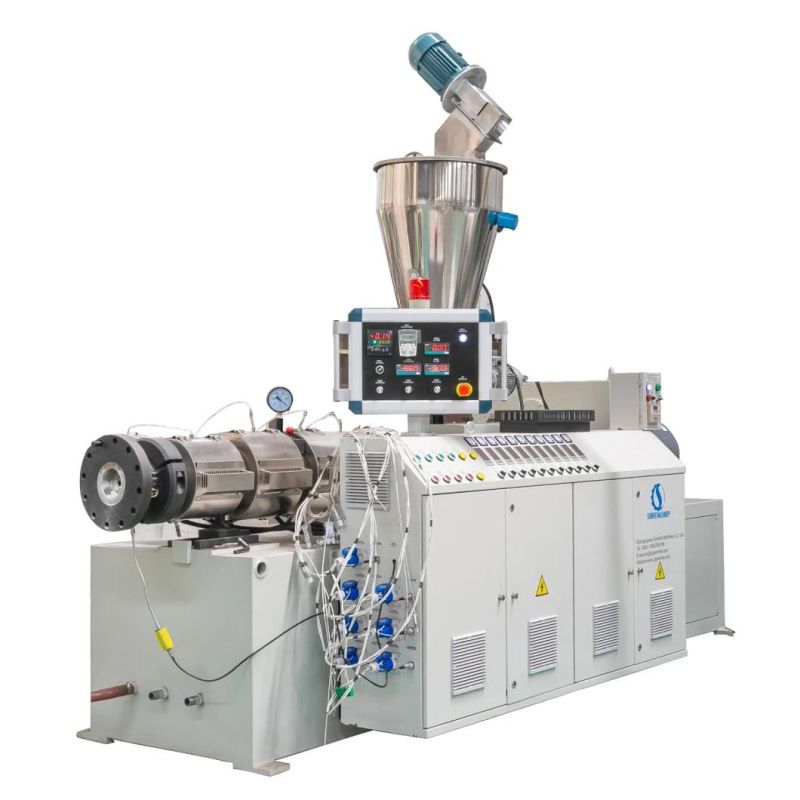

1	SJSZ series conical twin screw extruder (Equipped with automatic feeding unit)	one set

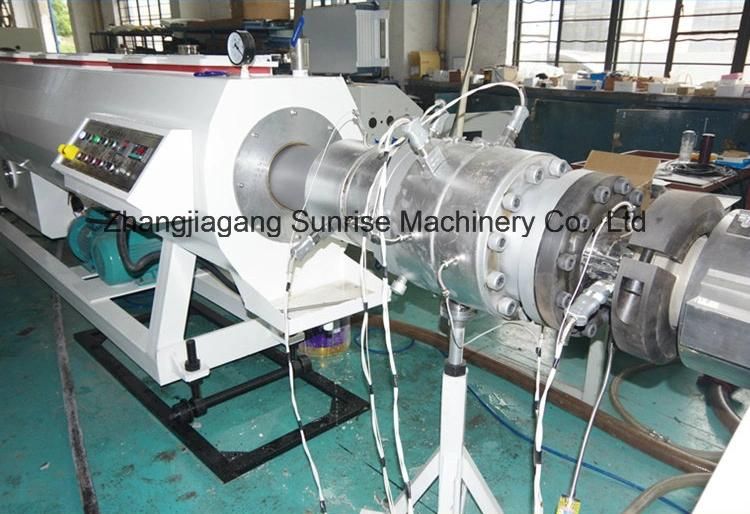

2	Die and Mold	One set

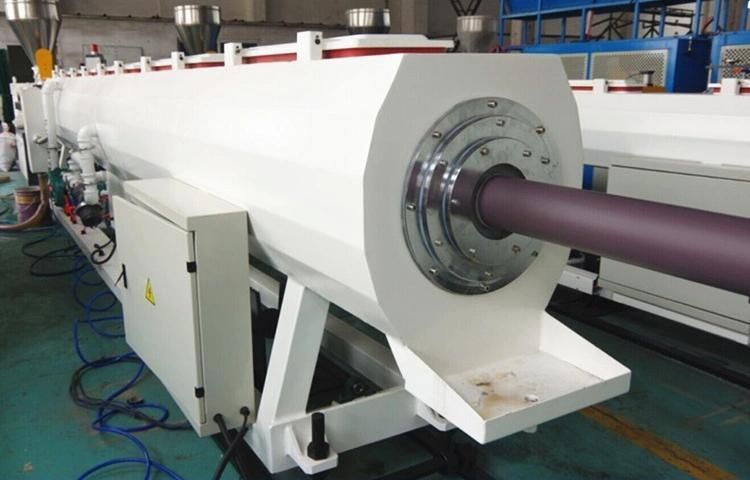

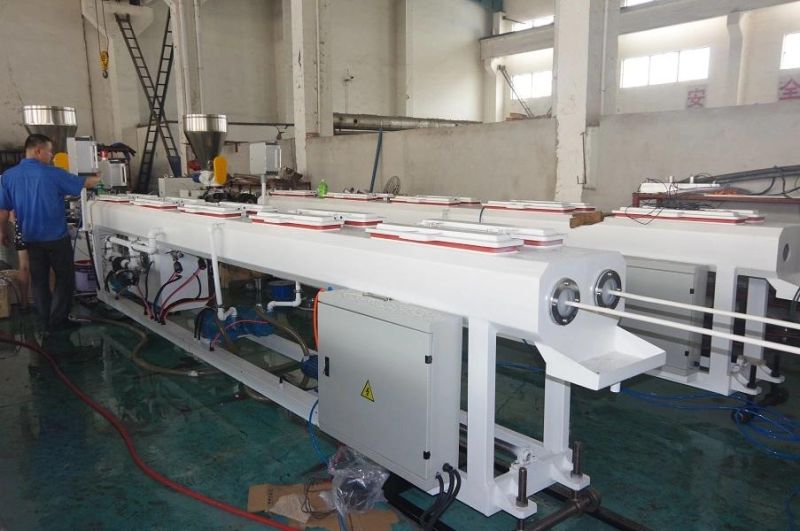

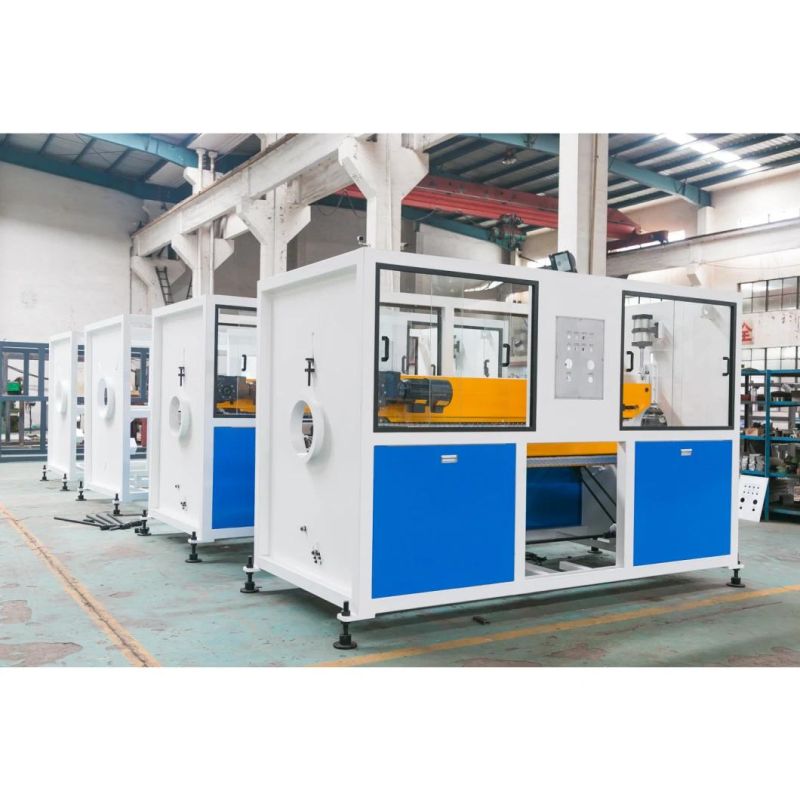

3	Vacuum calibration water tank	One set

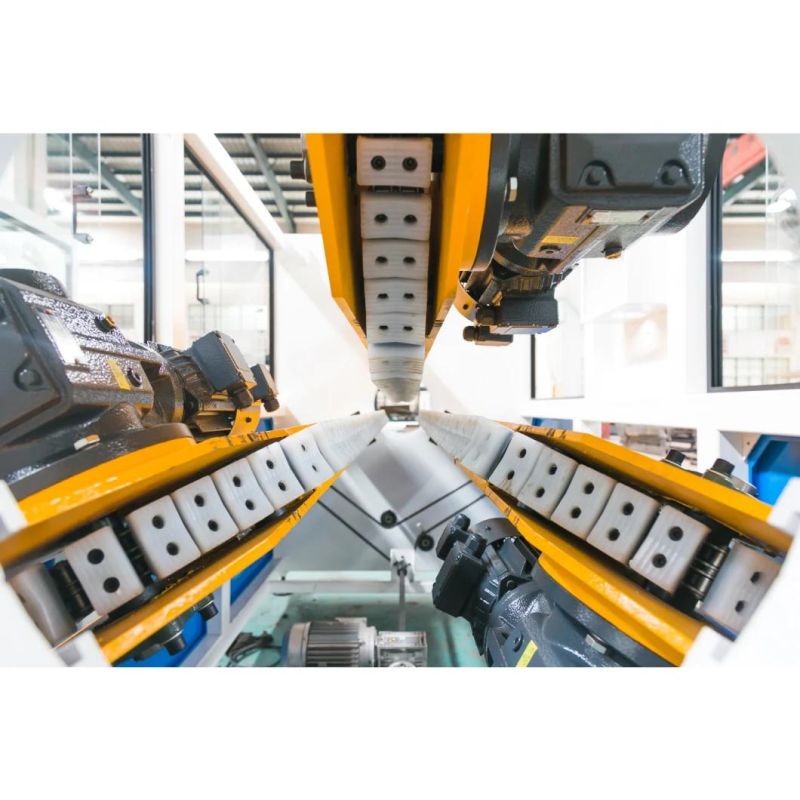

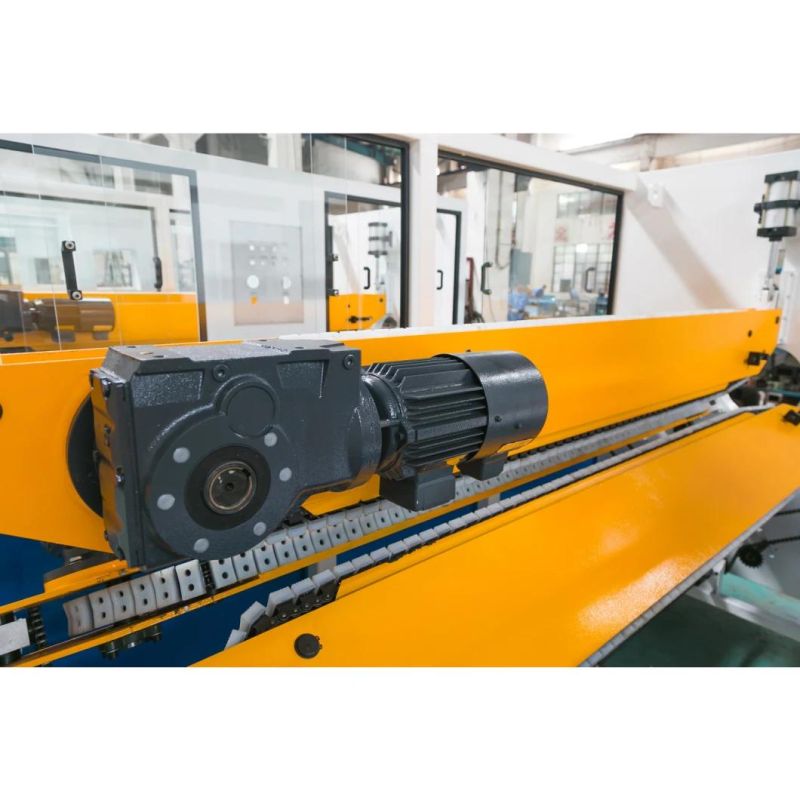

4	Haul-off unit	One set

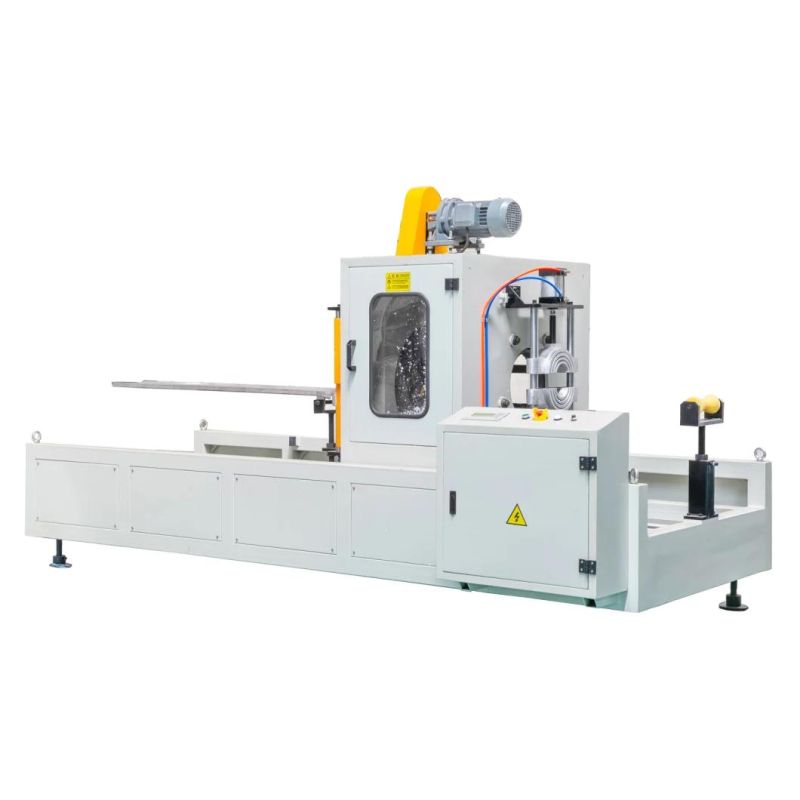

5	Cutter Unit	One set
6	Stacker	One set
	Optional auxiliary machines in production for your choice
A	Printer	one set
B	Mixer	one set
C	Crusher	one set
D	Milling machine	one set

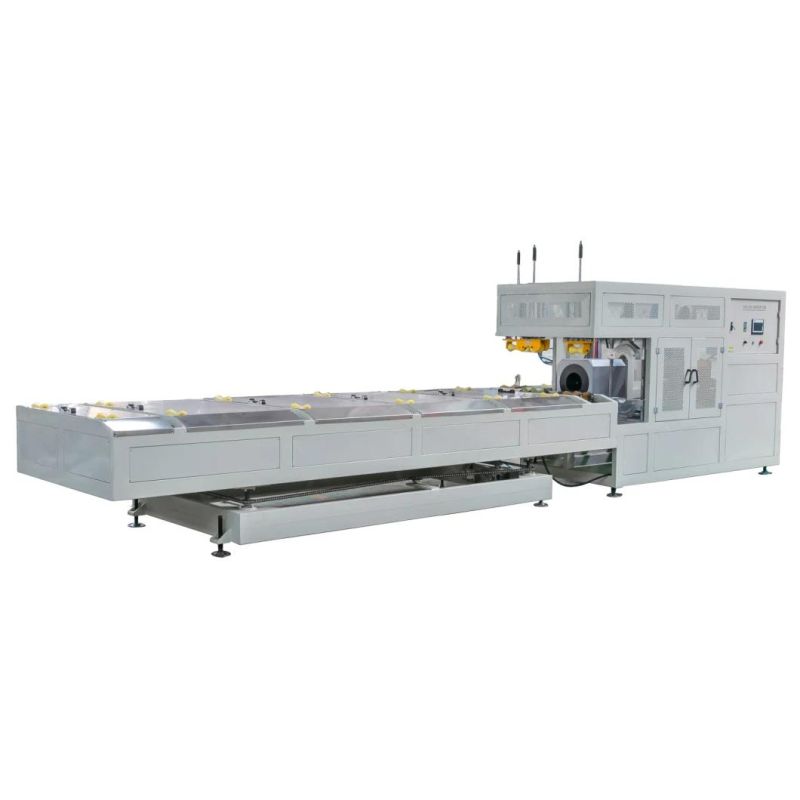

5	Belling machine	one set

Services:

1. We could send engineers to the buyer's factory for installation instruction, commissioning and training service at buyer's cost.
2. Our machine has one year guarantee since the installation in buyer's factory. During the guarantee time, if any parts (except the easy damaging parts) are damaged under normal operation, we will offer free spare parts. After the guarantee time, we will offer the spare parts with cost price.
3. If the buyer has any problem during the operation, we will offer technical solutions.

Pipe Range for your reference:

Pipe Range	20-63mm Double Pipe	20-63mm Single	20-110mm	75-250	160-400	400-630mm
Extruder	SJZ65/132	SJZ51/105	SJZ65/132	SJZ65/132 SJZ80/156	SJZ80/156	SJZ92/188
Main Motor	37KW	18.5KW	37KW	37KW / 55KW	55KW	110KW
Main Motor Brand	Siemens Beide	Siemens Beide	Siemens Beide	Siemens Beide	Siemens Beide	Siemens Beide
Inverter	ABB	ABB	ABB	ABB	ABB	ABB
