• Model NO.：SRL-z500,1000
• Condition：New
• Mixer Blade Material：304 Stainless Steel
• Inverter Brand：ABB or Invt
• Temperature Controller：Rkc or Omron
• Usage：Mixing PVC Powder with Additives
• Transport Package：Wood Box
• Specification：Depends on model
• Trademark：Sunrise
• Origin：China
• HS Code：8477800000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. SRL-z500/1000 Condition New Mixer Blade Material 304 Stainless Steel Inverter Brand ABB or Invt Temperature Controller Rkc or Omron Usage Mixing PVC Powder with Additives Transport Package Wood Box Specification Depends on model Trademark Sunrise Origin China HS Code 8477800000 Production Capacity 20 Sets/Month

Product Description

PVC Hot and Cool Mixer Machine
PVC mixer machine is an necessary auxillary machine for making plastic pipes, plastic profiles, plastic board, WPC extrusion line, cable production line, etc.its function is to mix the raw material with different kinds of additives. usually, for pvc powder material, you need to use high speed hot mixer and low speed cool mixer, which means mixer unit. for making PP PE masterbatch, or cable, one high speed mixer is ok. now we could offer high speed mixer SRL series from 10L-2000L, one batch's capacity ranges from 3kg-600kg.

PVC Mixer Machine Model List:

Model	SRL-Z100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000	SRL-Z800/2500
Effective volume(L)	75/160	150/320	200/360	375/650	600/1500
Motor power(KW)	14/22-7.5	30/42-11	40/55-11	55/75-18.5	83/110-30
Mixing time (Minutes)	8-10	8-10	8-10	8-10	10-12
Overall size (MM)	1950/1600/1800	4580/2240/2470	4800/2640/2480	5600/3000/3100	5170/3200/4480
Gross weight (KG)	2200	3400	3600	6500	9800

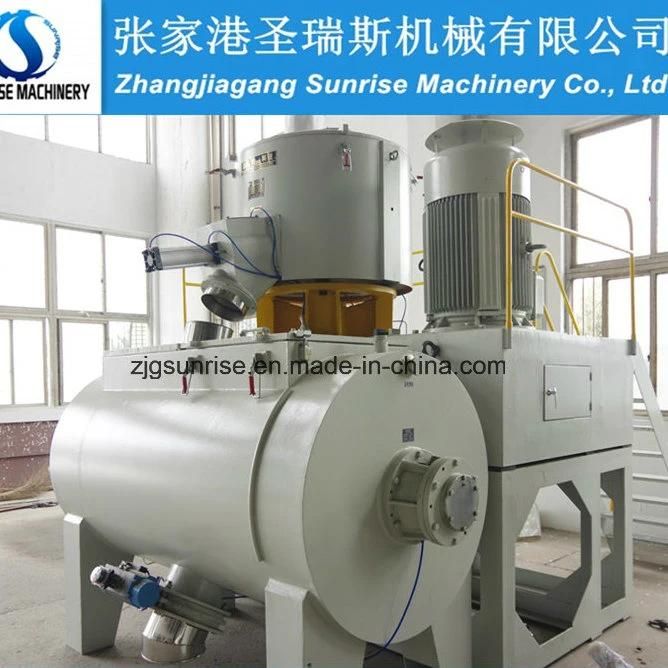

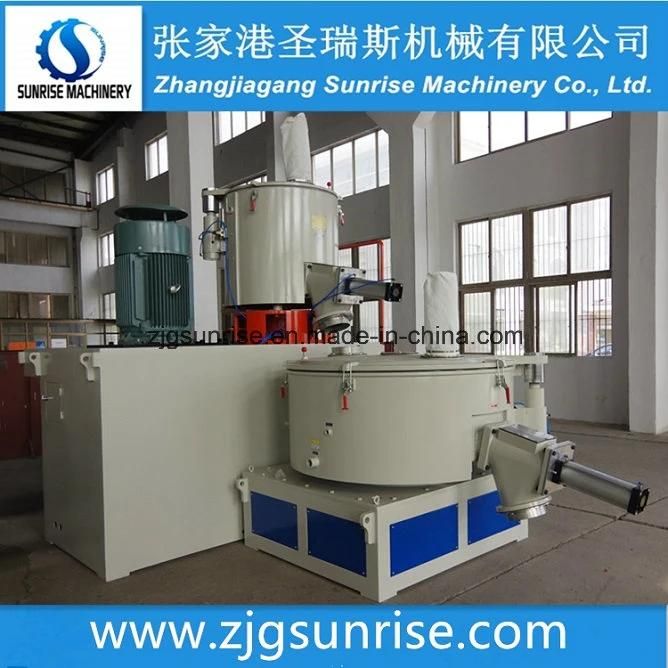

Mixer pictures for reference:


Main Features:

1. We can supply not only hot mixer machine, but also hot&cool mixer unit, and auto mixing weighing conveying system.
2. The cool mixer adopts horizontal structure with the characteristics of large cooling area, fast speed, more homogenized.
3. The mixer cover is double sealed and opened in pneumatic way.
4 The electric control system adopts RKC, Siemens, ABB, Omron and other famous instruments and control components to ensure quality and  realize automatic control.
5. Equipped with dedusting device. (on customer's option)
6. Both the blades and the belt wheel have been specially treated through the balancing machine of static and dynamic.

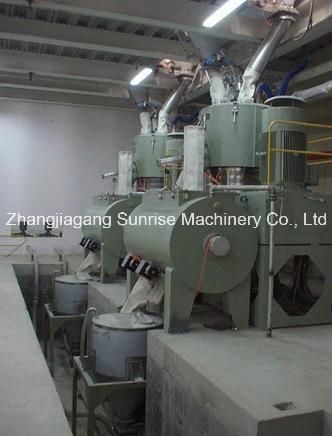

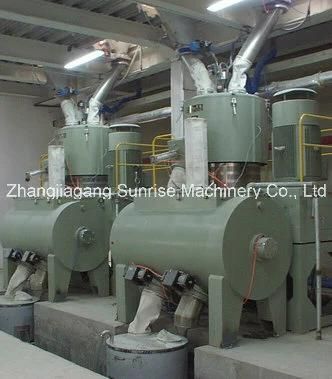

Below is our mixer and mixing system's actual usage situation at customer's factory:


Related machine recommend:

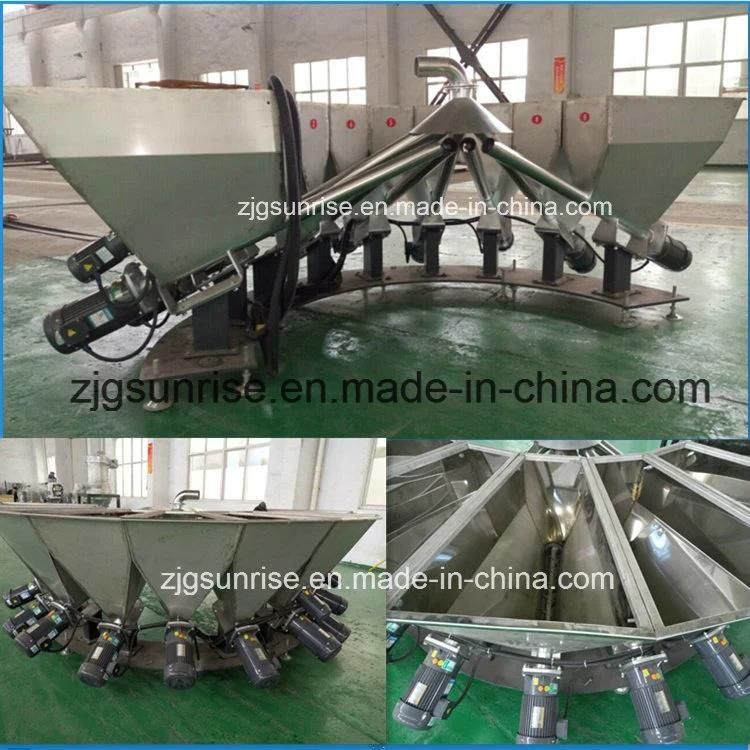

The Small Additives Auto Weighing System
We developed this auto weighing system especially for PVC pipe and profile production to instead of manual weighing. It could auto weigh the additives in PVC pipe and profile formula besides the PVC and CACO3. The operator could only manually weigh PVC and CACO3, for other powder additives, this auto weighing system could weigh the quantity for one batch use automatically. This system could avoid the mistake of manual weighing and also keep the workshop clean.

This system could auto weighing 6-9 kinds of powder or granules additives.

About our company:
Zhangjiagang Sunrise Machinery Co., Ltd.  is specialized in manufacturing kinds of plastic machines.  Sunrise Machinery is located in Zhangjiagang City, Jiangsu Province, 150km away from Shanghai.

Our main products as below:
1. PVC / PE / PPR Pipe Production Line
2. PVC window & Door Profile / Panel Production Line
3. Plastic Sheet & Wide Board Production Line
4. Plastic Shredder, Crusher & Pulverizer
5. Waste Plastic Recycling Machines
6. Wood Plastic Profile Production Line
7. High Speed Mixer for PVC

We have more than 10 years experince in this field. With CE standard and rich experince, Sunrise Machinery will be your reliable supplier for plastic machines.  We warmly welcome friends from all over the world to visit our factory.
