Hydraulic Driven Foam Equipment Waterproofing Polyurethane Foam Spray Foam Machine
Shandong China Machinery Co., Ltd.- After-sales Service：24 Months
- Warranty：24 Months
- Type：Polyurethane Foam Machine
- Raw Material：Polyurethane
- Principle：High-Pressure Air Type
- Automation：Automatic
Base Info
- Model NO.：CNMC-300
- Computerized：Computerized
- Certification：CE, ISO9001:2008
- Total Power：15000W
- Heater Power：6000W*2
- Maximum Output：14 Kg , Min (22 Lb , Min)
- Working Pressure：20 MPa (200 Bar)
- Heated Hose：49.2 FT (15 M)
- Voltage：230V 1-pH , 400V 3-pH
- Driven Mode：Hydraulic
- Heating Hose Power：1000 W,15 Meters
- Max. Hose Support：90 Meter
- Data Ratio of Raw Materials：1: 1 (Fixed)
- Transport Package：Wooden Case
- Specification：7.5 kw, 17 Mpa
- Trademark：CNMC
- Origin：Shandong, China
- HS Code：8477800000
- Production Capacity：300 Set,Month
Description
Basic Info.
Model NO. CNMC-300 Computerized Computerized Certification CE, ISO9001:2008 Total Power 15000W Heater Power 6000W*2 Maximum Output 14 Kg / Min (22 Lb / Min) Working Pressure 20 MPa (200 Bar) Heated Hose 49.2 FT (15 M) Voltage 230V 1-pH / 400V 3-pH Driven Mode Hydraulic Heating Hose Power 1000 W/15 Meters Max. Hose Support 90 Meter Data Ratio of Raw Materials 1: 1 (Fixed) Transport Package Wooden Case Specification 7.5 kw, 17 Mpa Trademark CNMC Origin Shandong, China HS Code 8477800000 Production Capacity 300 Set/MonthProduct Description

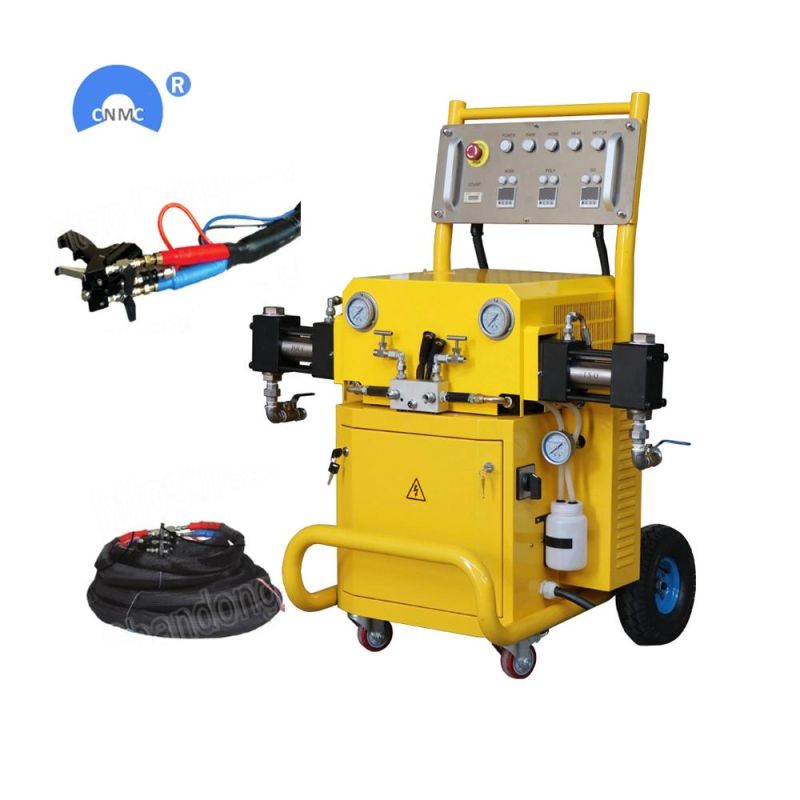

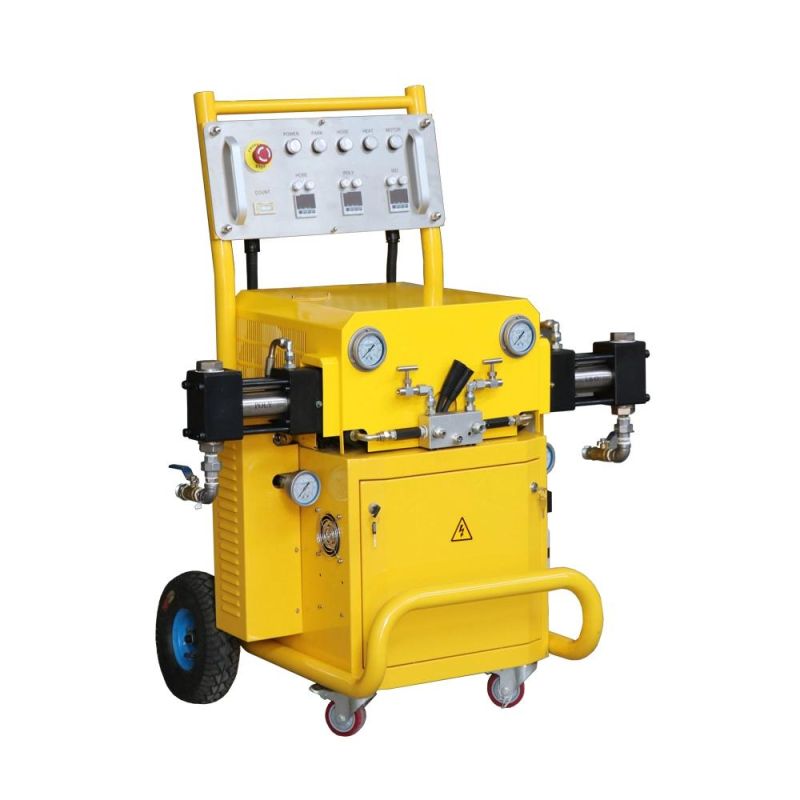

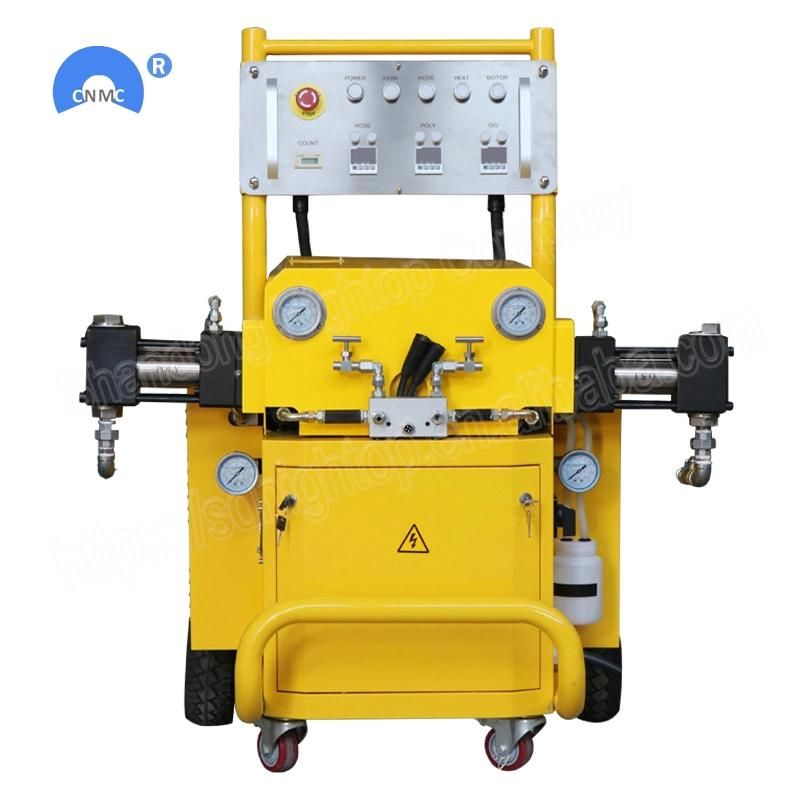

Pneumatic polyurethane foam spray machine/pu foam spray machine/polyurethane foam machineThe new CNMC-300 air driven proportioning unit is of an advanced and compact design.It is specially amed at the applications of polyurethane foamin place.Its particular configuration facilities easy access to all its components,simiplifies the control functions ad signficantly reduces the maintenance work.
- Hydraulic driven mode
- 20Mpa working pressure CNMC-300 Polyurethane spray foam machine make the polyurethane fogging well,more shapely.
- Easy to move
| Project | CNMC-300 project polyurethane spraying machine | CNMC-E2 |
| Voltage | 230V 1-ph / 400V 3-ph/230V 3-ph | 230V 1-ph / 400V 3-ph/230V 3-ph |
| Driven mode | Hydraulic | Pneumatic |
| Maximum output | 24 kg / min | 12kg/min |
| Working pressure | 20 MPa (200 bar) | 17Mpa |
| Heater power | 6kw each side | 3kw each side |
| Heated hose | 49.2 ft (15 m) | 49.2 ft (15 m) |
| Data ratio of raw materials | 1: 1 (fixed) | 1: 1 (fixed) |
| Raw material viscosity range | 200-1000CPS (at working temperature) | 200-1000CPS (at working temperature) |
| Maximum Fluid Temperature | 88 ° C (190 ° F) | 88 ° C (190 ° F) |
| Heating hose power | 1000W / 15m | 1000W / 15m |
| Total power | 15KW | 7.5kw |
| Max. Hose support | 120 meters | 90 meter |
| Machine size | 870mm * 700mm * 1150mm | 800mm*700mm*1150mm |
| Proportion Fixed Mainframe | 1 set | 1 set |
| Self-cleaning spray gun | 1 set | 1set |
| Gross weight | 100KG | 150 kg |
| Feed pump | 2 sets | 2 sets |

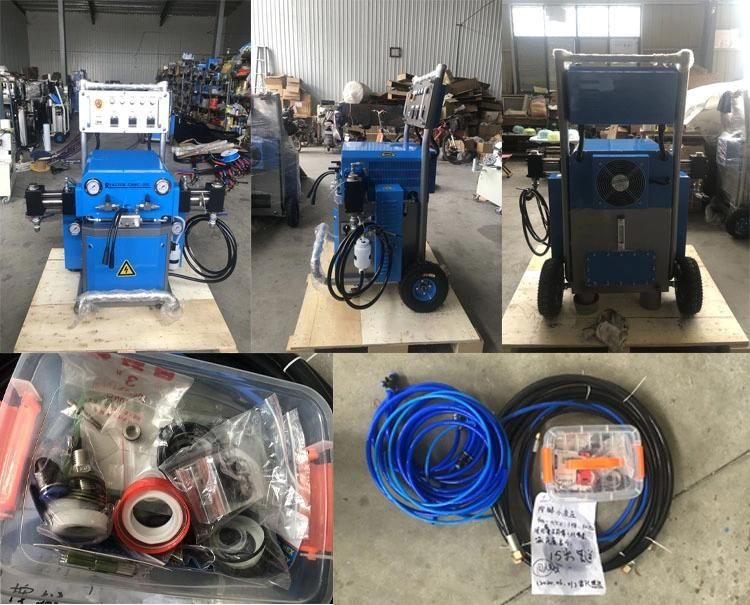

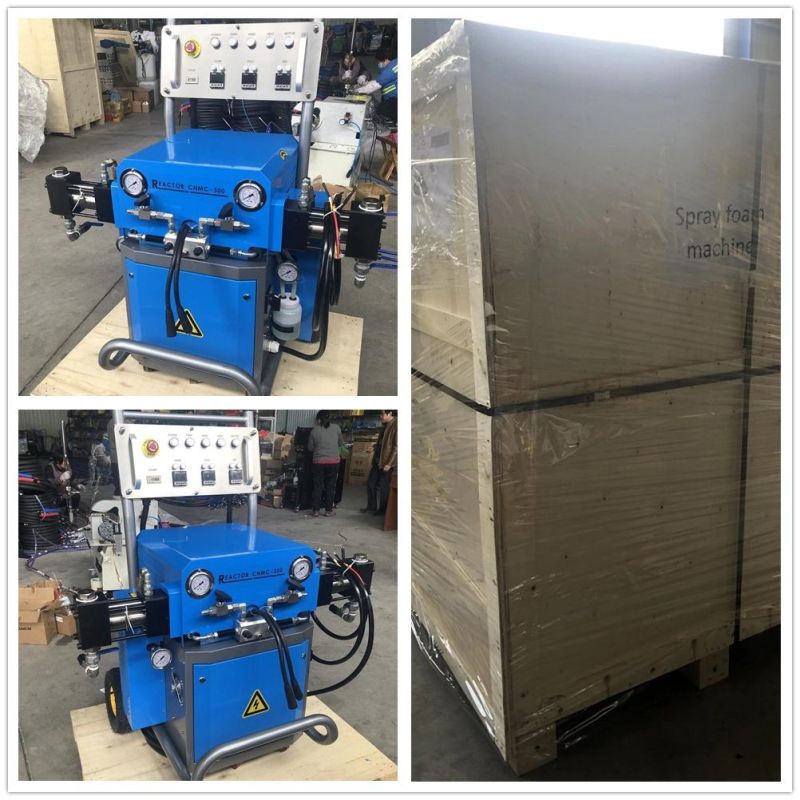

Wooden case
Packing size :1070*860*1640mm
