• Model NO.：SJSZ
• Condition：New
• Material：Stainless Steel
• Machine Name：PVC Double Pipe Extrusion Line
• Diameter Range：16-63mm
• Extruder Power：22kw
• Inverter：ABB
• Control System：PLC Control System
• Operator：2-3person ,Shift
• Capacity：80-150kg,Hr
• Dimension：25* 2.5* 3 M
• Machine Color：as Request
• Transport Package：as Export Standard for Plastics Machine
• Specification：ISO9000 CE
• Trademark：suke
• Origin：Qingdao, China
• HS Code：84775900
• Production Capacity：30sets,Year

Basic Info.

Model NO. SJSZ Condition New Material Stainless Steel Machine Name PVC Double Pipe Extrusion Line Diameter Range 16-63mm Extruder Power 22kw Inverter ABB Control System PLC Control System Operator 2-3person /Shift Capacity 80-150kg/Hr Dimension 25* 2.5* 3 M Machine Color as Request Transport Package as Export Standard for Plastics Machine Specification ISO9000 CE Trademark suke Origin Qingdao, China HS Code 84775900 Production Capacity 30sets/Year

Product Description

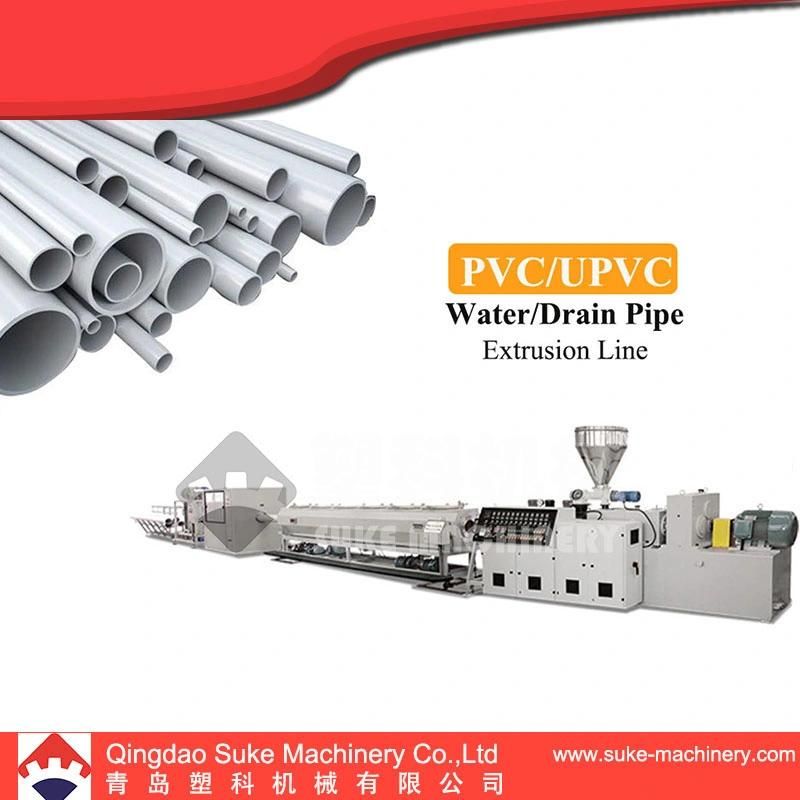

PVC Pipe Machine


Machine's introduction:
This line is used to produce pvc pipe by twin screw extruder.
The raw material is pvc powder
The type of extruder depends on the diameter range of pipe.
This kind of pvc pipe could be used as agricultrue, constructure water supply water pipe and drain pipe.

Equipment List:

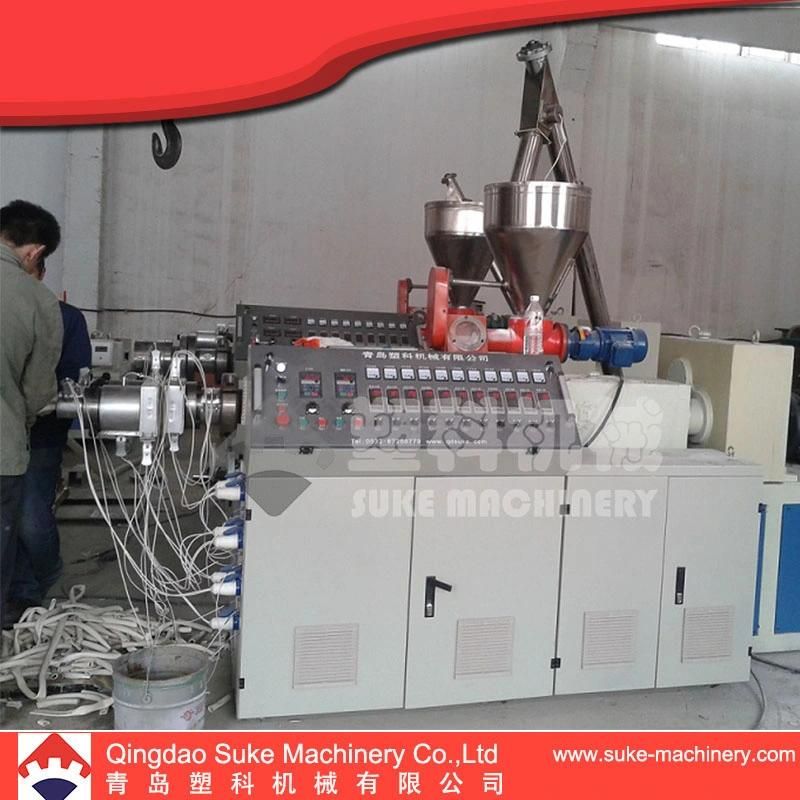

1. Double Screw Extruder

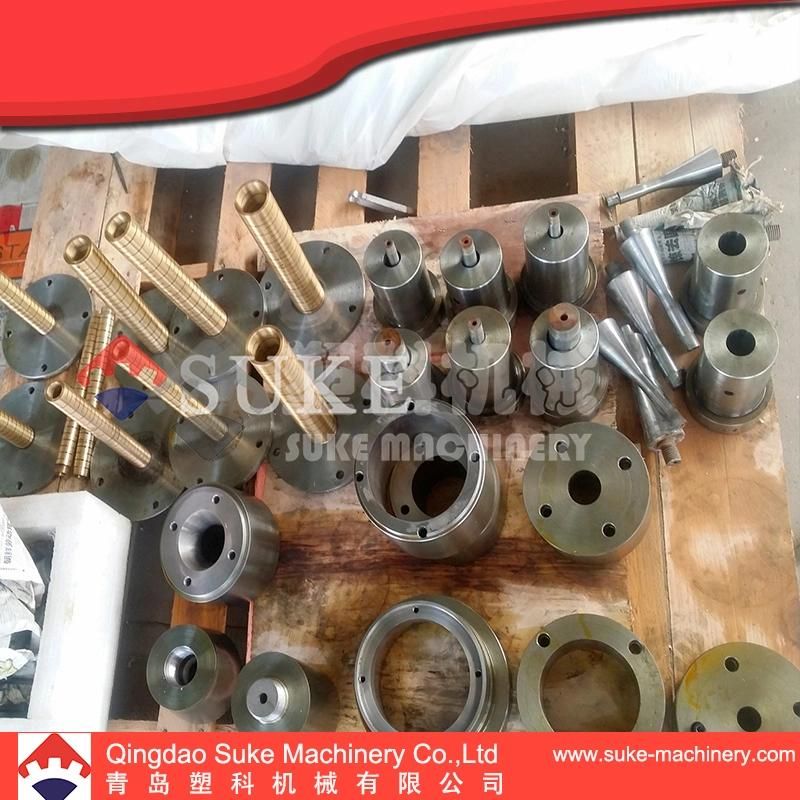

2. Mould

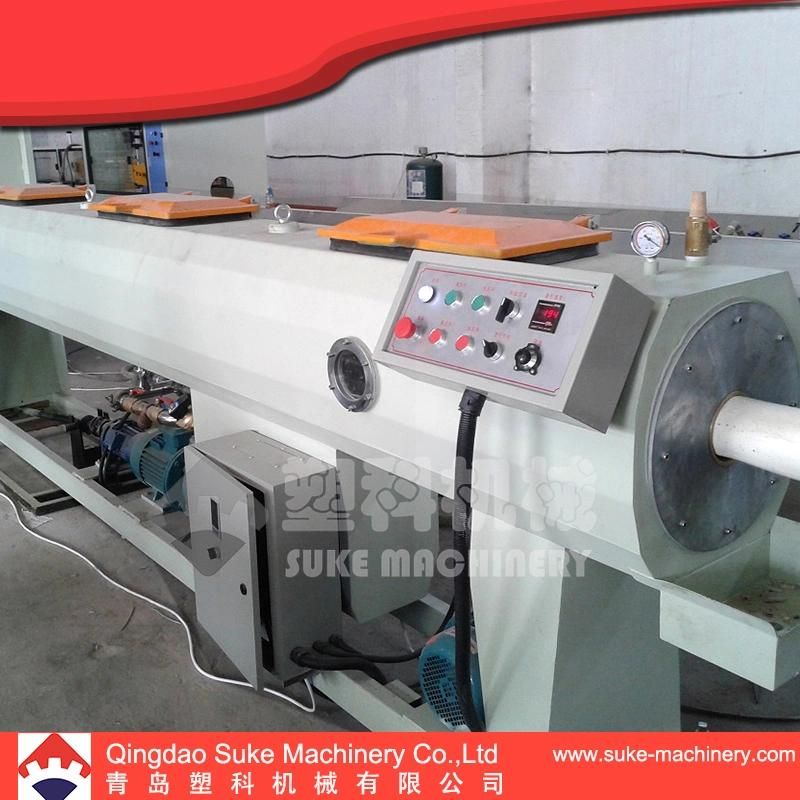

3. Vacumm Shapping and Cooling Tank

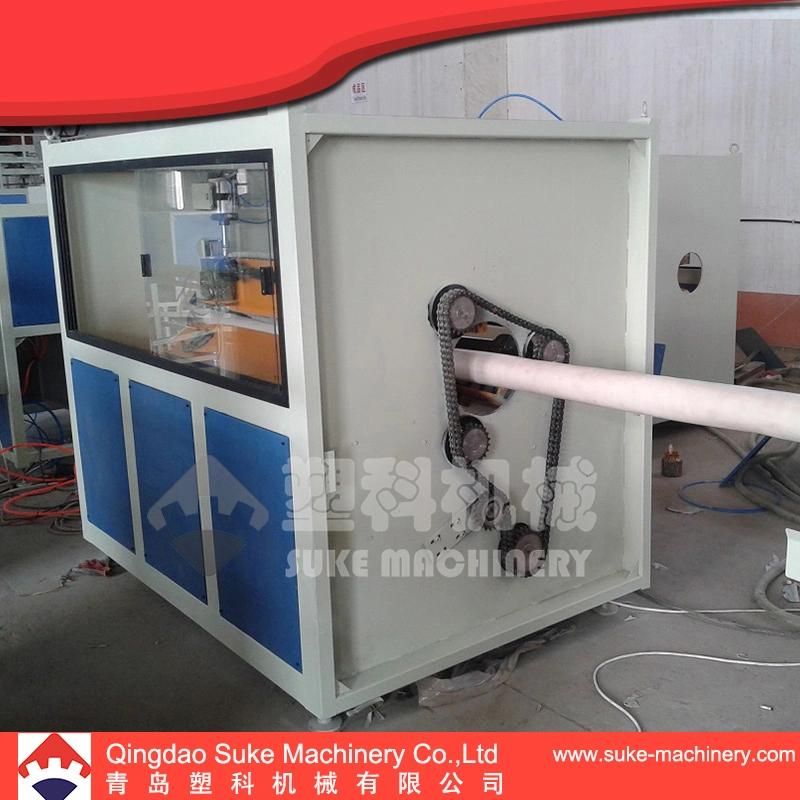

4. Haul-off Machine
5. Cutting Machine
6. Stacker

Other auxiliary machine, such as mixer, crusher, will be provided according to clien'ts requirement.

If you are interest in this kind of machine, welcome to contact with us. We will provide you suitable configuaration of machine with competitive price for your reference.


Final Product:

Main  extruder	SJSZ-51/105	SJSZ-65/132	SJSZ-80/156	SJSZ-92/188
Main  motor  power(KW)	22	37	55	110
Pipe  diameter(mm)	16-  63mm	75-160mm	200-400	400-  630
Hauling  speed(m/min)	0.8-10	0.5-5	0.3-4	0.2-3
Max. Capacity(kg/h)	120	260	400	600
Total  power(KW)	89	95	135	255
