China Top Quality Color Masterbatch Machine (CE/ISO9001)Qingdao Create Trust Industry Co., Ltd.
- Raw Material：PE
- Electromagnetic Heater：Electromagnetic Heater
- Model NO.：CX513
- Certification：CE, ISO9001:2008, QS, UL, GMP
- Main Formula：Calcium Carnonate,PE.Llpe LDPE.,PP
- Products：PE Granules
- Control System：Center Control by PLC System
- Capacity：From 500kg,H to 1500kg,H
- Design of Each Machine：PE with Calcium Mixing,Cutting,Cooling
- Transport Package：Woodend Box
- HS Code：847780000
- Production Capacity：100 Sets,Month
Basic Info.Model NO. CX513 Customized Customized Certification CE, ISO9001:2008, QS, UL, GMP Condition New Main Formula Calcium Carnonate,PE.Llpe LDPE.,PP Products PE Granules Control System Center Control by PLC System Capacity From 500kg/H to 1500kg/H Design of Each Machine PE with Calcium Mixing,Cutting,Cooling Transport Package Woodend Box Specification CE/ISO9001 Trademark CX Origin China HS Code 847780000 Production Capacity 100 Sets/Month
Product DescriptionName: PE granule machine,PE pelletizing machine,PE granulation machine,PE granulating machine,PE granulator machine.
Model : CX513
Usage: this line machine is maily designed for masterbatch production. such like PP,PE,LLDPE/LDPE/HDPE ect. also can produce black masterbatch too.
Consist of machinesd: rubber kneader (banbury mixer),force feeding machine,extruder,cutting machine ,cooling machine ect.
Details instruction below :

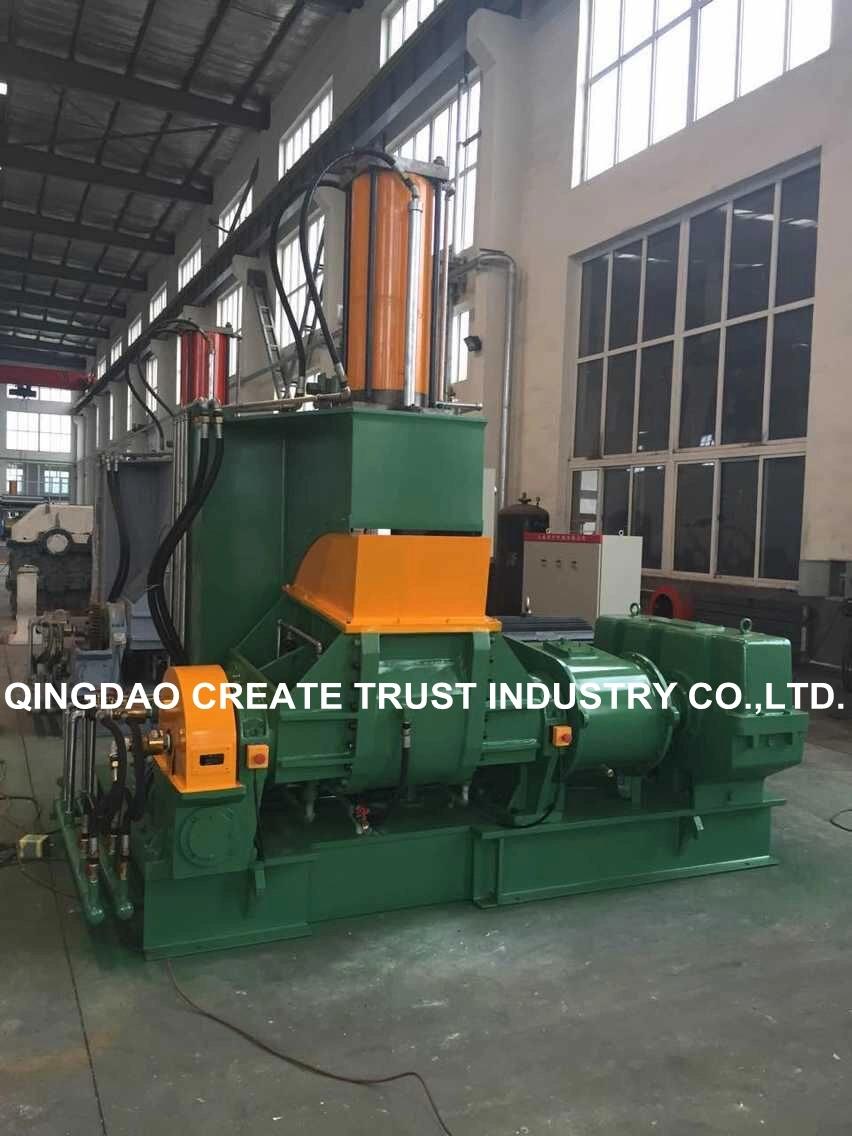

1- Rubber kneader (banbury mixer) : Specially designed for plastic mixing, with heating system. rotor is stellite welded,after polishing and quenching. this will make rotor and chamber high wear-resistant.
The reducer are hardened gear teeth,no noise,longlife us .

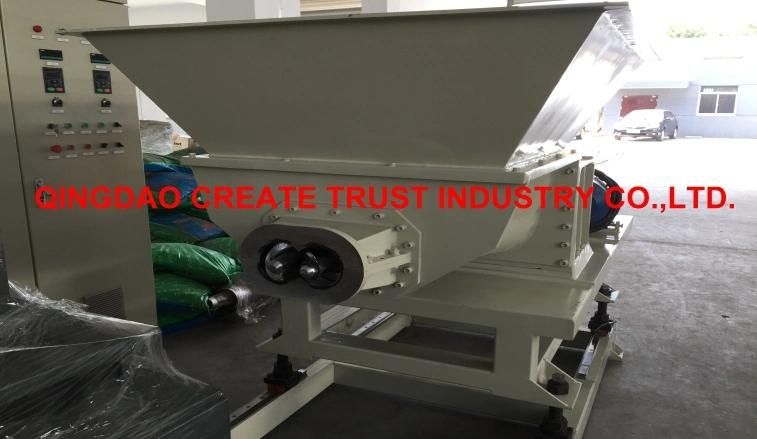

2- Force feeding device :
INVT frequency converter.
Double screw for material feeding,
Contaction with single screw is Harvard structure

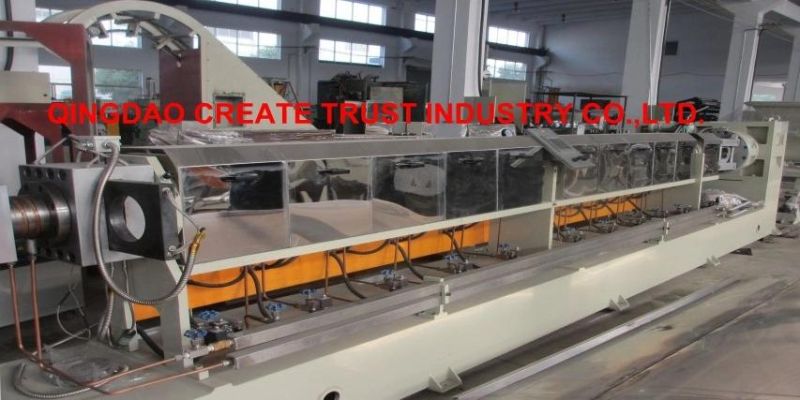

3- The extruder is the highest technology design now in this area :
Screw is made by nitriding steel (38CrMoALA), Surface is under nitrogen treatment, thickness ≥0.7mm, Hardness is HRC70. Cooling by water .
Barrel material is nitriding steel (38CrMoALA), Surface is under nitrogen treatment, thickness ≥0.7mm, Hardness is HRC70. Outer with stainless steel cover . Heating of barrel is made by Cast aluminum heater.
4- Air cooling mould surface hot cutting pelletizer.
All material for water bank,pump and pipes are made by stainless steel. Pipes with cover to protect and easy maintaince
Hydraulic screen changer : fixed between the barrel and head,which can strainer the impurity during working, sametime each exchanged and clean.
The Interlock Control System: we use intelligent instrument,PID parameter setting and double channel. The head of extruder with testing device for temperature and pressure. All the data will be shown and protection the temperature and pressure.
5- The electric parts we used is DELIXI brand,contactor is from SIMENS.
The designed of this line is now best in China, if you are interested in masterbatch production,please contact us , we will send you more details instruction by email.
