Roma Corrugated Plastic Sheets Tiles 40mm High Pitch PVC Roof Shingles Extruder Machine

Jiangsu Acemien Machinery Co., Ltd.
  • Product Type:PVC Board
  • Board Layers:Multilayer
  • Screw No.:Double-screw
  • Automation:Automatic
  • Computerized:Computerized
  • Certification:CE, ISO9001:2008, UL, QS, GMP

Base Info

  • Model NO.:ACEMIEN-1050
  • Customized:Customized
  • Condition:New
  • Transport Package:Plastic Film Package and Loaded Into The Container
  • Specification:28m*5m*5m
  • Trademark:Acemien
  • Origin:Jiangsu Province
  • HS Code:84772090
  • Production Capacity:1000 Sets,Year

Description

Basic Info.

Model NO. ACEMIEN-1050 Customized Customized Condition New Transport Package Plastic Film Package and Loaded Into The Container Specification 28m*5m*5m Trademark Acemien Origin Jiangsu Province HS Code 84772090 Production Capacity 1000 Sets/Year

Product Description

Roma Corrugated Plastic Sheets Tiles 40mm High Pitch Pvc Roof Shingles extruder machine
The Roma Corrugated Plastic Sheets Tiles 40mm High Pitch Pvc Roof Shingles extruder machine is designed professional to produce the roofing sheet with trapezoidal U panel profile or the corrugated wave profile roma roof tile PVC roma roof tile plastic extruder machine line. This Roma Corrugated Plastic Sheets Tiles 40mm High Pitch Pvc Roof Shingles extruder machine can produce both doule layer sheet or single layers sheets. If you need the double layers sheet, then you can add one SJ 65 extruder. So the roma roof tile PVC roma roof tile plastic extruder machine line is just with one SJ80/156 extruder.
Below are some pictures of the Roma Corrugated Plastic Sheets Tiles 40mm High Pitch Pvc Roof Shingles extruder machine for your reference:

Roma Corrugated Plastic Sheets Tiles 40mm High Pitch PVC Roof Shingles Extruder Machine

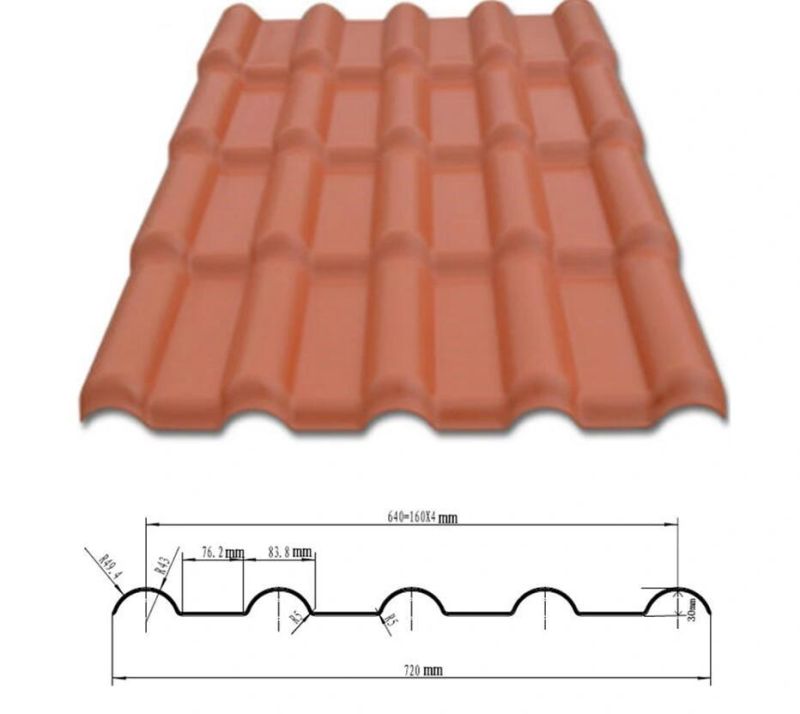

roma roof tile Roma Corrugated Plastic Sheets Tiles 40mm High Pitch Pvc Roof Shingles extruder machine profile specification is as below, for your reference, If you need different sizes of the profile, such as the pitch height, the pitch width, and pitch distance, you can let us know, so that we can make the drawing for you, also you can delivery your sample to us, then our engineer can make the drawing according to your samples.



 For the Roma Corrugated Plastic Sheets Tiles 40mm High Pitch Pvc Roof Shingles extruder machine, its working process as below:

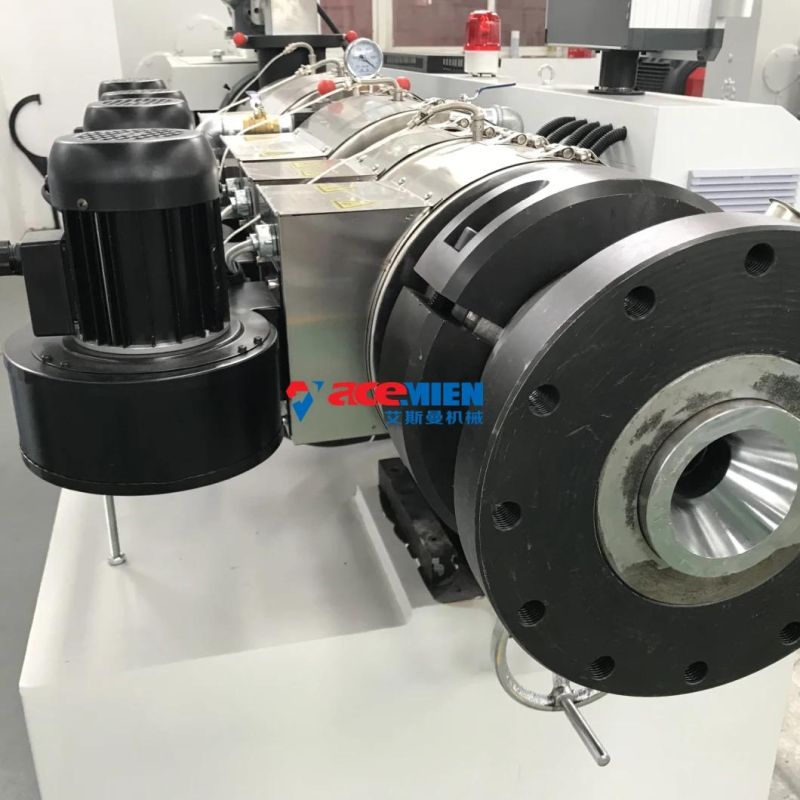

Screw loader for the SJ 80, and main SJ80 extruder, which is 55KW, 3 Phrase, Siemens motor. Double screw extruder. SJZ 80/156 conical twin-screw extruder(PVC).
Roma Corrugated Plastic Sheets Tiles 40mm High Pitch PVC Roof Shingles Extruder Machine

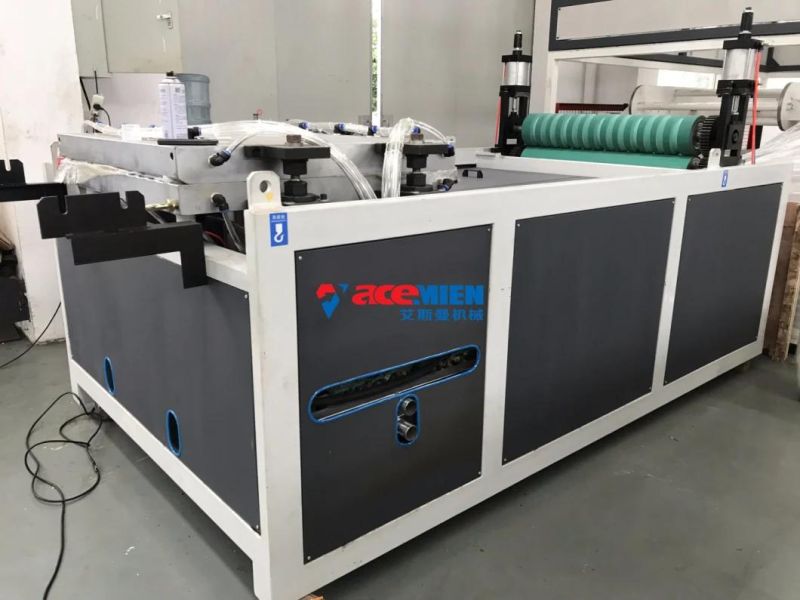

The Roma Corrugated Plastic Sheets Tiles 40mm High Pitch Pvc Roof Shingles extruder machine Extrusion mould Calibration mould and trimming device.
The specifications is as below:
Flat extrusion mould:
Mould type: clothes rack
Material of die-head: 5CrNiMo steel
Effective width of mould lip: 1100mm,1300mm
Adjusting arrange of mould thickness: 1-4mm
Heating power of each zone: 5KW×7sets
Heater: stainless steel stick Polishing precision of mould lip flow plane: 0.015-0.02(um), others: 0.02-0.03(um)Electroplate: mould flow plane treatment by hard chrome plating, thickness 0.03-0.04mm, hardness: 60-65RocKWellc, surface treatment by chrome plating at thickness: 0.01-0.02mm
Method of material input: central square opening input
Method of Installation: flat extrusion install

Roma Corrugated Plastic Sheets Tiles 40mm High Pitch PVC Roof Shingles Extruder Machine
The Roma Corrugated Plastic Sheets Tiles 40mm High Pitch Pvc Roof Shingles extruder machine is as below:
Quality of blade: 2pcs
Material of blade: quality alloy steel
Width can be adjustable
Material:45#steel,treatment by hard chrome plating, polishing and quenching
Hardness of chrome plating: 0.04mm, degree of finish:0.8,
Length:1000mm
Width:1250mm
Rise and drop method of mould: pneumatic
Quantity of cylinder:4sets
Fine adjustment method: manual
Cooling water:5-6 ton/hour

Quality of blade: 2pcs
Material of blade: quality alloy steel
Width can be adjustable
Material:45#steel,treatment by hard chrome plating, polishing and quenching
Hardness of chrome plating: 0.04mm, degree of finish:0.8,
Length:1000mm
Width:1250mm
Rise and drop method of mould: pneumatic
Quantity of cylinder:4sets
Fine adjustment method: manual
Cooling water:5-6 ton/hour

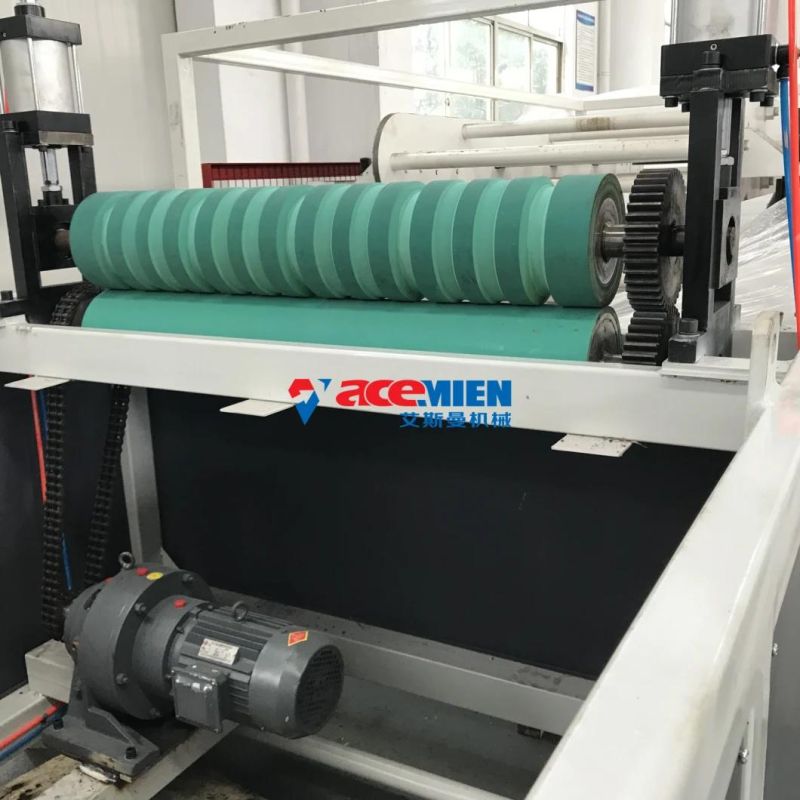

The haul off Unit:
Driving method: Adopt ABB frequency inverter control,
Speed:0.3-3m/min
Haul off roller material: Neoprene CR
Rise and drop method of mould: pneumatic
Fine adjustment method: manual

Roma Corrugated Plastic Sheets Tiles 40mm High Pitch PVC Roof Shingles Extruder Machine

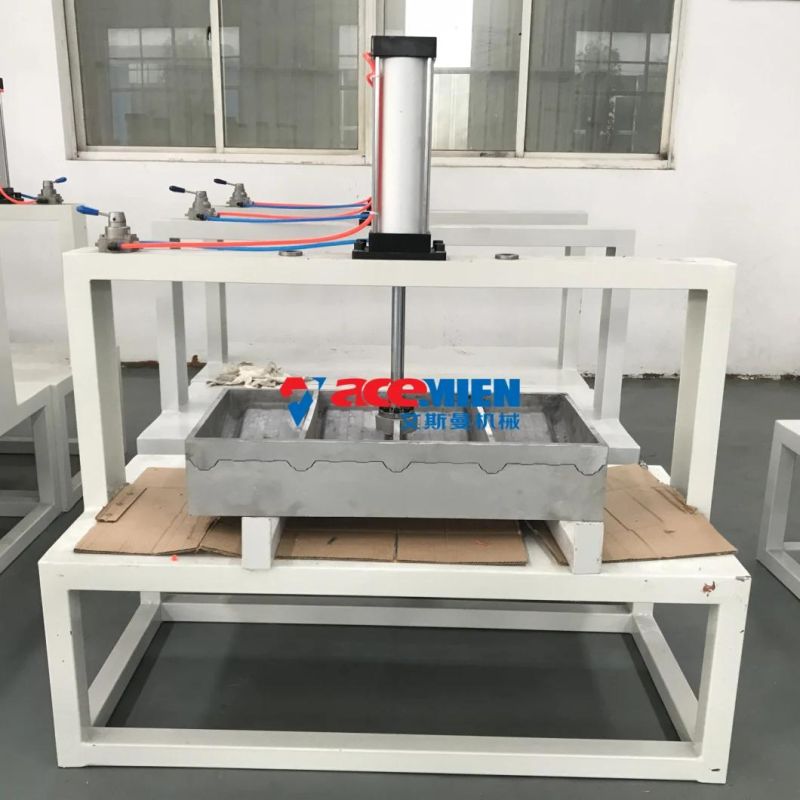

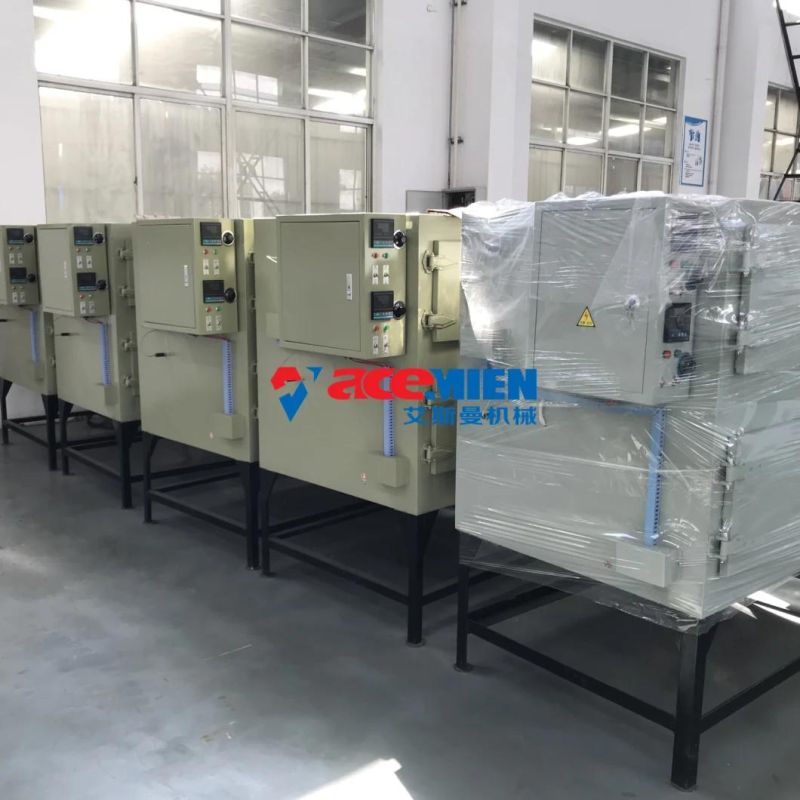

There are auxiliary equipments for the also Roma Corrugated Plastic Sheets Tiles 40mm High Pitch Pvc Roof Shingles extruder machine, The oven for ridge cap forming, the press machine for ridge cap forming and related molds, the Pulverizer to recyce the roofing sheets.
Roma Corrugated Plastic Sheets Tiles 40mm High Pitch PVC Roof Shingles Extruder Machine
Roma Corrugated Plastic Sheets Tiles 40mm High Pitch PVC Roof Shingles Extruder Machine

Some customers are wondering the raw material of the Roma Corrugated Plastic Sheets Tiles 40mm High Pitch Pvc Roof Shingles extruder machine, we can offer the raw material details for your reference: PVC powder, CaCO3, CPE, PE-WAX, Stearic acid , Compound stabilizer ,ACR, paraffin.
About the price of the raw material, we can offer you a list, if you need.

And more, we have experienced engineers who are working on machine insatalltion and raw material mixing, so that can help you to produce the perfect roofing sheet once the  Single-layer Corrugated PVC Roof Tile Production Line reach your factory.
