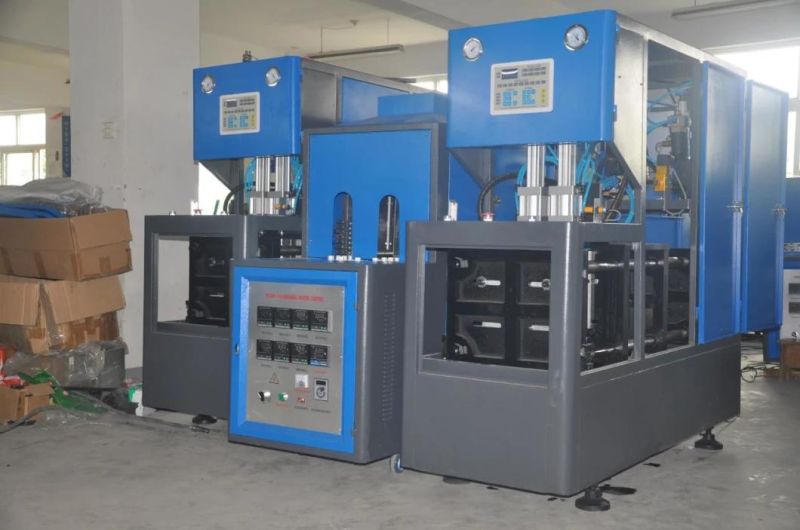

0.3-2.0 L Pet Bottle Molding Blower

Shenzhen Shine Dew Technology Co., Ltd.
  • Type：Injection Blow Molding Machine
  • Raw Material：PET
  • Making Method of Parison：Injection Blowing
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008, QS, UL

Base Info

  • Model NO.：SD -8Y
  • Capacity：1800 Bottles Per Hour
  • Bottle Volume：2 L Max
  • Number of Cavity：2
  • Power：1.75kw
  • Pet Bottle：Blower
  • Transport Package：Wooden Case with Tray
  • Specification：CE, UL, RoHS
  • Trademark：Shen Zhen Shine Dew Water
  • Origin：Shen Zhen Chine
  • HS Code：84773000
  • Production Capacity：1000 Sets Per Year

Description

It emModelSD-8YSD-A4Re markTypeAdaptation costumerSemi-automaticAutomatic
 Production CapacityDepend on design1200-1800 PCS  per hour3200-4200 PCS per hour
 BottleMax of bottle volume2000ML2000ML
 MaterialPETPET
 mouldNumber of cavity2 cacities4 cavities
 Main machine powerElectrical source power380V 3 phase 50HZ380V 3 phase 50HZ
 Rated power1.75KW30KW
 Air sourceLP air compressor/2.0m3/10Mpa*1set
 HP air compressor1.2m3/min 30Kg1.2m3/30Mpa*3set
 Air dryer21.0m3/min 30Kg2.0m3/30Mpa*1set
 SizeL*W*H1600*600*1610mm4200*1800*2000mm
 Weight500kg4200kg
 Blowing cylinderFESTOGermanyGermany
 ValveFESTOGermanyGermany
 CylinderSMCJapanJapan
 PLCLGSouth KoreaSouth Korea
 HMI SCREENLGSouth KoreaSouth Korea
 SwitchOMRONJapanJapan
